LPOD C-/Ku-Band Outdoor Amplifier/Block Up Converter
Ethernet Management
4.5.5.4.2

Status | Statistics

The 'Status | Statistics' page (Figure 4-11) provides the user with all unread (stored) statistics,
and provides the means to configure how statistics are handled and displayed by the LPOD.
Unread Storage Statistics: ###
This read-only scrollable window displays the unread stored statistics log in sequential, date-
stamped format. A running tally of the number of unread stored statistics is displayed in the
window header. The unit returns and displays the five oldest stored statistics; all events that are
read from the log are also automatically removed from the log.
The user has the ability to manage the Unread Stored Statistics window as follows:
•
Read Next Five Statistics: Unit returns the oldest five unread stored statistics which
have not yet been read in the log. If there are less than five events to be retrieved, the
remaining positions are padded with zeros. If there are no new events, the counter in the
header reads 000.
•
Initialize Statistics Pointer: Resets the internal pointer to allow queries to start at the
beginning of the statistics log.
Once the statistics viewing selection has been made, click [Submit] to execute the choice – the
window will update according to the selection made.
Statistics Configuration
•
Statistics Logging: Using the drop-down menu, select either Enable or Disable to set the
Statistics Logging function.
•
Statistics Interval: Enter the interval, in minutes, at which statistics are logged. Minimum
resolution is 1 minute (001); maximum is 99 minutes (099). Default is 90 minutes (090).

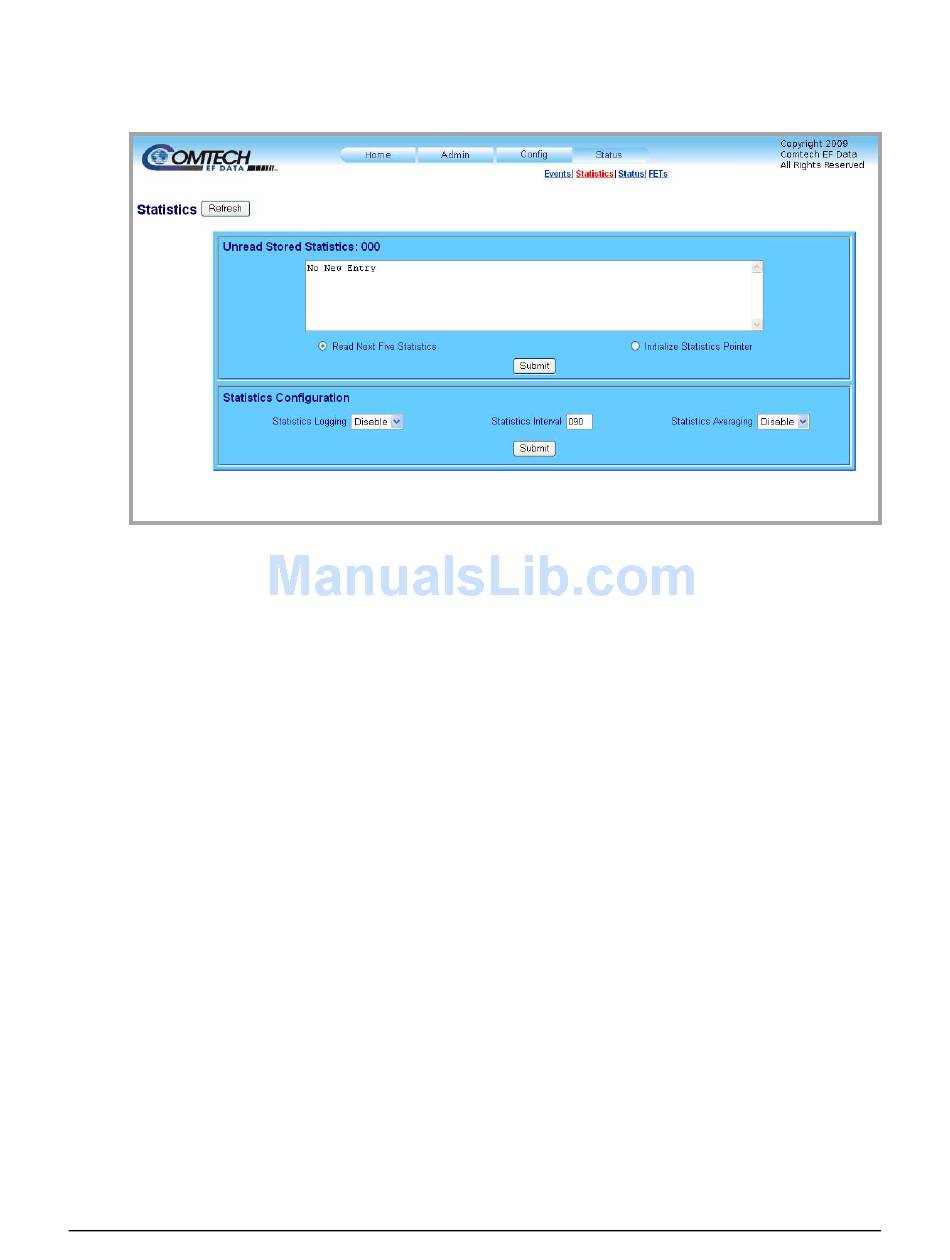

Figure 4-11. Status | Statistics page

4–23
Revision 3
MN-LPOD
