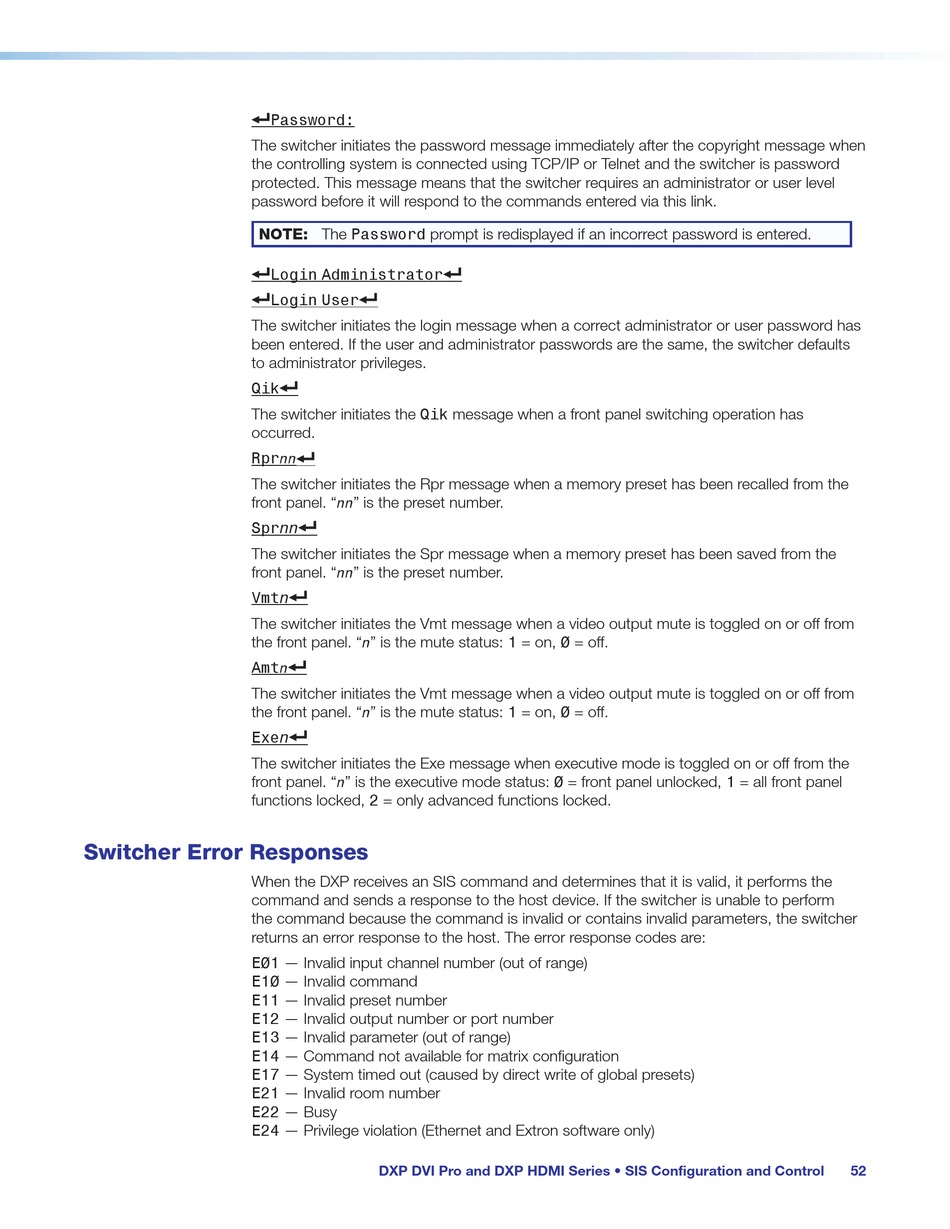

The switcher initiates the password message immediately after the copyright message when
the controlling system is connected using TCP/IP or Telnet and the switcher is password
protected. This message means that the switcher requires an administrator or user level
password before it will respond to the commands entered via this link.
NOTE: The Password prompt is redisplayed if an incorrect password is entered.
]
]
The switcher initiates the login message when a correct administrator or user password has
been entered. If the user and administrator passwords are the same, the switcher defaults
to administrator privileges.
Qik
The switcher initiates the Qik message when a front panel switching operation has
occurred.
Rpr
The switcher initiates the Rpr message when a memory preset has been recalled from the
front panel. "
Sprnn
The switcher initiates the Spr message when a memory preset has been saved from the
front panel. "
Vmtn
The switcher initiates the Vmt message when a video output mute is toggled on or off from
the front panel. "
Amt
The switcher initiates the Vmt message when a video output mute is toggled on or off from
the front panel. "
Exen
The switcher initiates the Exe message when executive mode is toggled on or off from the
front panel. "
functions locked, 2 = only advanced functions locked.

Switcher Error Responses

When the DXP receives an SIS command and determines that it is valid, it performs the
command and sends a response to the host device. If the switcher is unable to perform
the command because the command is invalid or contains invalid parameters, the switcher
returns an error response to the host. The error response codes are:
E01 — Invalid input channel number (out of range)
E10 — Invalid command
E11 — Invalid preset number
E12 — Invalid output number or port number
E13 — Invalid parameter (out of range)
E14 — Command not available for matrix configuration
E17 — System timed out (caused by direct write of global presets)
E21 — Invalid room number
E22 — Busy
E24 — Privilege violation (Ethernet and Extron software only)
Password:
]
Login Administrator
]
Login User
]
]
nn
" is the preset number.
nn
]
" is the preset number.
nn
]
" is the mute status: 1 = on, 0 = off.
n
]
n
" is the mute status: 1 = on, 0 = off.
n
]
" is the executive mode status: 0 = front panel unlocked, 1 = all front panel
n
DXP DVI Pro and DXP HDMI Series • SIS Configuration and Control 52
