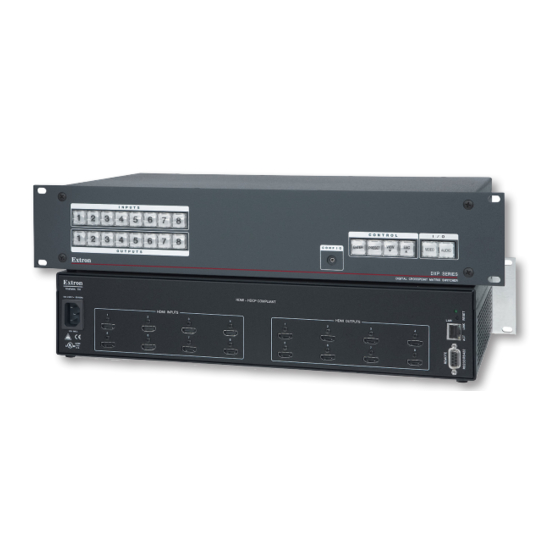

Extron electronics DXP DVI Pro Setup Manual

Extron dvi and hdmi matrix switchers setup guide
Hide thumbs Also See for DXP DVI Pro:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
DXP DVI Pro
DXP HDMI
DVI and HDMI
Matrix Switchers
Setup Guide
Setup Guide
Matrix Switchers
68-1370-50 Rev. C
03 12

Advertisement

Table of Contents
loading

Related Manuals for Extron electronics DXP DVI Pro

Summary of Contents for Extron electronics DXP DVI Pro

  • Page 1 Setup Guide Setup Guide Matrix Switchers DXP DVI Pro DXP HDMI DVI and HDMI Matrix Switchers 68-1370-50 Rev. C 03 12...
  • Page 2 Safety Instructions • English Warning Power sources • This equipment should be operated only from the power source indicated This symbol is intended to alert the user of important on the product. This equipment is intended to be used with a main power system with a operating and maintenance (servicing) instructions in grounded (neutral) conductor.
  • Page 3 安全须知 • 中文 警告 电源 • 该 设 备 只 能 使 用 产 品 上 标 明 的 电 源 。 设 备 这个符号提示用户该设备用户手册中 必 须 使 用 有 地 线 的 供 电 系 统 供 电 。 第 三 条 线 有重要的操作和维护说明。...
  • Page 4 Conventions Used in this Guide In this user guide, the following are used: CAUTION: A caution indicates a potential hazard to equipment or data. NOTE: A note draws attention to important information. TIP: A tip provides a suggestion to make working with the application easier.

  • Page 5: Table Of Contents

    Locking and Unlocking the Configure the DXP .....38 Front Panel (Executive Modes) ........16 Viewing Ties (and Muting Outputs) ........18 Selecting the RS-232/RS-422 Port Protocol and Baud Rate (Rear Panel) ..........19 DXP DVI Pro and DXP HDMI Series • Contents v...
  • Page 6 DXP DVI Pro and DXP HDMI Series • Contents...

  • Page 7: Introduction

    HTML pages, which you can use to operate the switcher. The terms “DXP,“ “switcher,” and “DXP switcher” are used interchangeably in this guide to refer to all DXP models. “DXP DVI Pro” refers to the four DVI models and “DXP HDMI” refers to the four HDMI models.

  • Page 8: Application Diagram Examples

    The DXP DVI Pro and DXP HDMI series all provide easy integration in applications that require reliable DVI or HDMI signal routing. (A "DVI Pro" signal is HDCP-compliant; a standard DVI signal is not.) They include several convenience features common to Extron matrix switchers such as the QuickSwitch Front Panel Controller (QS-FPC ™...
  • Page 9 Remote User and Administration Control Document Camera Game Console Media PC Server HD Satellite Receiver FULL HIGH DEFINITION 1080P VIDEO OUTPUT HD-DVD Player Blu-ray Player Figure 2. Typical DXP HDMI Application DXP DVI Pro and DXP HDMI Series • Introduction...
  • Page 10 DXP DVI Pro and DXP HDMI Series • Introduction...

  • Page 11: Setup

    "EDID (Extended Display Identification Data)" in the "Remote Control" section, or see the control program help file and the DXP DVI Pro and DXP HDMI User Guide for details. Create ties as desired (see "Creating a Tie" in the "Operations"...

  • Page 12: Rear Panels And Connections

    The rear panels of the other DXP models are identical to these models except for the number of inputs and outputs (see "About the DXP DVI Pro and DXP HDMI Series Matrix Switchers" in the "Introduction" section for the available matrix sizes).
  • Page 13 LockIt lacing bracket as shown. While holding the connector securely against the lacing bracket, use pliers or similar tools to tighten the tie wrap, then remove any excess length. DXP DVI Pro and DXP HDMI Series • Setup...
  • Page 14 T568B at the other (Tx and Rx pairs is called a "straight-through" cable, because reversed) is a "crossover" cable. no pin or pair assignments are swapped. Figure 6. RJ-45 Connector and Pinout Tables DXP DVI Pro and DXP HDMI Series • Setup...
  • Page 15 9 seconds, then release it and press it again momentarily to restore the switcher to the default factory conditions. For more details on these reset modes, see the DXP DVI Pro and DXP HDMI User Guide, available on the provided Extron Product Software DVD or the Extron website at www.extron.com.

  • Page 16: Front Panel Config Port

    1 stop bit No parity • No flow control • RS-232 Configuration Port CONTROL AUDIO ENTER PRESET VIEW VIDEO CONFIG DXP SERIES DIGITAL MATRIX SWITCHER Figure 8. Front Panel Config Port DXP DVI Pro and DXP HDMI Series • Setup...
  • Page 17 9-pin D Connection TRS Plug Pin 2 Computer Rx line Pin 3 Computer Tx line Ring Pin 5 Computer signal ground Sleeve Figure 9. 2.5 mm Connector Cable for the Configuration Port DXP DVI Pro and DXP HDMI Series • Setup...
  • Page 18 DXP DVI Pro and DXP HDMI Series • Introduction...

  • Page 19: Operation

    This section describes the DXP front panel controls and the procedures to configure and begin to operate the DXP switchers. For additional operations and more details, see the DXP DVI Pro and DXP HDMI Series User Guide, available from the provided Extron software disc or from the Extron website at www.extron.com.
  • Page 20 Audio button — The Audio button has one primary function: Selects and deselects audio for a configuration that is being created or viewed. It lights red to indicate that audio is available for configuring or for viewing. DXP DVI Pro and DXP HDMI Series • Operation...

  • Page 21: Operations

    Red indicates an audio-only tie. ENTER Green indicates the need to confirm the change. Figure 13. Select an Output for the Tie Press and release the Enter button. All button indicators turn off. DXP DVI Pro and DXP HDMI Series • Operation...

  • Page 22: Saving Or Recalling A Preset

    Basic functions consist of: • Making ties • Saving and recalling presets • Changing lock modes • DXP DVI Pro and DXP HDMI Series • Operation...
  • Page 23 If the switcher is in lock mode 1, this procedure selects mode 2. • If the switcher is in lock mode 2, this procedure selects mode 1 (locks all switcher functions except selecting mode 2). DXP DVI Pro and DXP HDMI Series • Operation...

  • Page 24: Viewing Ties (And Muting Outputs)

    (amber for video and audio, green for video only, and red for audio only). Press an output button. The buttons for the tied input and all tied outputs light. Press the View button. All input and output buttons become unlit. DXP DVI Pro and DXP HDMI Series • Operation...

  • Page 25: Selecting The Rs-232/Rs-422 Port Protocol And Baud Rate (Rear Panel)

    The I/O button that continues flashing indicates the protocol as follows: Video — RS-232 Audio — RS-422 In this example, the port is set to RS-232 at 9600 baud. Figure 18. RS-232/RS-422 and Baud Rate Display Release the Control buttons. DXP DVI Pro and DXP HDMI Series • Operation...
  • Page 26 C O N T R O L VIEW VIDEO AUDIO ENTER PRESET Figure 19. RS-232/RS-422 and Baud Rate Selection Press and release an output button to exit the Serial Port Configuration mode. DXP DVI Pro and DXP HDMI Series • Operation...

  • Page 27: Remote Control

    If the switcher is password-protected, enter the appropriate password. If the password is accepted, the switcher responds with Login User or Login Administrator . If the password is not accepted, the Password prompt reappears. DXP DVI Pro and DXP HDMI Series • Remote Control...

  • Page 28: Connection Timeouts

    Each switcher response to an SIS command ends with a carriage return and a line feed (CR/LF = which signals the end of the response character string. A string is one or more characters. DXP DVI Pro and DXP HDMI Series • Remote Control...

  • Page 29: Edid (Extended Display Identification Data)

    2-channel audio (stereo) 8-channel audio AC-3 6-channel audio E-AC-3 8-channel audio 8-channel audio DTS-HD 8-channel audio AC-3 8-channel audio 8-channel audio • 2-channel audio consists of PCM, 2-channel audio (stereo). DXP DVI Pro and DXP HDMI Series • Remote Control...
  • Page 30 2-channel audio 1080p 852x480 Multi-channel audio 1080i 852x480 2-channel audio 1080p 1024x768 2-channel audio 1080p 1024x768 2-channel audio 1024x852 User assigned 1024x852 User assigned 1280x768 User assigned 1280x768 User assigned DXP DVI Pro and DXP HDMI Series • Remote Control...

  • Page 31: Command And Response Table For Sis Commands

    Command and Response Table for SIS Commands NOTE: The following table is a partial list of SIS commands. For a complete listing, see the DXP DVI Pro and DXP HDMI Series User Guide, "SIS Configuration and Control" section. ASCII Command...
  • Page 32 ASCII Command Response Command Function Additional Description (Host to Switcher) (Switcher to Host) Quick Multiple Tie Tie multiple inputs to multiple outputs, % ... Tie multiple inputs to multiple audio and video outputs Tie an Input to All Outputs Tie an input to all outputs, audio and Tie input to all outputs, audio and •...
  • Page 33 ASCII Command Response Command Function Additional Description (Host to Switcher) (Switcher to Host) Video and Audio Mute Video mute Mute output (video off). Video unmute Unmute output (video on). View individual output mute View video mute status for output : 0 = unmuted, 1 = muted Global Video mute Mute all video outputs.
  • Page 34 ASCII Command Response Command Function Additional Description (Host to Switcher) (Switcher to Host) Save and Recall Presets NOTE: If you try to recall a preset that is not saved, the matrix switcher responds with the error code E11 . X& X&] X&...
  • Page 35 ASCII Command Response Command Function Additional Description (Host to Switcher) (Switcher to Host) EDID (Extended Display Identification Data) Commands (Continued) X1(] Save output 1 EDID to user location Store the EDID of output 1 as user- EDID EdidS (User-assigned file 37–40) assigned EDID file = 37 –...
  • Page 36 ASCII Command Response Command Function Additional Description (Host to Switcher) (Switcher to Host) Information Requests (Continued) X2!] Query controller firmware version Example: The factory-installed controller firmware 1.23 version is 1.23 (sample value only). X1& Request system status • • • •...
  • Page 37 ASCII Command Response Command Function Additional Description (Host to Switcher) (Switcher to Host) IP Setup (Continued) EX3^ X3^] Set gateway IP address X3^] Read gateway IP address EX4^ X4^] Set DHCP on and off X4^] Read DHCP on/off status X5*] Configure current port timeout Pti0* X5*]...
  • Page 38 ASCII Command Response Command Function Additional Description (Host to Switcher) (Switcher to Host) Reset System reset to factory defaults Clear all ties and presets and reset unit to ZXXX factory default settings. NOTE: This command excludes IP settings such as IP address, subnet mask, and gateway address. It does not remove the file system. Absolute system reset Clear all ties and presets and reset unit to ZQQQ...

  • Page 39: Installing And Starting The Matrix Switchers Control Program

    The Extron software DVD window appears. Figure 20. Software Button on the Software DVD Window NOTE: If the DVD does not self-start, run Launch.exe from the disc. Click the Software tab. DXP DVI Pro and DXP HDMI Series • Remote Control...

  • Page 40: Starting The Program

    If you selected a Comm port, check the baud rate (shown in green above the ports list). If you need to change it, click the Baud button and double-click the desired baud rate option on the drop-down menu that opens. DXP DVI Pro and DXP HDMI Series • Remote Control...
  • Page 41 If the switcher is password protected, enter the administrator or user password in the Password field. Click Connect . The Matrix Switchers Control Program main window opens. Figure 24. Matrix Switchers Control Program Window DXP DVI Pro and DXP HDMI Series • Remote Control...

  • Page 42: Accessing The Html Pages

    2. Clear the Use a proxy server... check box. 3. Click OK . For details on operating the switcher via HTML pages, see the DXP DVI, DXP DVI Pro, and DXP HDMI Series User Guide, “HTML Operation” section. Open the web browser.
  • Page 43 If you want your password to be filled in every time you open the browser, select the Remember my password check box. The System Status HTML page opens. Figure 26. System Status Page (Start-up Page) DXP DVI Pro and DXP HDMI Series • Remote Control...

  • Page 44: Using The Web Pages To Configure The Dxp

    Passwords , Email Settings , and Firmware Upgrade . Figure 27. System Settings Page File Management page This page enables you to upload files to the server within the DXP and to manage them. DXP DVI Pro and DXP HDMI Series • Remote Control...

  • Page 45: Control Page

    • On the Presets sub-page, you can save and recall global presets. NOTE: For full details on using the web pages, see the DXP DVI Pro and DXP HDMI User Guide, available at www.extron.com. DXP DVI Pro and DXP HDMI Series • Remote Control...
