RS-232 Config port (front panel)
The Config port is an additional RS-232 connector, located on the front panel. A host device
can be connected to this port for serial RS-232 control only. Protocol for the port is the
same as for the rear panel Remote RS232/RS422 port: 9600 baud, 8 data bits, 1 stop bit,
no parity, and no flow control.
An optional 2.5 mm cable (Extron part number 70-335-01) can be used to connect the DXP
to your computer. Figure 9 shows the pin assignments for this cable.
1
6
6
9
9
5
9-pin D Connection
Pin 2 Computer Rx line
Pin 3 Computer Tx line
Pin 5 Computer signal ground

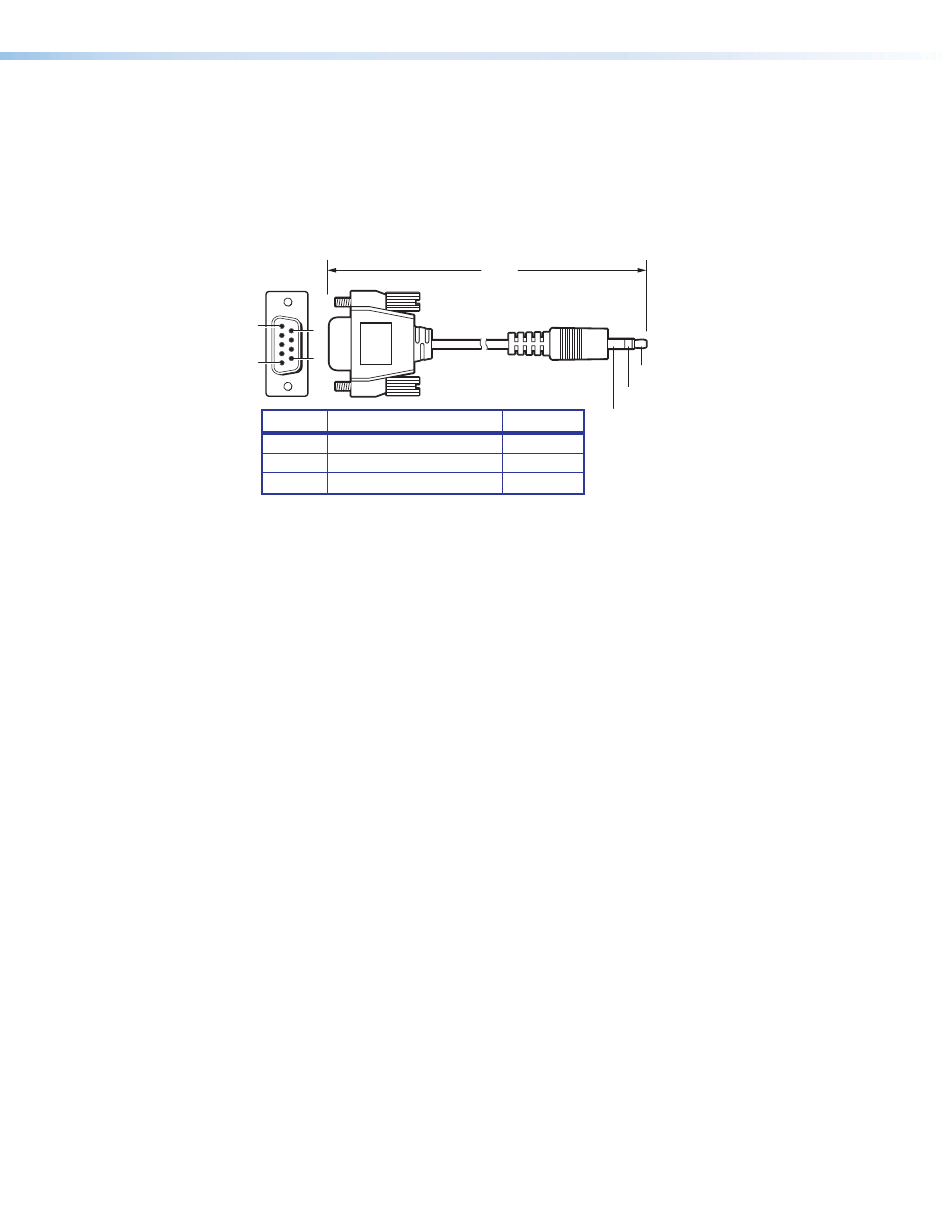

Figure 9. 2.5 mm Connector Cable for the Configuration Port
6 feet
(1.8 m)
Part #70-335-01
Ring
Sleeve (Gnd)
TRS Plug
Tip
Ring
Sleeve
