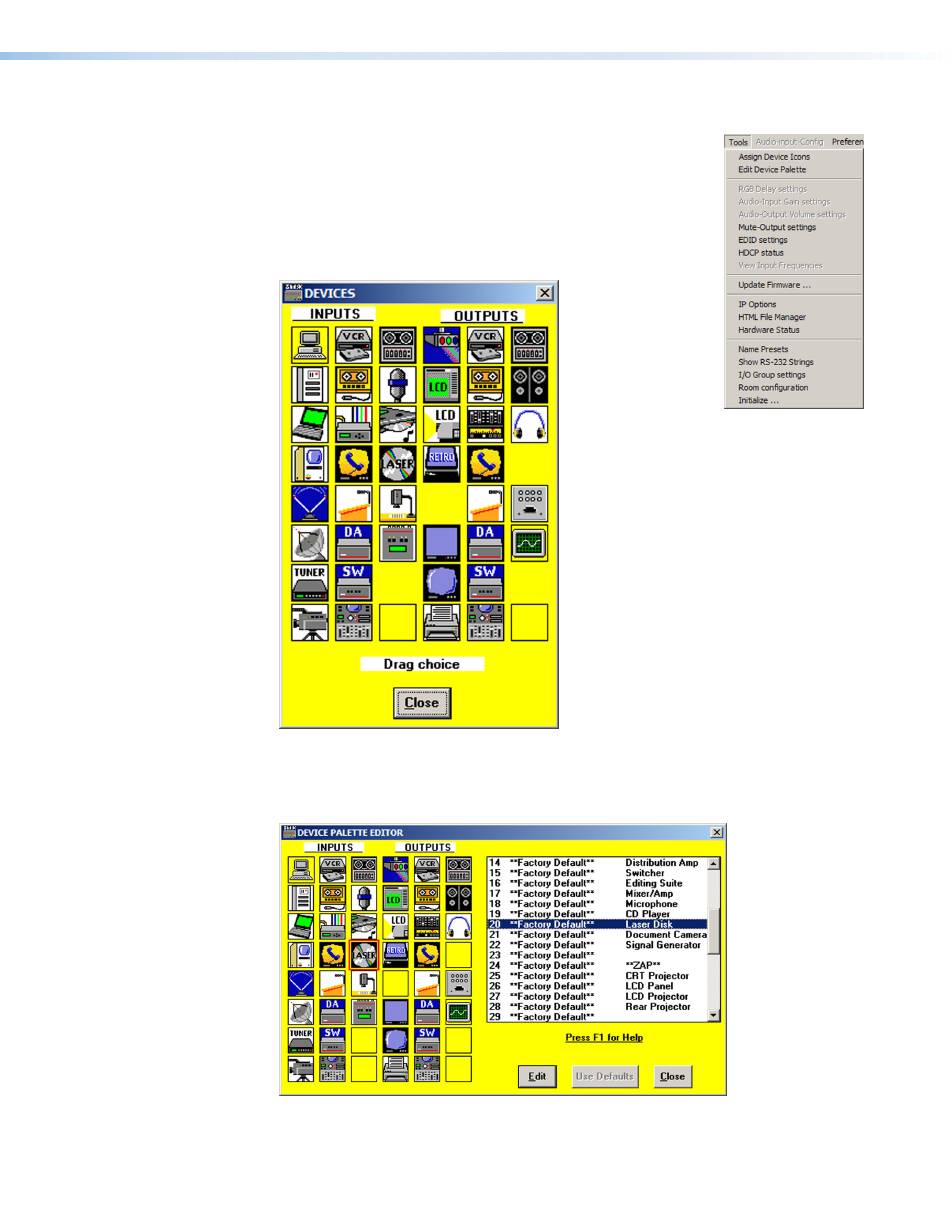

Tools menu
The Tools menu contains the following options. Grayed out
options are unavailable on your switcher.
• Assign Device Icons — Displays the complete set of
input and output device icons. You can drag any of these
icons to the input and output boxes. To remove an icon from
an input or output box, drag an empty square from this list to
the input or output box.
Figure 85. Devices Window
• Edit Device Palette — Allows you to add your own device icon graphics. For
instructions on using this editing window, press <F1> on your computer keyboard to
display a help page.
Figure 86. Device Palette Editor
DXP DVI Pro and DXP HDMI Series • Matrix Software 92
