4.5.4.4.4
Status | Events
Use this page to view with all pertinent information about stored events, and to define the TRP1000-
4450 alarm parameters that determine how those events are triggered.
Unread Stored Events
This read-only scrollable window displays the unread stored events log in sequential, date-
stamped format. A running tally of the number of unread stored events is displayed in the
window header. The unit returns and displays the five oldest stored events in the alarm log. All
events that are read from the log are also automatically removed from the log.
Manage the unread Stored Events window as follows:
Read Next Five Events – Select to display the next five unread stored events in the log.
Clear Events Log – Select to clear all stored events from the log.
Initialize Events Pointer – Select to reset the internal pointer to allow queries to start at the
beginning of the stored events log.
Click [Submit] to execute the choice – the window will update according to the selection made.
Ethernet-based Remote Product Management
TRP1000-4450 Troposcatter C-Band Outdoor Amplifier

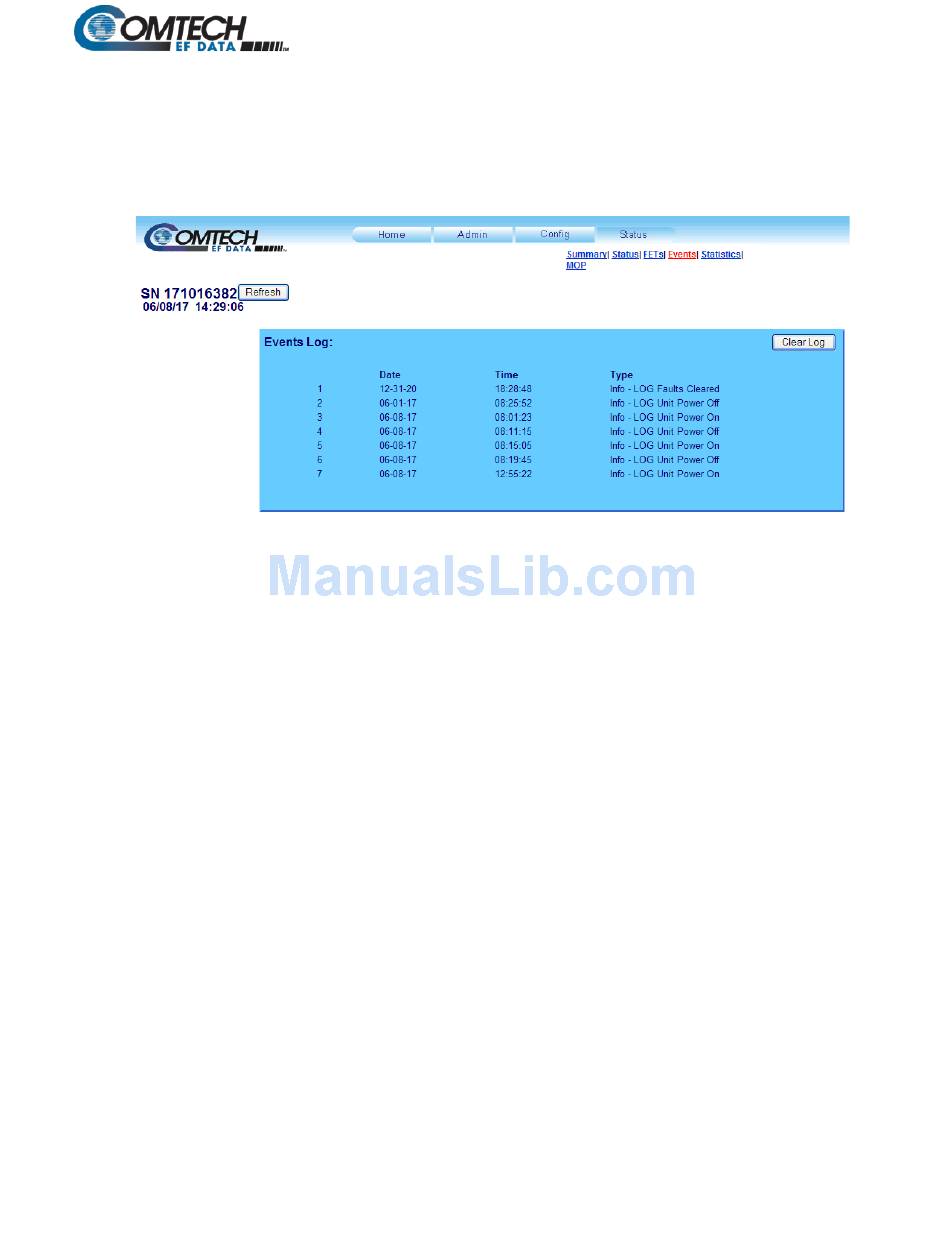

Figure 4-11. Status | Events Page
4–21
Revision 0
MN-TRP1000-OD
