2. Extract the firmware files from the archive file.
a. (If not already done with File Download > [Open]) Extract the firmware files from the
downloaded *.exe or *.zip archive file with the user-supplied utility program:
b. Double-click on the archive file name, and then follow the prompts provided by the user-
supplied utility program. Extract, at a minimum, three files:
•
The release notes PDF file.
•
FW-#######x.bin – Firmware file, where "XXXXXXX" is the firmware number, and
"x" denotes the firmware revision letter.
•
The CREFLASH FTP utility program file.
3. Confirm availability of the firmware files in the temporary folder.
There are several ways the user may view the contents of the temporary folder on a
Windows-based PC:
a. From the Windows Desktop:
•
Double-left-click the 'temp' folder saved to the Windows Desktop.
•
Use Windows Explorer to locate, and then double-left-click the 'temp' folder.
•
Use the 'Browse' window ([Start] > ...Run > [Browse]) to locate, and then double-
click the 'c:\temp' folder.
b. Using Command-line:
•
Type "cd c:\temp" at the Command-line prompt to change to the temporary directory
created earlier using Command-line.
•
Type "dir" to list the files extracted to the temporary directory from the downloaded
archive file.
The firmware files have been successfully downloaded and are now
available for transfer to the TRP1000-4450-OD.
Updating Firmware
TRP1000-4450 Troposcatter C-Band Outdoor Amplifier

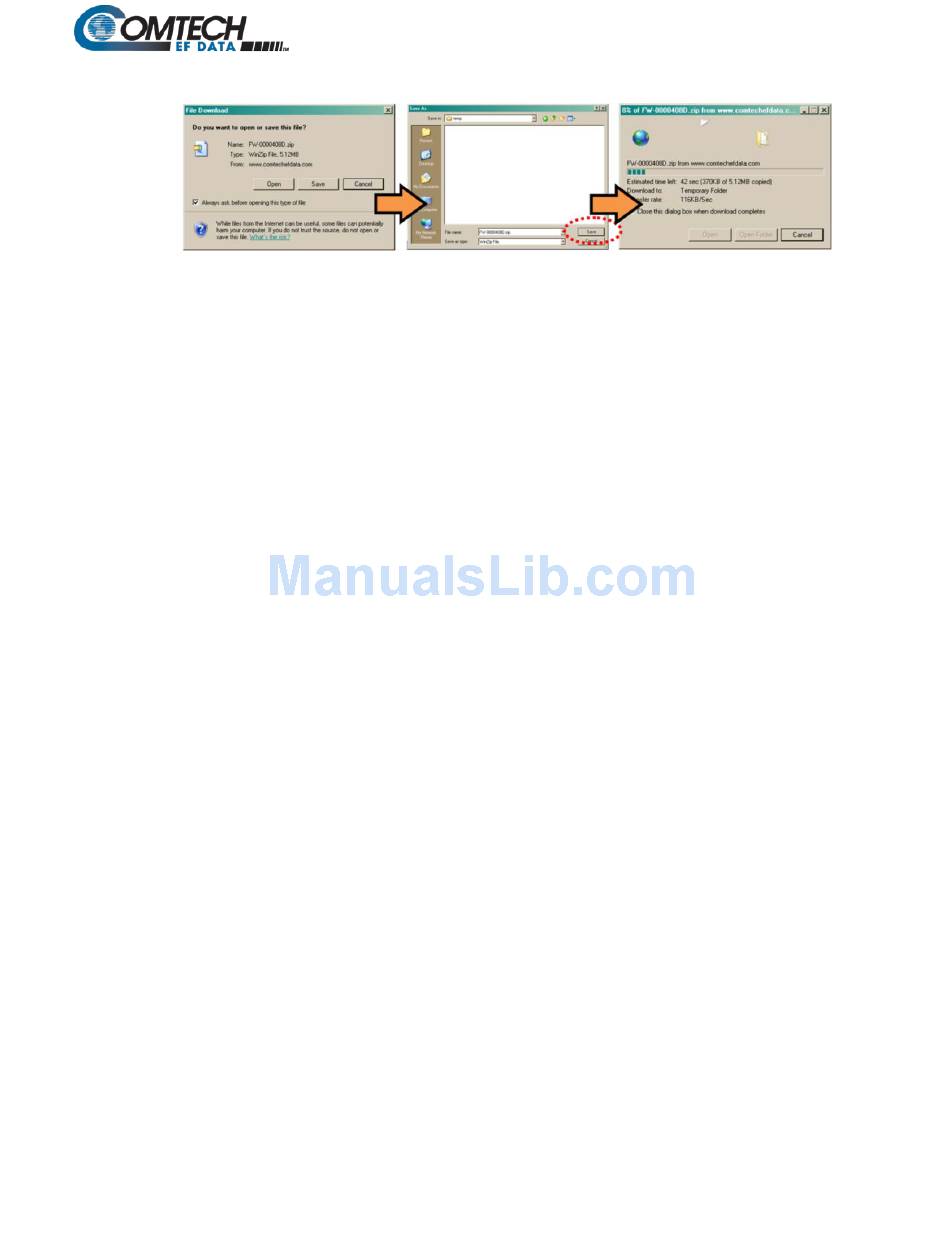

Figure 3-5. Download Firmware Archive File
3–7
Revision 0
MN-TRP1000-OD
