2.2
Interface Connectors
2.2.1
TX (RF Input) Connector 'J1 | TX IN' (Type N-F)
System Connections, Installation and Startup

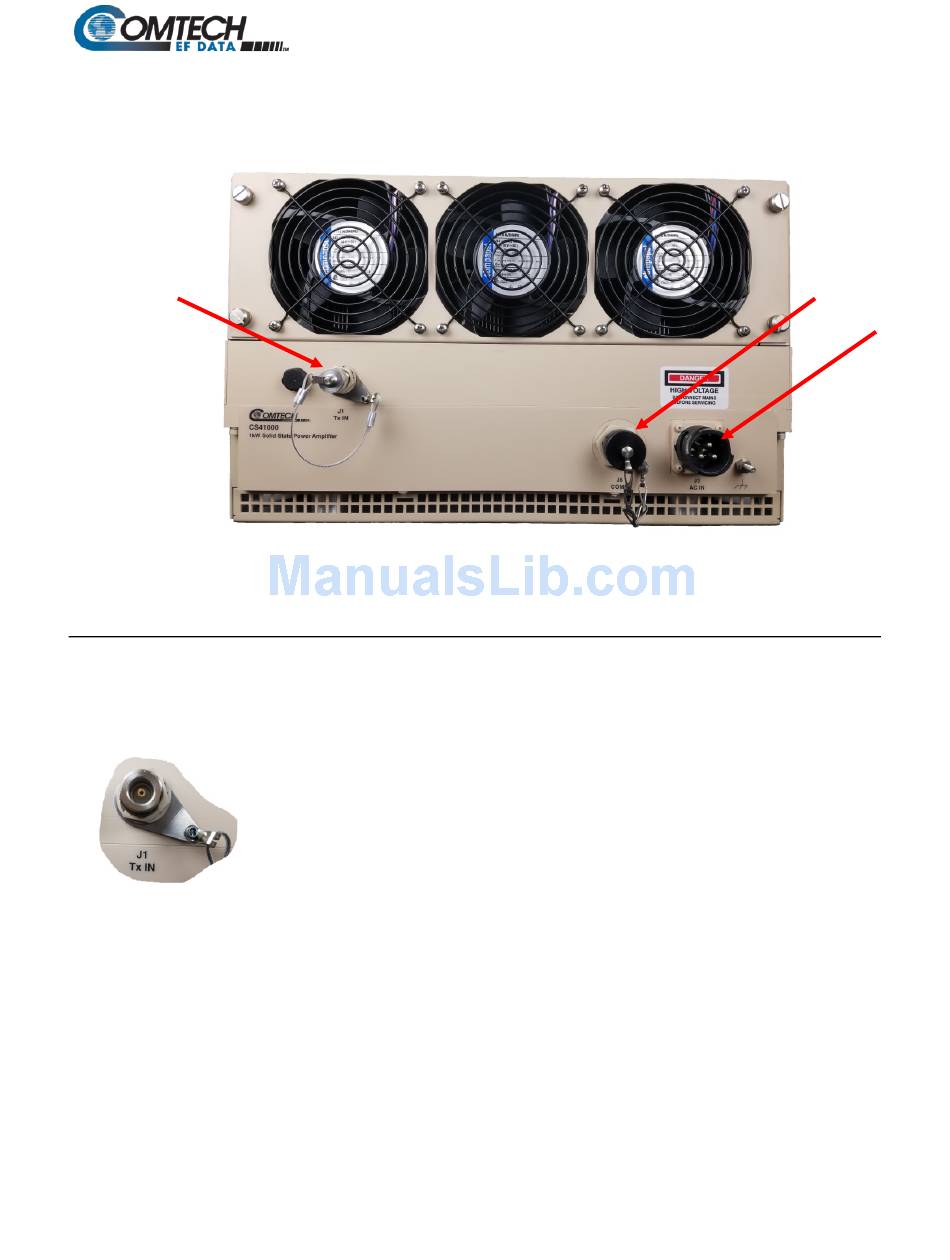

Figure 2-2. TRP-1000-4450-OD Interface Connectors - Back
The 'J1 | TX IN' (RF Input) connector is a 50Ω Type 'N' female connector. Typical
input levels (+0 dBm to ~ + 20 dBm) depend on desired output power. For
example, if the unit has a gain of 45dB, then an input level of +10 dBm will result
in an output of 55dBm. In general, RF input levels above those which result in
output saturation (>> Prated) should be avoided and, to prevent damge to the
TRP1000-4450, should never exceed +30 dBm (refer to Section 1.4.6).
TRP1000-4450 Troposcatter C-Band Outdoor Amplifier
2–2
Revision 0
