Accessories Installation
fi g
52
SUITABLE
POWER SUPPLY
+
-
fi g
53
V+
IN
V-
AUX
OPEN
STOP
CLOSE
OSC
fi g
54
SWIPE
PEDESTRIAN
COMMON
OUT2 +
OUT2 -
OUT1 N/C
OUT1 COMMON
OUT1 N/O
34
Elite® - Swing Gate Opener
OUT1 N/C
OUT1 COMMON
OUT1 N/O
STOP
CLOSE
OSC
SWIPE
PEDESTRIAN
COMMON
OUT2 +
OUT2 -
OUT1 N/C
OUT1 COMMON
OUT1 N/O
Owner Installation Instructions
Wiring Output1 And Output2
Outputs 1 and 2 are used to control a lock and a light.
Which output is to control which function and the way
it is controlled, is programmable.
If using these outputs make sure that the functions are
confi gured for correct operation prior to setting the
travel limits.
OUTPUT1 is a relay output with high current capability.
OUTPUT2 is used to activate an optional external relay
module (RO-1) which in turn is used to switch the load.
Fitting solenoid or magnetic locks

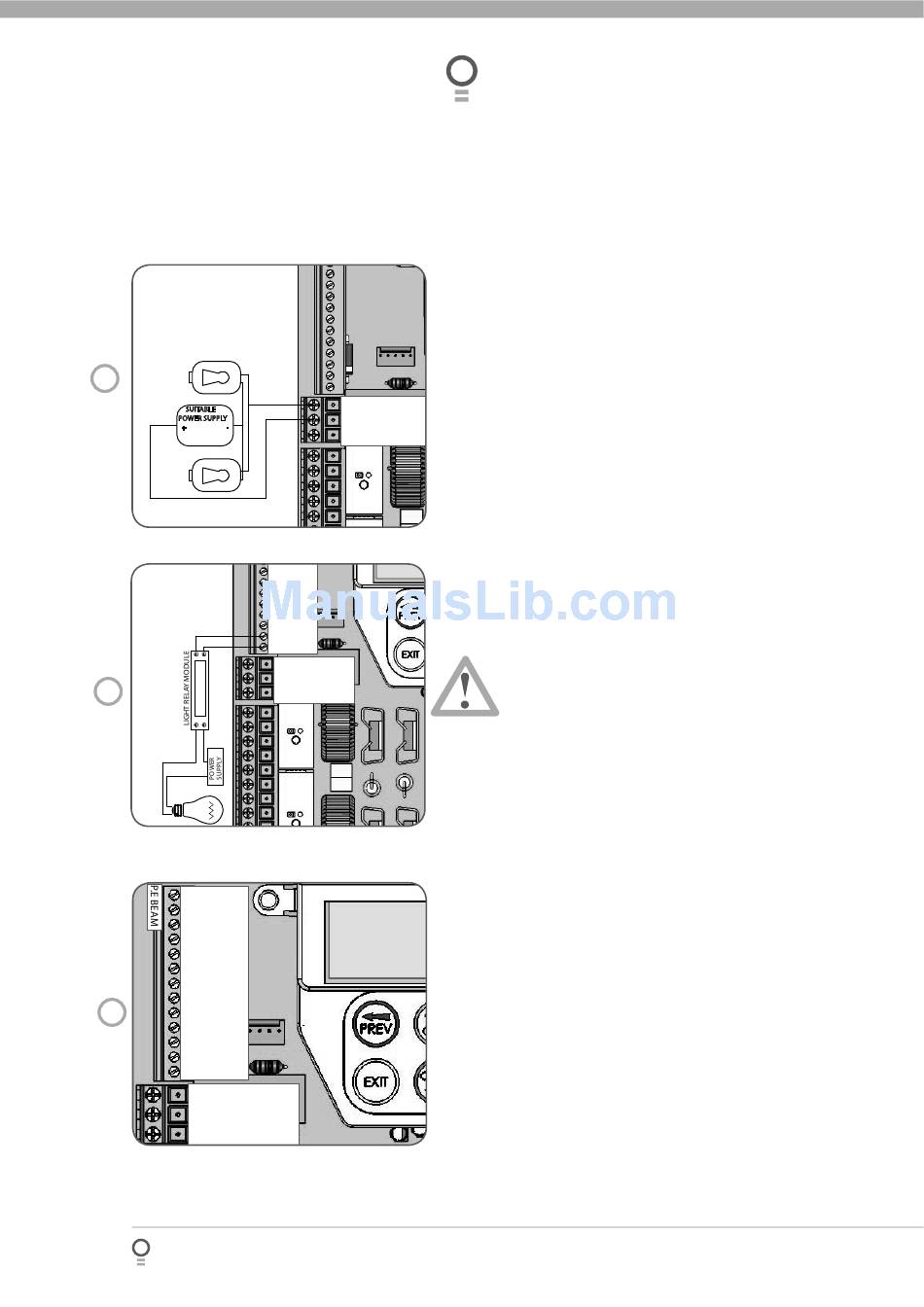

Install the lock mechanism on the gate as per the
manufacturers instructions. The wiring diagram on the
left is a representation of a typical lock with a bias for
normally closed contact (Fig. 52).
Fitting courtesy lights
An AC or DC courtesy light can be activated via an
output on the gate opener control board. Connect the
light as per the diagram on the left (Fig. 53).
WARNING: A qualifi ed electrician must perform
the installation where 240V AC power is used.
Wiring Control Inputs
The console switch inputs may be used for operating
the gate via any device that provides and switch contact
output.
AUX, OPN, STP, CLS, SWP, PED requires normally open
contact switches (Fig. 54). OPN and STP inputs can be
confi gured to take normally close contact switches.
