ACCESSORIES INSTALLATION

Fitting Photo Electric Beam
Locate the Photo Electric Beam (P.E.) in a strategic location in the
gateway. We recommend that the sensor is placed 150mm above
the floor level and as close as possible to the gate opening.

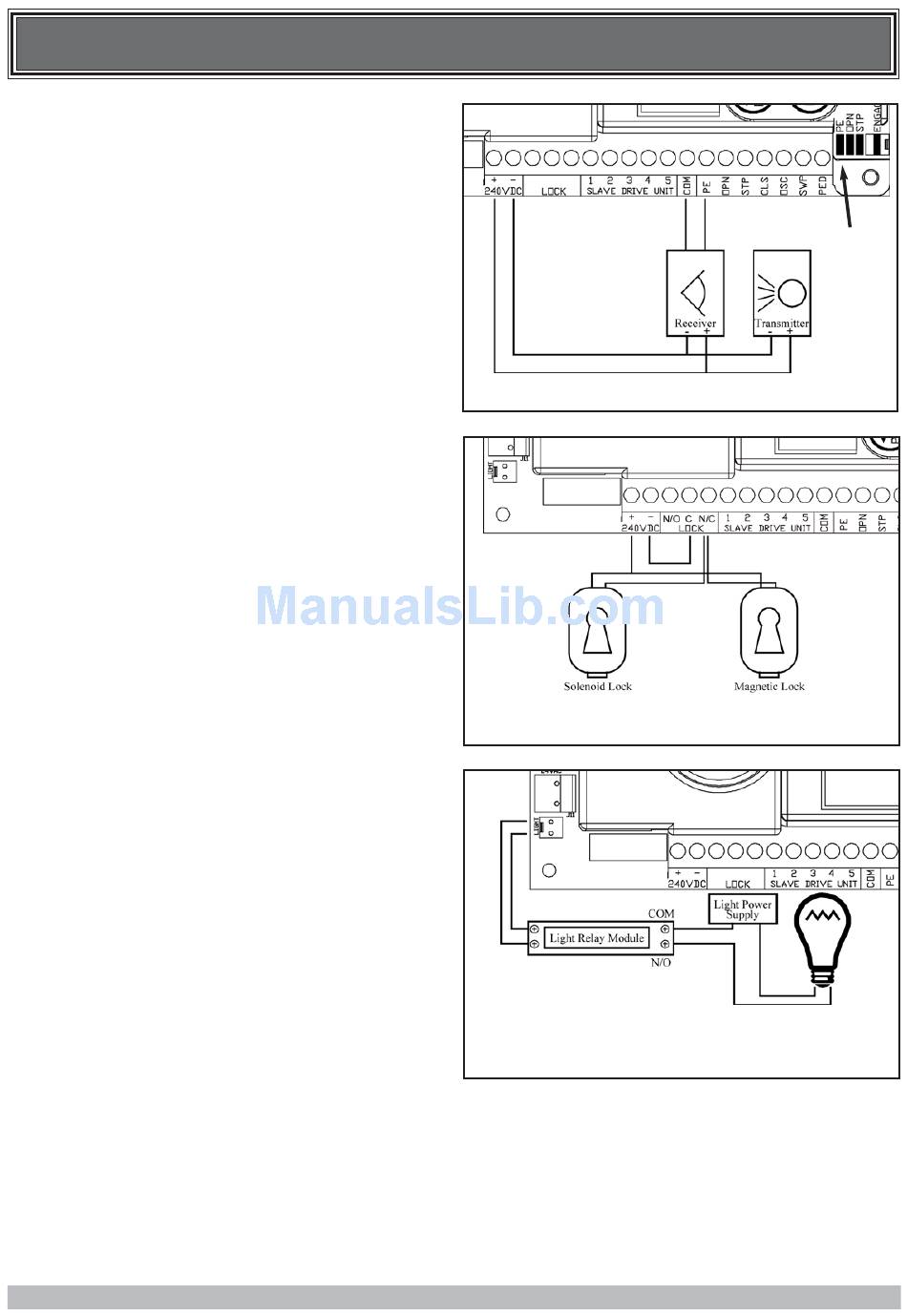

Remove the shunt from the P.E. input and connect as per the
wiring diagram at right. make sure that the sensors are correctly
Remove
P.E. Shunt
aligned as per the instruction manual. supplied with the P.E. Beam
kit. See Page 17 for set up of Auto-Close times.
Warning: When using Auto-Close mode and P.E. Beams the
gateway must be clear of all obstructions and persons at all
times. The location of the P.E. Beam and the manner in which
it is installed might not give safety protection at all times.
Check to make sure that the height of the sensor and type
used offers maximum protection possible.
Fitting Solenoid or Magnetic Locks
Install the lock mechanism on the gate as per the manufacturers
instructions. The wiring diagram at right is a representation of a
typical lock with a bias for normally closed contact.
See Page 18 for Lock Times set up.
Fitting Courtesy Lights
An AC or DC courtesy light can be switched on and off via an
output on the gate opener control board. Connect the light as per
the diagram at right. See Page 18 for Light Times set up.
Warning: A qualified electrician must perform the
installation where AC power is used.
