Battery Backup Installation
Connect the Battery Backup Kit
1.
Disconnect power to the DCB-05.
2.
Secure the SBY-3 Charger Board in the control box
with sticky pads (supplied with the battery charger
kit part number # 90188).
3.

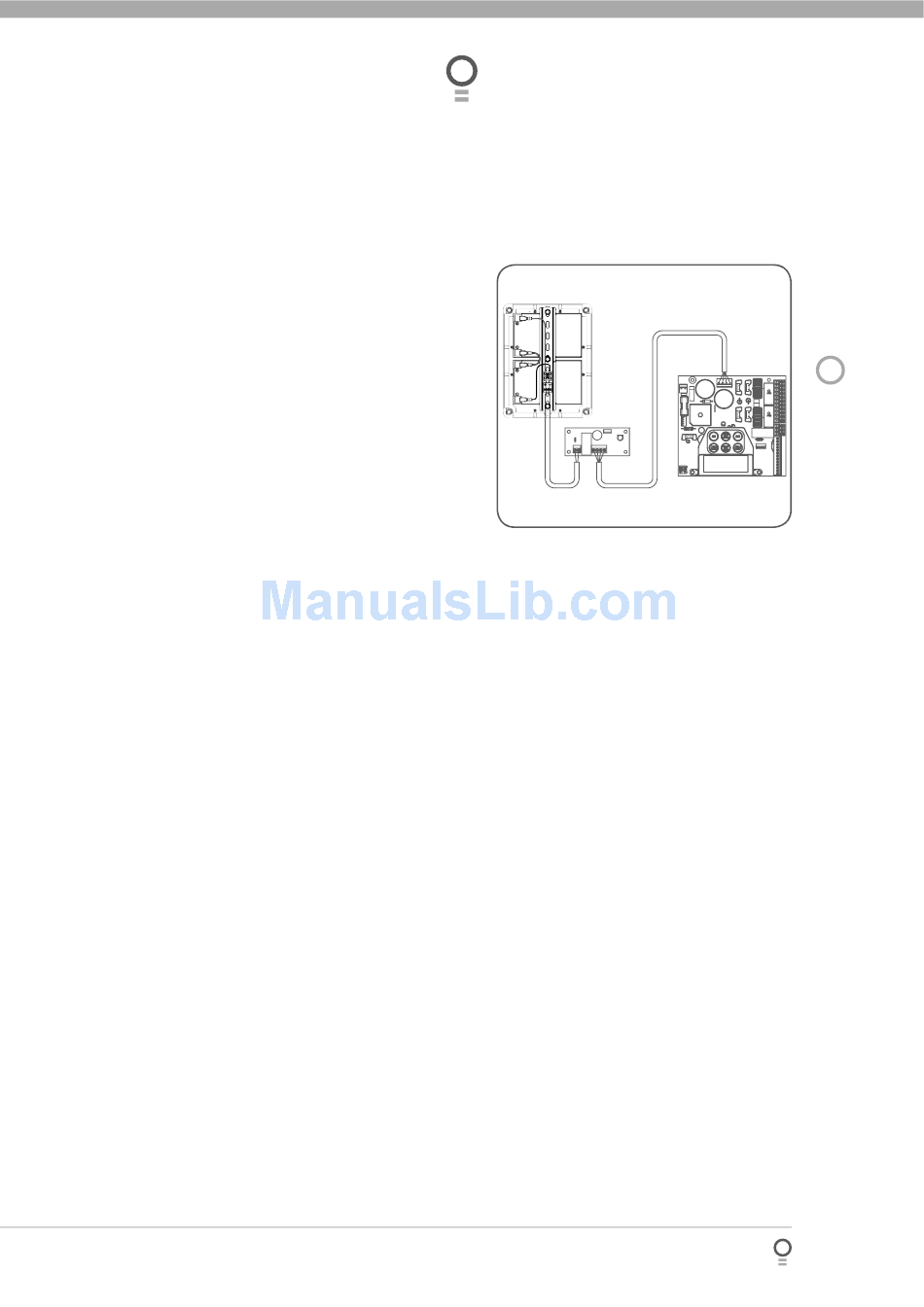

Connect the SBY-3 charger board to battery box
and to DCB-05 as shown (Fig. 55).
4.
Reconnect power.
5.
From menu 7.9 select the "battery enabled
option"
Testing Battery Backup
1.
Press transmitter to test the gate opener.
2.
Whilst gate is in motion, disconnect mains power.
The gate should continue to operate as normal.
NOTE: Wait for the gate to complete its travel.
3.
Press the transmitter to activate the gate.
4.
Whilst gate is in motion re-connect power. The gate
should complete the cycle as normal.
Troubleshooting
If gate stops or moves very slowly under battery
power, the batteries may be weak or have no charge.
Connect mains power and allow the batteries to
charge. This may take 24 - 48 hours to reach maximum
charge capacity.
