Setting Travel Limits

PLEASE NOTE - Before plugging the gate
control system in, check the power cord
for damage and ensure it cannot become
entangled in any moving parts
WARNING: make sure the obstruction sensitivity
is adjusted correctly on installation so that
the gate(s) reverse to the open position when
obstructed with minimum pressure and stops on
opening cycle when obstructed with minimum
pressure. Failure to comply with the set up
procedure may result in serious personal injury
and/or property damage.
1. Connect the fi ve/three core cable from the control
box to the drive unit(s).
2. Fully open the gate and engage the motor
assembly.

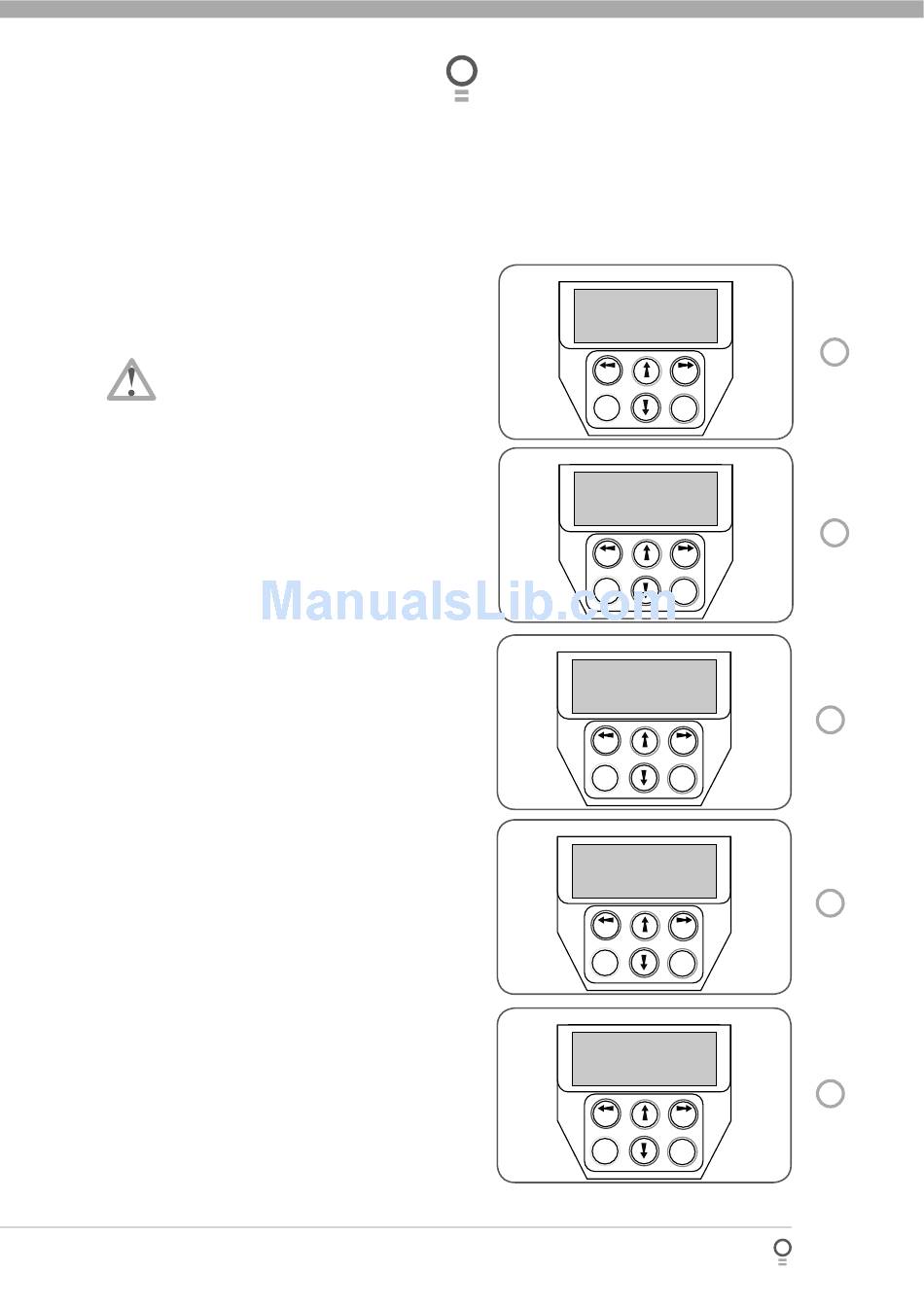

3. After checking the initial wiring, apply power to the
DCB-05. The controller will go through a startup
sequence displaying the STARTUP SCREEN which
indicates the controller type and fi rmware version
Fig. 23.
After a short delay the MAIN SCREEN will be
displayed. If this is the fi rst time the DCB-05 has
been used, the MAIN SCREEN should indicate that
the limits are not set Fig. 24.
If the display shows that some input is active, rectify
the situation before proceeding. If a default setting
is to be changed, it should be done now before
setting the travel limits.
Step 1. Navigating To "Limit/Amp Travel
Menu"
To navigate to Menu 10.1 from the main screen, simply
scroll to the left using the PREV button to access MENU
10, followed by SET to display MENU 10.1 (Fig. 25).
Press SET again to start the limit setting procedure.
Step 2. Confi rming Ready To Start
DCB-05 will prompt you to confi rm that the motor wiring
is complete (Fig. 26) and that the gate(s) are in a fully
open position and engaged. Press SET to confi rm (Fig.
27).
A.T.A DCB-05
FIRMWARE
PREV
EXIT
Limits Not Set!
Press <> To Acess MENU
PREV
EXIT
MENU 10.1
LIMIT/AMP Travel
PREV
EXIT
Motor Wiring
Completed?
PREV
EXIT
Fully Open Gate
Engage Mtrs, SET
PREV
EXIT
Owner Installation Instructions Elite® - Swing Gate Opener
#.##
fi g 23
NEXT
SET
fi g 24
NEXT
SET
fi g
25
NEXT
SET
fi g 26
NEXT
SET
fi g 27
NEXT
SET
21
