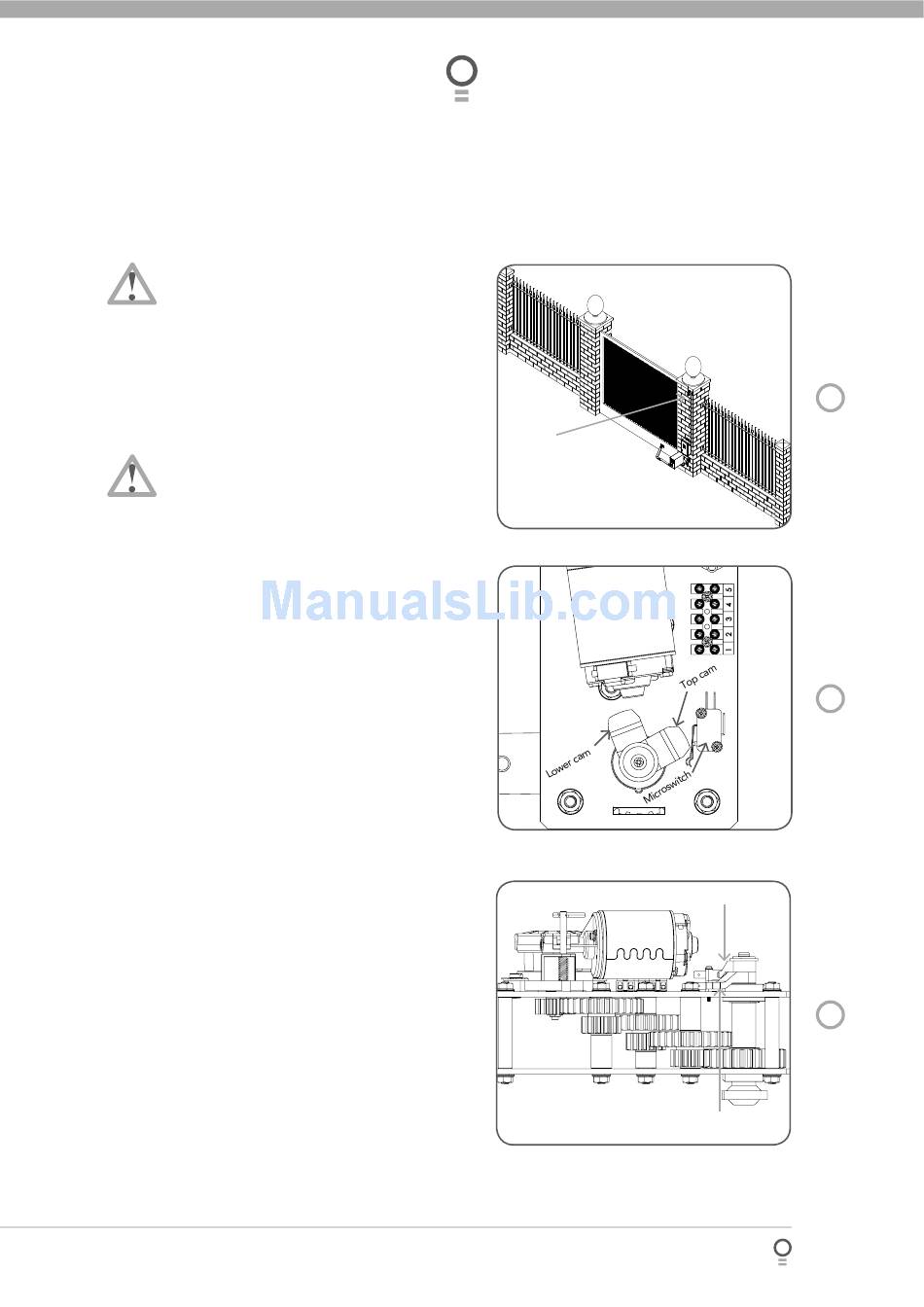

Automatic Technology Elite Installation Manual page 13

Mounting Control Box
Note: To determine left or right hand installation,
stand inside the driveway looking out to the street.
Antenna
Mount the antenna at or above the height of the gate
or fence for optimal reception, which ever is higher.
(Fig. 11). Do not cut antenna or coaxial cable.
Cams Setup
Setting of limits for open and closed position is
performed with opener in the manual position.
WARNING: do not switch power on or engage
motor drive.
For Right Hand Side Installation:
When gate is closed, turn lower cam in a clockwise
direction (Fig. 12 & 13) until an audible click can be
heard from the lower micro-switch. Open the gate to
the required opening position and turn top cam in an
anticlockwise direction until a click can be heard from
top micro-switch.
For Left Hand Side Installation:
When gate is closed turn lower cam in a anticlockwise
direction (Fig. 12 & 13) until an audible click can be
heard from the lower micro-switch. Open the gate
to the required opening position and turn top cam in
an clockwise direction until a click can be heard from
lower micro-switch.
Antenna
Motor
Owner Installation Instructions Elite® - Swing Gate Opener
fi g 11
fi g 12
Top cam
fi g 13
Lower cam
13
