Five Wire Connection Single Leaf - Automatic Technology Elite Installation Manual

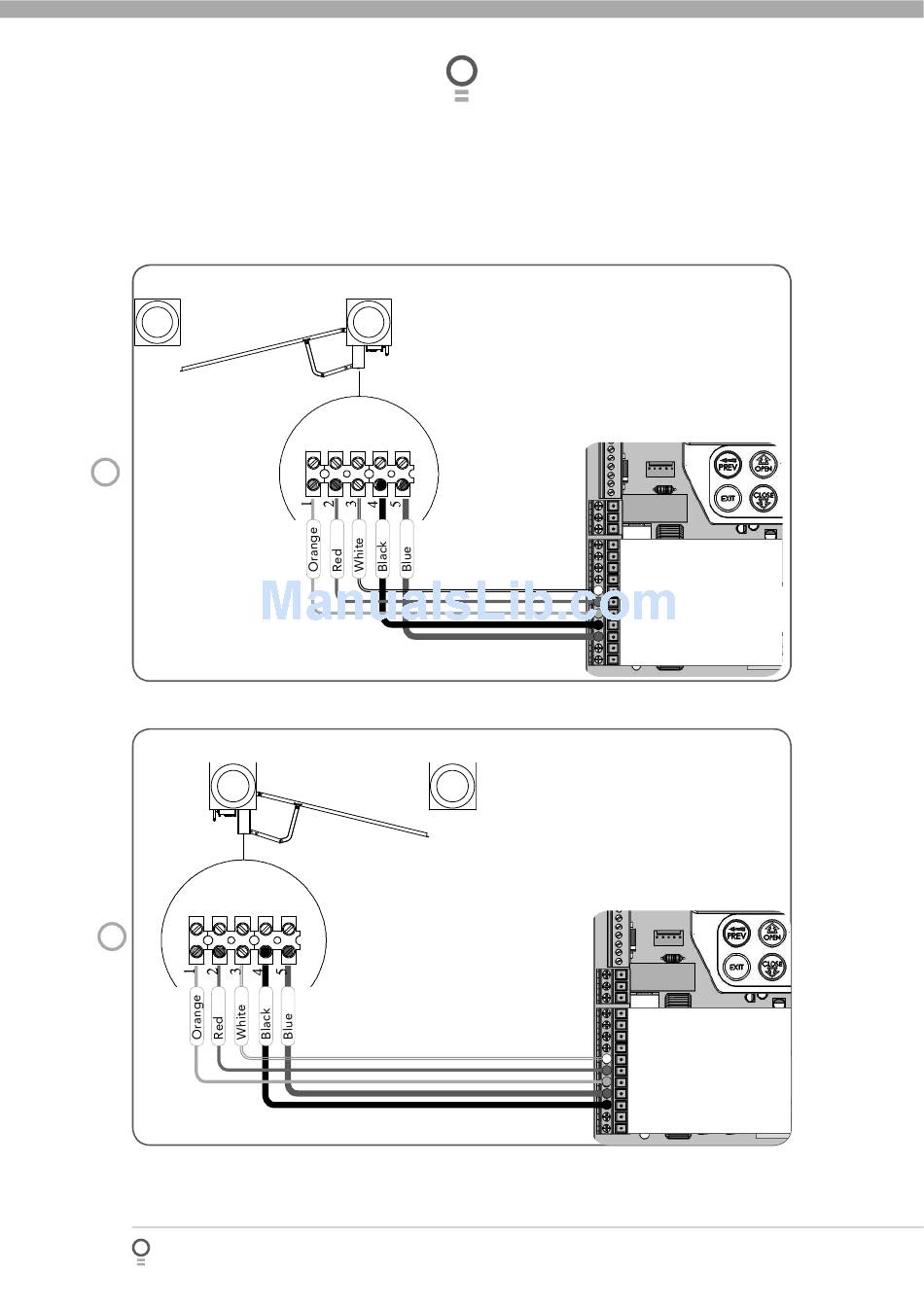

Five Wire Connection - Single Leaf
fi g 14
M1
fi g 15
14 Elite® - Swing Gate Opener
Drive unit installed on right hand side of the gate
M1
Drive unit installed on left hand side of the gate
Owner Installation Instructions
MOTOR 2 CONNECTOR 1
MOTOR 2 CONNECTOR 2
MOTOR 2 CLOSE LIMIT SWITCH INPUT
MOTOR 2 OPEN LIMIT SWITCH INPUT
COMMON FOR MOTOR 1 & 2 LIMIT SWITCHS
MOTOR 1 CLOSE LIMIT SWITCH INPUT
MOTOR 1 OPEN LIMIT SWITCH INPUT
MOTOR 1 CONNECTOR 1
MOTOR 1 CONNECTOR 2
24 VOLTS DC OUTPUT PLUS (+)
24 VOLTS DC OUTPUT MINUS (-)
MOTOR 2 CONNECTOR 1
MOTOR 2 CONNECTOR 2
MOTOR 2 CLOSE LIMIT SWITCH INPUT
MOTOR 2 OPEN LIMIT SWITCH INPUT
COMMON FOR MOTOR 1 & 2 LIMIT SWITCHS
MOTOR 1 CLOSE LIMIT SWITCH INPUT
MOTOR 1 OPEN LIMIT SWITCH INPUT
MOTOR 1 CONNECTOR 1
MOTOR 1 CONNECTOR 2
24 VOLTS DC OUTPUT PLUS (+)
24 VOLTS DC OUTPUT MINUS (-)
