Installing Drive Unit Arms

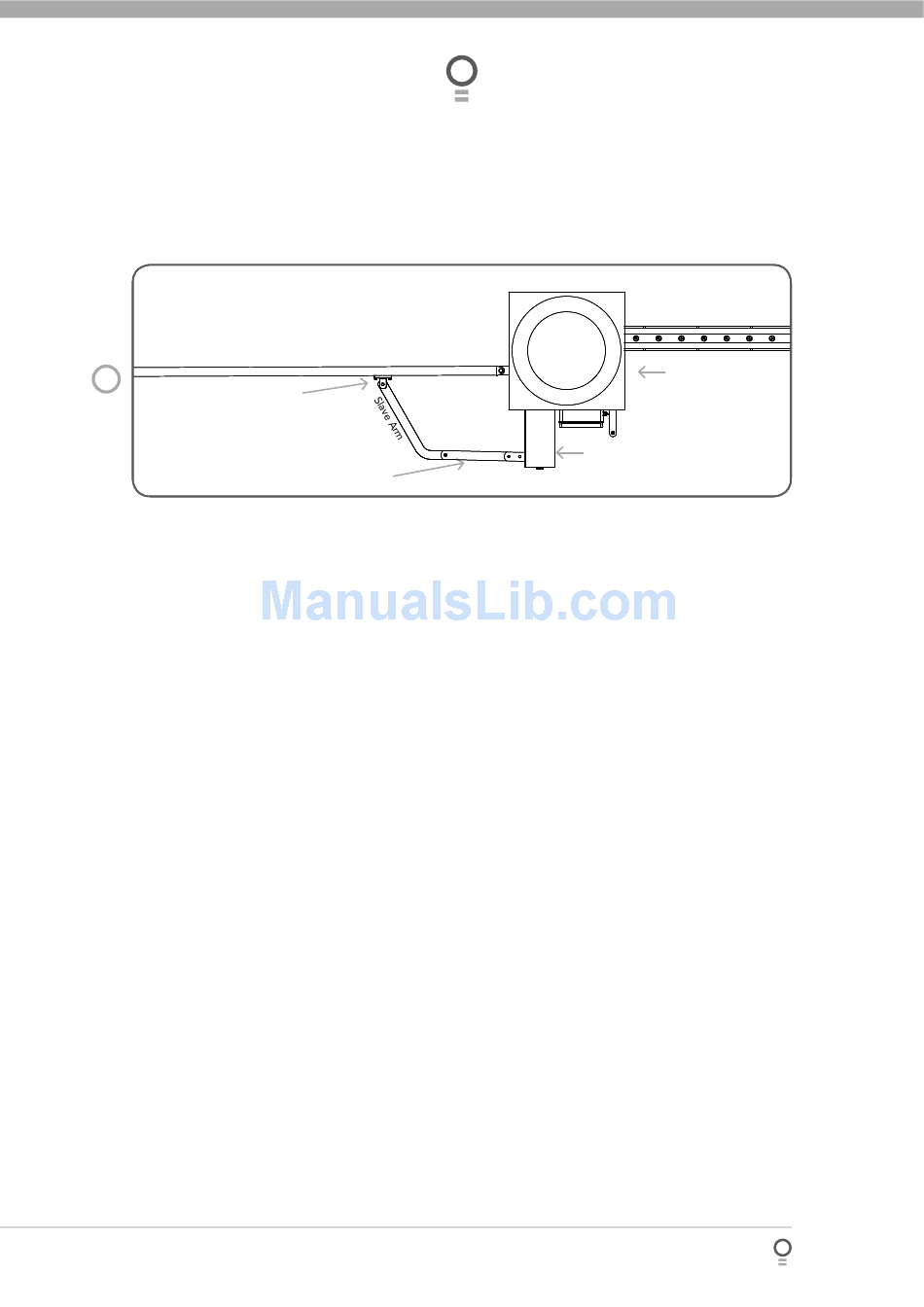

Gate in closed position
fi g 07
Gate mounting bracket
Affi xing Arms And Brackets To Gate
1. Position gate in close position.
2. Attach drive arm extension to drive arm (fi xed to
the drive unit) (Fig. 07), using two (2) Hex Head
screws, spring and fl at washers supplied.
3. Attach slave arm to drive arm extension using
plastic washers and shoulder screw supplied. (See
Page 8).
4. Assemble Gate Mounting Bracket and Slave Arm
using shoulder screw and plastic washers. Do not
tighten yet.
5. Extend arms out straight and mark position where
the Gate Mounting Bracket touches the gate
(Fig. 07). From this mark, measure 10mm toward
Drive Unit and mark again. This is where the Gate
Mounting Bracket will be mounted.
6. Remove the Gate Mounting Bracket from the Slave
Arm and secure the Gate Mounting Bracket to the
gate at second mark.
7. Reassemble Slave Arm to Gate Mounting Bracket
using shoulder screw and plastic washers. Secure
fi rmly.
Drive arm extension
Owner Installation Instructions
Wall/Pier
Drive unit
Elite® - Swing Gate Opener 11
