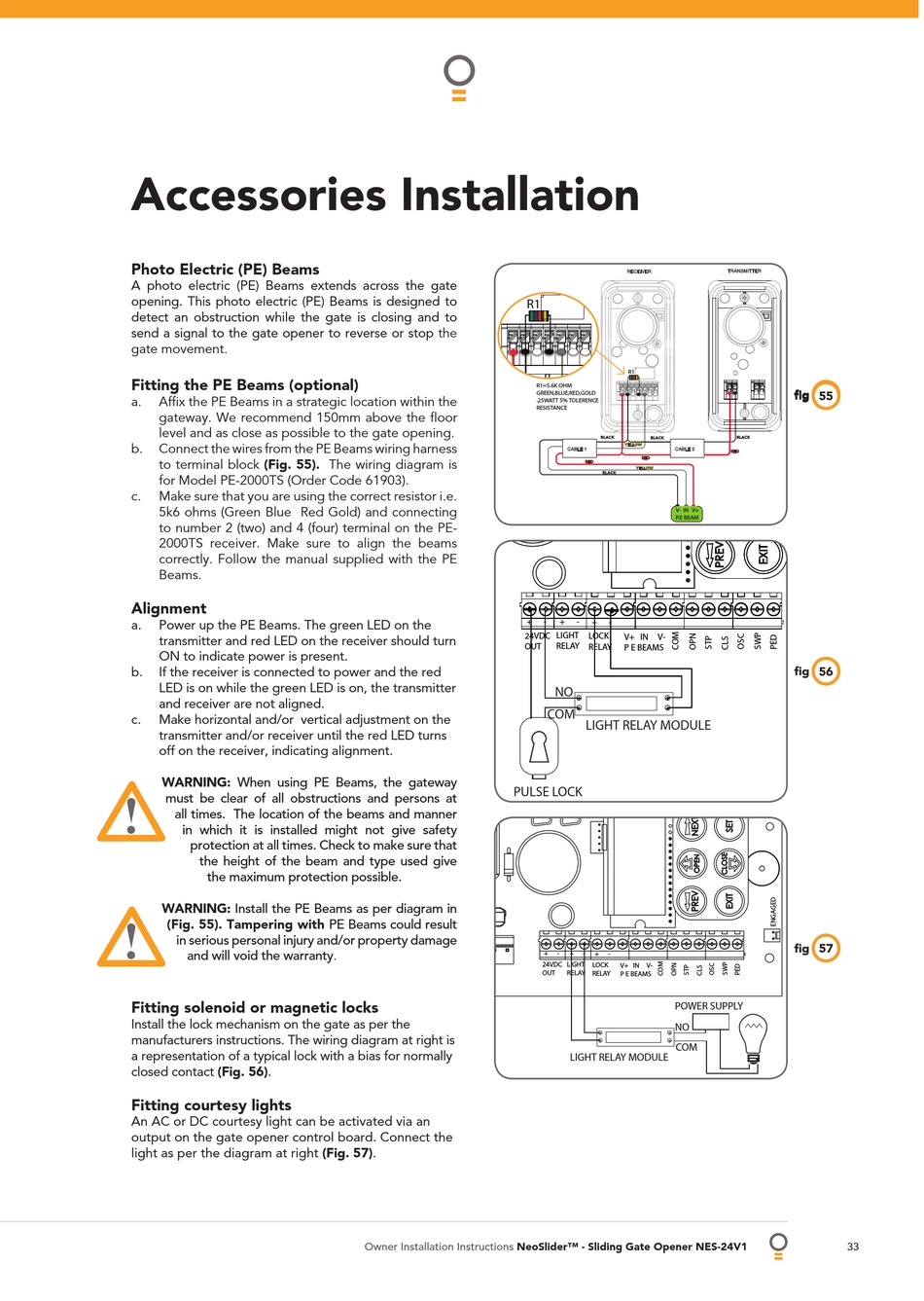

Accessories Installation

Photo Electric (PE) Beams
A photo electric (PE) Beams extends across the gate
opening. This photo electric (PE) Beams is designed to
detect an obstruction while the gate is closing and to
send a signal to the gate opener to reverse or stop the
gate movement.
Fitting the PE Beams (optional)
a. Affi x the PE Beams in a strategic location within the
gateway. We recommend 150mm above the fl oor
level and as close as possible to the gate opening.
b. Connect the wires from the PE Beams wiring harness
to terminal block (Fig. 55). The wiring diagram is
for Model PE-2000TS (Order Code 61903).
c. Make sure that you are using the correct resistor i.e.
5k6 ohms (Green Blue Red Gold) and connecting
to number 2 (two) and 4 (four) terminal on the PE-
2000TS receiver. Make sure to align the beams
correctly. Follow the manual supplied with the PE
Beams.
Alignment
a. Power up the PE Beams. The green LED on the
transmitter and red LED on the receiver should turn
ON to indicate power is present.
b. If the receiver is connected to power and the red
LED is on while the green LED is on, the transmitter
and receiver are not aligned.
c. Make horizontal and/or vertical adjustment on the
transmitter and/or receiver until the red LED turns
off on the receiver, indicating alignment.
WARNING: When using PE Beams, the gateway
must be clear of all obstructions and persons at
all times. The location of the beams and manner
in which it is installed might not give safety
protection at all times. Check to make sure that
the height of the beam and type used give
the maximum protection possible.
WARNING: Install the PE Beams as per diagram in
(Fig. 55). Tampering with PE Beams could result
in serious personal injury and/or property damage
and will void the warranty.
Fitting solenoid or magnetic locks
Install the lock mechanism on the gate as per the
manufacturers instructions. The wiring diagram at right is
a representation of a typical lock with a bias for normally
closed contact (Fig. 56).
Fitting courtesy lights
An AC or DC courtesy light can be activated via an
output on the gate opener control board. Connect the
light as per the diagram at right (Fig. 57).
R1
R1=5.6K OHM
GREEN,BLUE,RED,GOLD
.25WATT 5% TOLERENCE
RESISTANCE
+
24VDC
OUT
PULSE LOCK
3
