Three Wire Connection Dual Leaf - Automatic Technology Elite Installation Manual

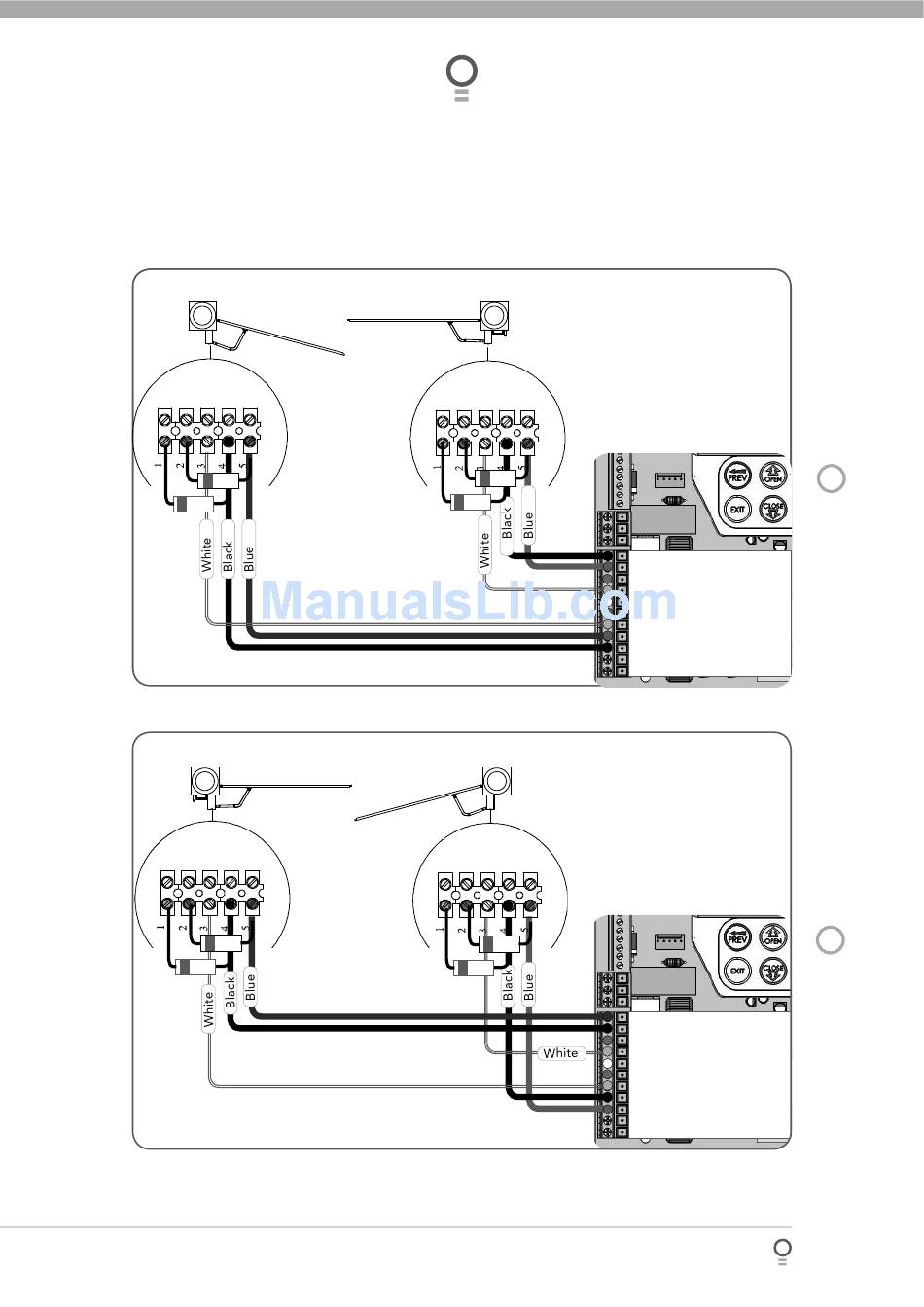

Three Wire Connection - Dual Leaf
M1
M2
Left hand leaf opens fi rst and close last.
One diode IN4001 is connected between
1 and 4. The second diode IN4001 is connected
M2
between 2 and 5 on the drive unit terminal for
each motor.
MOTOR 2 CONNECTOR 1
MOTOR 2 CONNECTOR 2
MOTOR 2 CLOSE LIMIT SWITCH INPUT
MOTOR 2 OPEN LIMIT SWITCH INPUT
COMMON FOR MOTOR 1 & 2 LIMIT SWITCHS
MOTOR 1 CLOSE LIMIT SWITCH INPUT
MOTOR 1 OPEN LIMIT SWITCH INPUT
MOTOR 1 CONNECTOR 1
MOTOR 1 CONNECTOR 2
24 VOLTS DC OUTPUT PLUS (+)
24 VOLTS DC OUTPUT MINUS (-)
Right hand leaf opens fi rst and close last.
One diode IN4001 is connected between
1 and 4. The second diode IN4001 is connected
M1
between 2 and 5 on the drive unit terminal for
each motor.
MOTOR 2 CONNECTOR 1
MOTOR 2 CONNECTOR 2
MOTOR 2 CLOSE LIMIT SWITCH INPUT
MOTOR 2 OPEN LIMIT SWITCH INPUT
COMMON FOR MOTOR 1 & 2 LIMIT SWITCHS
MOTOR 1 CLOSE LIMIT SWITCH INPUT
MOTOR 1 OPEN LIMIT SWITCH INPUT
MOTOR 1 CONNECTOR 1
MOTOR 1 CONNECTOR 2
24 VOLTS DC OUTPUT PLUS (+)
24 VOLTS DC OUTPUT MINUS (-)
Owner Installation Instructions Elite® - Swing Gate Opener
fi g 20
fi g 21
17
