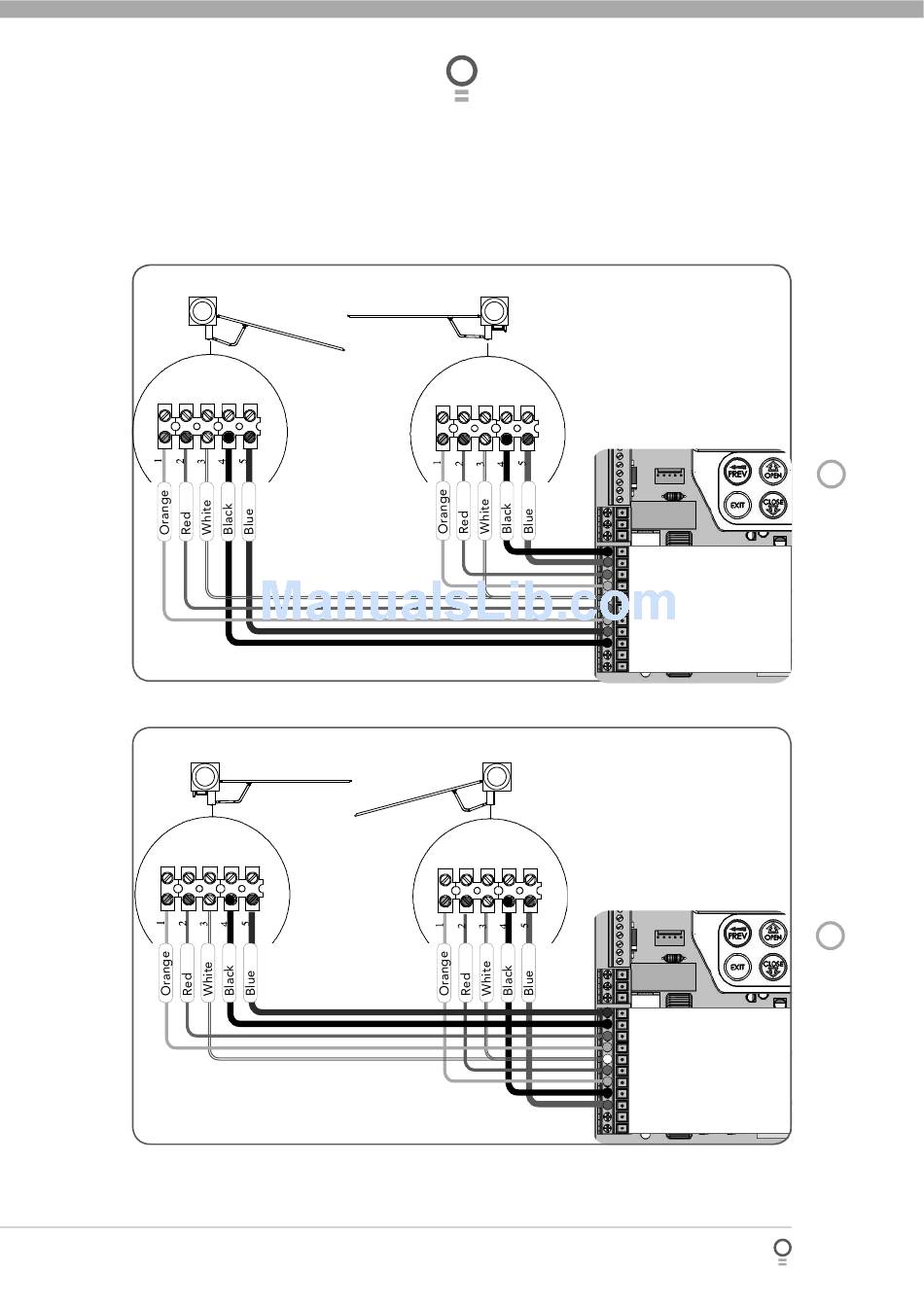

Five Wire Connection - Dual Leaf
Left hand leaf opens fi rst and close last
M1
M2
fi g 16
MOTOR 2 CONNECTOR 1
MOTOR 2 CONNECTOR 2
MOTOR 2 CLOSE LIMIT SWITCH INPUT
MOTOR 2 OPEN LIMIT SWITCH INPUT
COMMON FOR MOTOR 1 & 2 LIMIT SWITCHS
MOTOR 1 CLOSE LIMIT SWITCH INPUT
MOTOR 1 OPEN LIMIT SWITCH INPUT
MOTOR 1 CONNECTOR 1
MOTOR 1 CONNECTOR 2
24 VOLTS DC OUTPUT PLUS (+)
24 VOLTS DC OUTPUT MINUS (-)
Right hand leaf opens fi rst and close last
M1
M2
fi g 17
MOTOR 2 CONNECTOR 1
MOTOR 2 CONNECTOR 2
MOTOR 2 CLOSE LIMIT SWITCH INPUT
MOTOR 2 OPEN LIMIT SWITCH INPUT
COMMON FOR MOTOR 1 & 2 LIMIT SWITCHS
MOTOR 1 CLOSE LIMIT SWITCH INPUT
MOTOR 1 OPEN LIMIT SWITCH INPUT
MOTOR 1 CONNECTOR 1
MOTOR 1 CONNECTOR 2
24 VOLTS DC OUTPUT PLUS (+)
24 VOLTS DC OUTPUT MINUS (-)
