Summary of Contents for Automatic Technology NES-24V3 NeoSlider

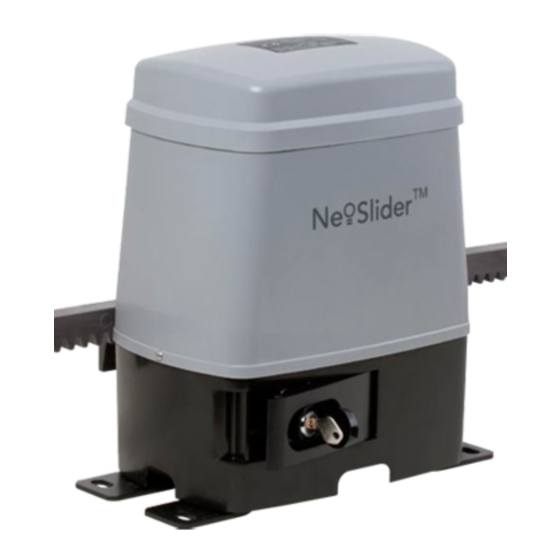

- Page 1 NES-24V3 NeoSlider Sliding Gate Opener Ne Slider ™ Doc # 160056_00 Part # 13428 Released 17/03/15...
-
Page 2: Table Of Contents
Automatic Technology Australia Pty Ltd hereby further expressly excludes all or any liability for any injury, damage, cost, expense or claim whatsoever suffered by any person as a result whether directly or indirectly from failure to install the Automatic Technology Australia Pty Ltd Garage Door Opener in accordance with these installation instructions. -
Page 3: Important Safety Instructions
Only experienced service personnel should remove covers from the gate opener. • If the power supply cord is damaged, it must be replaced by an Automatic Technology service agent or suitably qualified person. Connect the gate opener to a properly earthed general purpose 240V mains power •... -
Page 4: Control Board Layout
2. Control Board Layout Fig 2.1 PED N/O input terminal Console Exit button Console Down/Close button SB2 (Safety Beam (2), two, three Console SET button wire or wireless) OUT 2 (optional relay Antenna connector SB1 (Safety Beam(1), two, three module coil drive) wire or wireless) Console display OUT 1 N/C relay contact... -
Page 5: Set Up Requirements
3. Set Up Requirements Fig 3.1 3.1 Kit Contents ITEM DESCRIPTION ORDER IMPORTANT WARNING! CODE DRIVE UNIT NES-24V3 60188 A qualified electrician must TRIO-CODE 4B PTX-5V2 TRANSMITTER 61160 perform the installation where 240V AC power is used. ACCESSORY ACTUATOR PACK 61463 3.2 Choosing your Set up The NeoSlider™... -
Page 6: Drive Unit Installation
5.1). width) and to the datum line If using an Automatic Technology plastic rack, the width is 40mm. If using a different brand of rack, please ensure it is Module 4 and then confirm the width, as this will vary. -
Page 7: Rack & Limit Actuator Installation
5. Rack & Limit Actuator Installation 5.1 Mounting rack to gate A strong base on the gate is required for mounting the rack. a. Manually open the gate and place a rack section to mesh with the pinion gear on the Drive Unit. Mark the top of the rack. -
Page 8: Programming The Neoslider
6. Programming The NeoSlider 6.1 Common Programs The two most common programs are; Program Menu’s required Function Section Automated Set Up Menu 10.1 Setting the Limits Safety Obstruction Force 9.1 and 9.2 Menu 1 Coding the Transmitter 10.1 Automated Set Up with Menu 10.1 Setting the Limits Safety Beams... -
Page 9: Safety Beams
7. Safety Beams WARNING: When using Safety Beams, the gateway must be clear of all obstructions and persons at all times. The location of the beams and manner in which it is installed might not give safety protection at all times. Check to make sure that the height of the beam and type used give maximum protection possible WARNING: Tampering with Safety Beams could result in serious personal injury and/or property damage and will void the warranty. -
Page 10: Setting Limits
8. Setting Limits The NeoSlider has the alternate ability to set travel limits using a TrioCode 128 transmitter, allowing free movement around the gate to Button 1 better assess the desired limit positions. In order to use a transmitter, it Button 2 (Inch must first have at least one of its buttons coded to the gate controller. -
Page 11: Automatic Limit Adjustment And Load Profile
8. Setting Limits 8.5 Automatic limit adjustment and load profile After a brief pause, the controller will automatically close and open the gate several times. This adjusts the speed at which the limits are approached and helps to learn the normal load profile of the gate. When the setup is complete, the MAIN SCREEN will be displayed with the gate shown to be OPEN. -
Page 12: Safety Obstruction Force Test
9. Safety Obstruction Force Test WARNING! Take care when testing or adjusting the Safety Obstruction Force. Excessive force may cause SERIOUS PERSONAL INJURY and/or PROPERTY DAMAGE. 9.1 Testing Close Cycle a. Press the OPEN button to open the gate. b. Place a piece of timber approximately 40mm wide on the ground directly next to the closing pilon / fence (Fig. -
Page 13: Coding Transmitter
10. Coding Transmitter ID/SN display IMPORTANT NOTE: I.D label/Serial indicator Store Only TrioCode 128 Technology Transmitters number number are compatible with this product. Name/SN NeoSlider can store up to thirty (30) transmitters in its OSC PED LGT VAC Fig 10.1 memory. -
Page 14: Remotely Coding Transmitters
11. Remotely Coding Transmitters If a TrioCode 128 transmitter is already coded into the opener, additional TrioCode 128 transmitters can be coded without being in direct contact with the NeoSlider PRESS NOTE: Only the function of the existing TrioCode 128 Transmitter button can be assigned to new transmitter. -
Page 15: Battery Replacement
Refer to the Automatic Technology website for information on where to recycle batteries in Australia. DO NOT throw the batteries in municipal waste. This symbol of the crossed out wheeled bin indicates that the battery should not be placed in the municipal waste. -
Page 16: Setting Pedestrian Position
14. Setting Pedestrian Position NeoSlider can be instructed, via its pedestrian control feature, to partly open and provide pedestrian access but prevent vehicle access. MENU 10.3 NOTE: Before setting the pedestrian access position the gate must be Set Pedestrian in the fully closed position. As with the Setting Travel Limit procedure, a transmitter can be used to complete the pedestrian position setting Fig 14.1 procedure. -
Page 17: Auto-Close Mode
15. Auto-Close Mode WARNING! The Auto-Close function is not 15.3 Pedestrian Auto-Close Menu 3.3 Safety Beam Auto-Close available unless Safety Beam is installed. This mode is selected by entering a non-zero time for the “Safety Beam Auto-Close” parameter. This mode is used 15.1 Setting Up Standard Auto-Close to Auto-Close the gate but only after an object has passed Menu 3. -
Page 18: Accessories Installation
16. Accessories Installation Wiring Output1 And Output2 Outputs 1 and 2 are used to control a lock, Light or Pulse Lock Safety Beam power. Which output is to control which function and the way it is controlled is programmable. If using these outputs make sure that the functions are configured for correct operation prior to setting the travel limits. -
Page 19: Specifications
17. Specifications Technical Specifications Protection rating: IP33 Input voltage: 230V - 240V AC 50Hz Transformer primary voltage: 230V/240VAC Secondary voltage: 24V AC 150 VA Controller voltage: 24V DC Motor type: Permanent Magnet Direct Current Motor voltage: 24V DC Maximum pulling force: 200N Maximum gate opening: Width:... -
Page 20: Troubleshooting
18. Troubleshooting Symptom Possible cause Remedy Gate will not operate Mains power not switched on. Switch on mains power. Opener motor is disengaged Check that the motor is engaged for automatic operation Gate is obstructed. Remove obstruction. The opener is in “Vacation Mode” Turn off “Vacation Mode”(Appendix DMenu 7.4). -
Page 21: Appendix
OPERATIONAL BUTTONS: 19. Appendix 1. Press PREV/NEXT buttons move to Left/Right. 2. Press OPEN/CLOSE buttons to change setting. 3. Press SET button to save changes. A - Console Menu Structure 4. Press EXIT to return to MENU without saving changes. Parameter Default Step... - Page 22 Appendix NOTE: The System will automatically return to the main screen after 30 secs if a menu screen is displayed and no buttons are pressed. A - Console Menu Structure Parameter Default Step Unit Menu Section HOMING / SETUP SPEED VOLTS Volts Voltage applied to motors when setting up the travel limits STOP PAUSE TIME...
-
Page 23: B - Viewing And Editing Parameters
Appendix A - Console Menu Structure Parameter Option Default Menu Section Menu 8 - Diagnostics TEST INPUTS - Controls input display Inactive Appendix E status TEST TRANSMITTERS (TX’ERS) Appendix E DISPLAY HISTORY Appendix E MEMORY USAGE Appendix E SERVICE COUNTER 60,000 Appendix E EVENT COUNTER... -
Page 24: C - Wiring Dual Neoslider Kit
Appendix C - Wiring Dual NeoSlider Kit MSI-1.00 Board ATA DCB-05V2 (150VA) Fig C.1 MOTOR 2 TERMINAL 1 MOTOR 2 TERMINAL 2 MOTOR 2 CLOSE LIMIT SWITCH INPUT MSI-1.00 Board MOTOR 2 OPEN LIMIT SWITCH INPUT COMMON FOR MOTOR 1 & 2 LIMIT SWITCHES MOTOR 1 CLOSE LIMIT SWITCH INPUT MOTOR 1 OPEN LIMIT SWITCH INPUT MOTOR 1 TERMINAL 1... -
Page 25: D - Control Board Adjustments
Appendix D - Control Board Adjustments The standard operation of the opener can be altered by editing various parameters. This section describes the parameters and the effect they have. Use the VIEWING AND EDITING PARAMETER PROCEDURE (Appendix B) to make changes. Menu 6. - Page 26 Appendix D - Control Board Adjustments having to disconnect the Battery Backup / Solar system. Menu 7.11 Password Protection The password feature enables all parameters and configuration settings to be protected unless a password is entered. When this feature is turned on, the user is requested to enter the desired password to be used. The password protection feature has a time-out that expires after 60 seconds of inactivity.
-
Page 27: E- Diagnostic Tools
Appendix E- Diagnostic Tools The controller provides several diagnostic tools from within the Diagnostics Menu (Menu 8). This section details the function of each tool and its use. MENU 8 Navigating To Diagnostics Menu Diagnostics a. Press PREV to navigate to Menu 8 (Fig. -
Page 28: F - Memory Tools
Appendix E- Diagnostic Tools Menu 8.5 Service Counter The NeoSlider™ provides a periodic service counter which can be set to expire after a number of drive cycles. When expired, Service Counter the NeoSlider™ will beep at the beginning of each drive (CYCLES) 60000 cycle and a message will be displayed on the MAIN SCREEN... -
Page 29: G- Transmitter Editing
Appendix G- Transmitter Editing Navigating To “Edit Transmitter” Menu (Fig. G.1) a. Press NEXT to navigate to Menu 1 b. Press SET to enter the transmitter edit procedure. Menu 1 c. Press NEXT to enter transmitter list and edit mode. Code Transmitter Editing Button Function Field a. - Page 30 Appendix G- Transmitter Editing Selection Of ID or Serial Number Display a. Press NEXT to navigate to the Menu 1 ”Code Transmitter”. 12345 b. Press SET to enter the transmitter edit procedure. OSC PED LGT VAC c. Press NEXT to enter transmitter list and edit mode. d.
-
Page 31: H- Transmitter Managment
Appendix H- Transmitter Managment Transmitter Listing Facility The NeoSlider™ provides a transmitter listing facility which enables the user to find a transmitter location within the memory. Press Tx’er Once located, a stored transmitter can be replaced, deleted, Button LIST> edited, copied or, if the location is empty, a new transmitter can be coded. -
Page 32: Warranty And Exclusion Of Liability
20. Warranty and Exclusion of Liability This Warranty is given by Automatic Technology (Australia) Pty Ltd (h) repairs which are not authorised by ATA; (ABN 11 007 125 368) (ATA), 6-8 Fiveways Boulevard, Keysborough (i) any failure to install or maintain the Product in accordance with the 3173, 1300 133 944, sales@automatictechnology.com.au...
