Three Wire Connection - Single Leaf
fi g
18
M1
fi g
19
16
Elite® - Swing Gate Opener
M1
Owner Installation Instructions
Drive unit installed on right hand side of the
gate .

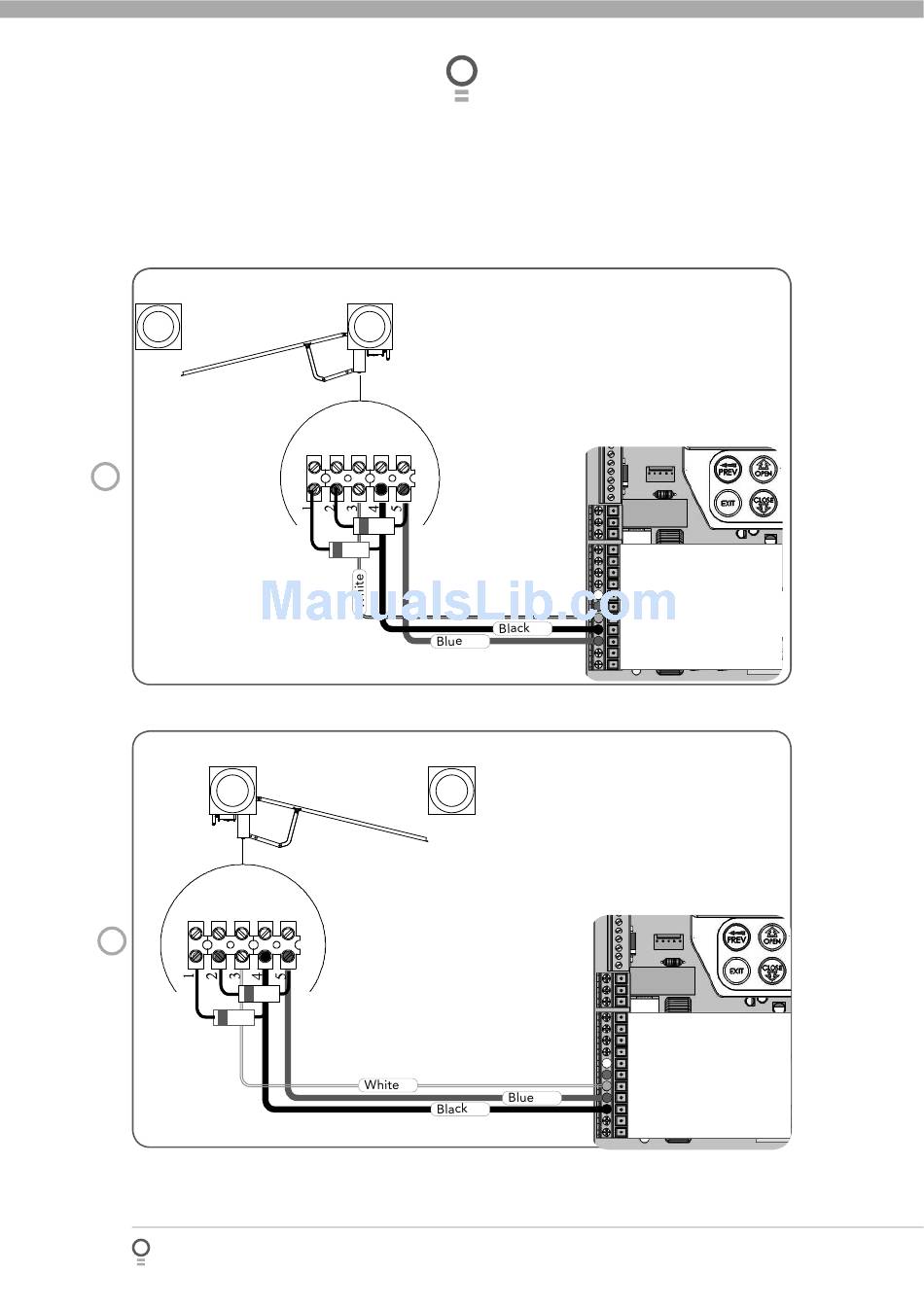

One diode IN4001 is connected between
1 and 4. The second diode IN4001 is
connected between 2 and 5 on the drive unit
terminal.
MOTOR 2 CONNECTOR 1
MOTOR 2 CONNECTOR 2
MOTOR 2 CLOSE LIMIT SWITCH INPUT
MOTOR 2 OPEN LIMIT SWITCH INPUT
COMMON FOR MOTOR 1 & 2 LIMIT SWITCHS
MOTOR 1 CLOSE LIMIT SWITCH INPUT
MOTOR 1 OPEN LIMIT SWITCH INPUT
MOTOR 1 CONNECTOR 1
MOTOR 1 CONNECTOR 2
24 VOLTS DC OUTPUT PLUS (+)
24 VOLTS DC OUTPUT MINUS (-)
Drive unit installed on right hand side of the
gate.
One diode IN4001 is connected between
1 and 4. The second diode IN4001 is connected
between 2 and 5 on the drive unit terminal.
MOTOR 2 CONNECTOR 1
MOTOR 2 CONNECTOR 2
MOTOR 2 CLOSE LIMIT SWITCH INPUT
MOTOR 2 OPEN LIMIT SWITCH INPUT
COMMON FOR MOTOR 1 & 2 LIMIT SWITCHS
MOTOR 1 CLOSE LIMIT SWITCH INPUT
MOTOR 1 OPEN LIMIT SWITCH INPUT
MOTOR 1 CONNECTOR 1
MOTOR 1 CONNECTOR 2
24 VOLTS DC OUTPUT PLUS (+)
24 VOLTS DC OUTPUT MINUS (-)
