Installing Minimum Sideroom Kit

fi g
08
Socket head screw M12 x 60
Idler
fi g 09
Nylock nut M12

Mounting Control Box

fi g 10
110
12 Elite® - Swing Gate Opener
Drill 12.5 mm
Shoulder screw
Control box mounting
55
Drive unit mounting
Owner Installation Instructions
Minimum Sideroom Kit
If you have limited sideroom, an optional minimum
sideroom kit reduces the gate opener's required
sideroom to the width of the drive unit (135mm). (ATA
Order code 90182).
Fitting Minimum Sideroom Kit

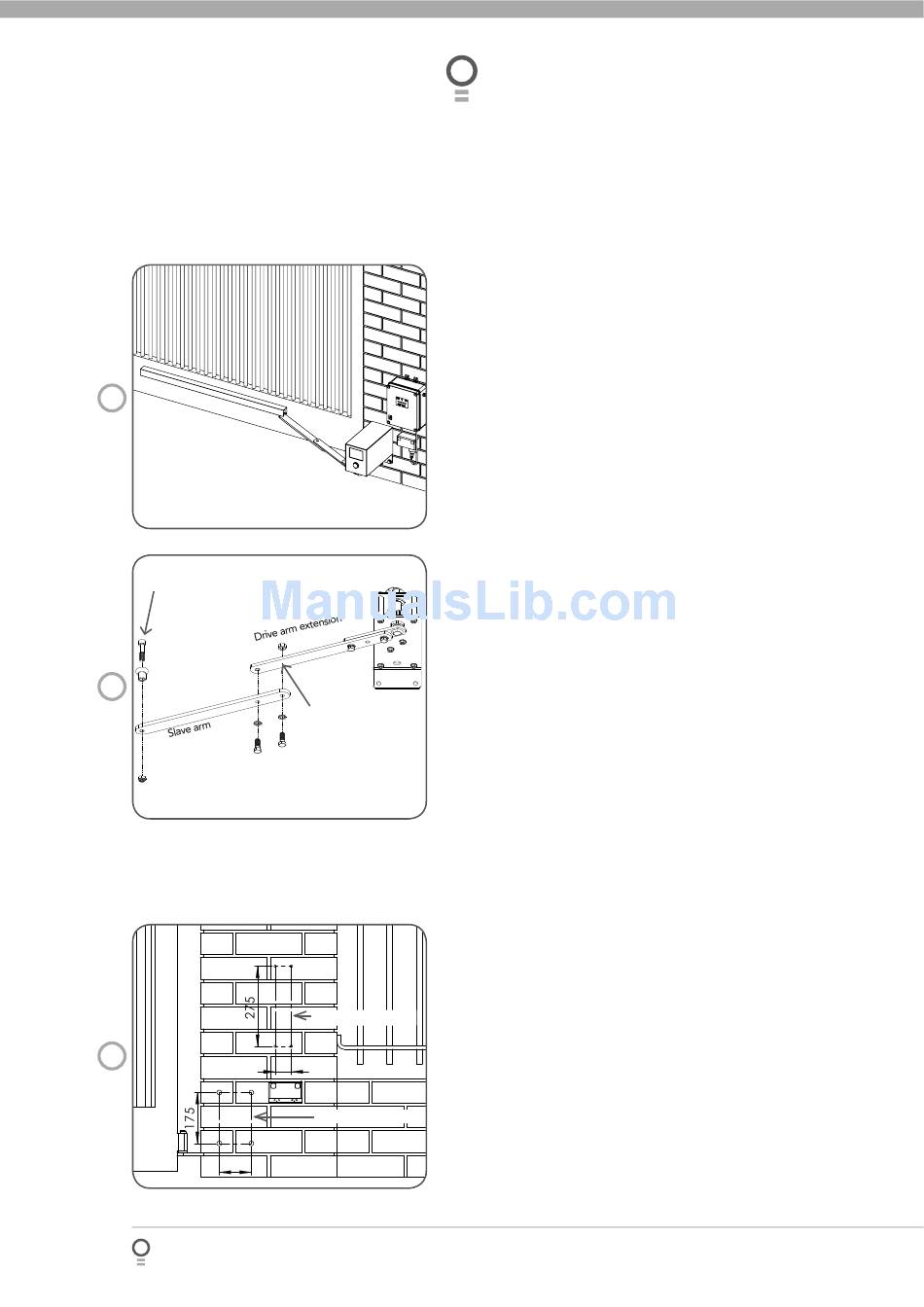

1. Secure the extension arm from the Minimum
Sideroom Kit onto drive arm extension with supplied
M12 screws.
2. Drill Ø12 hole in the Drive Arm Extension (use hole
in extension arm as a guide).
3. Insert the other M12 screw and secure with spring
washer and nut. Check that the screws are tight
(Fig. 09)
4. Check that the Drive Unit is disengaged and the
gate is closed. Slide the Guide Track over the idler.
Locate Track on the gate and check travel of the
Arm. The idler should always be inside the Guide
Track in the closed and open positions (Fig. 08).
5. Secure the track to the gate (weld if possible).
NOTE: If a shorter arm is required, drill the drive arm
extension and extension arm where appropriate. You
should not have to cut the arms and you should still
be able to use pre-threaded hole in the drive arm
extension.
Mounting Control Box
CAUTION: do not use any cables which carry green/
yellow wires as this signifi es earth, and do not comply
with electrical authority regulations.
1. The control box should be mounted near the drive
unit using four (4) 6mm screws.
2. Drill holes as per (Fig. 10). When locating the
control box, allow ample space around the unit for
easy access and wiring connections.
3. Remove cover from control box.
4. Determine which leaf you would like to open fi rst
and close last. This gate leaf must be connected to
Motor 1 (M1) terminals on the control board.
5. Connect drive unit(s) to control board using 5-
core or 3-core cable.Two diodes IN4001 per drive
unit must be used with 3-core cable instalation. For
detailed electrical connection see (Fig. 14 -21).
