Accessories installation

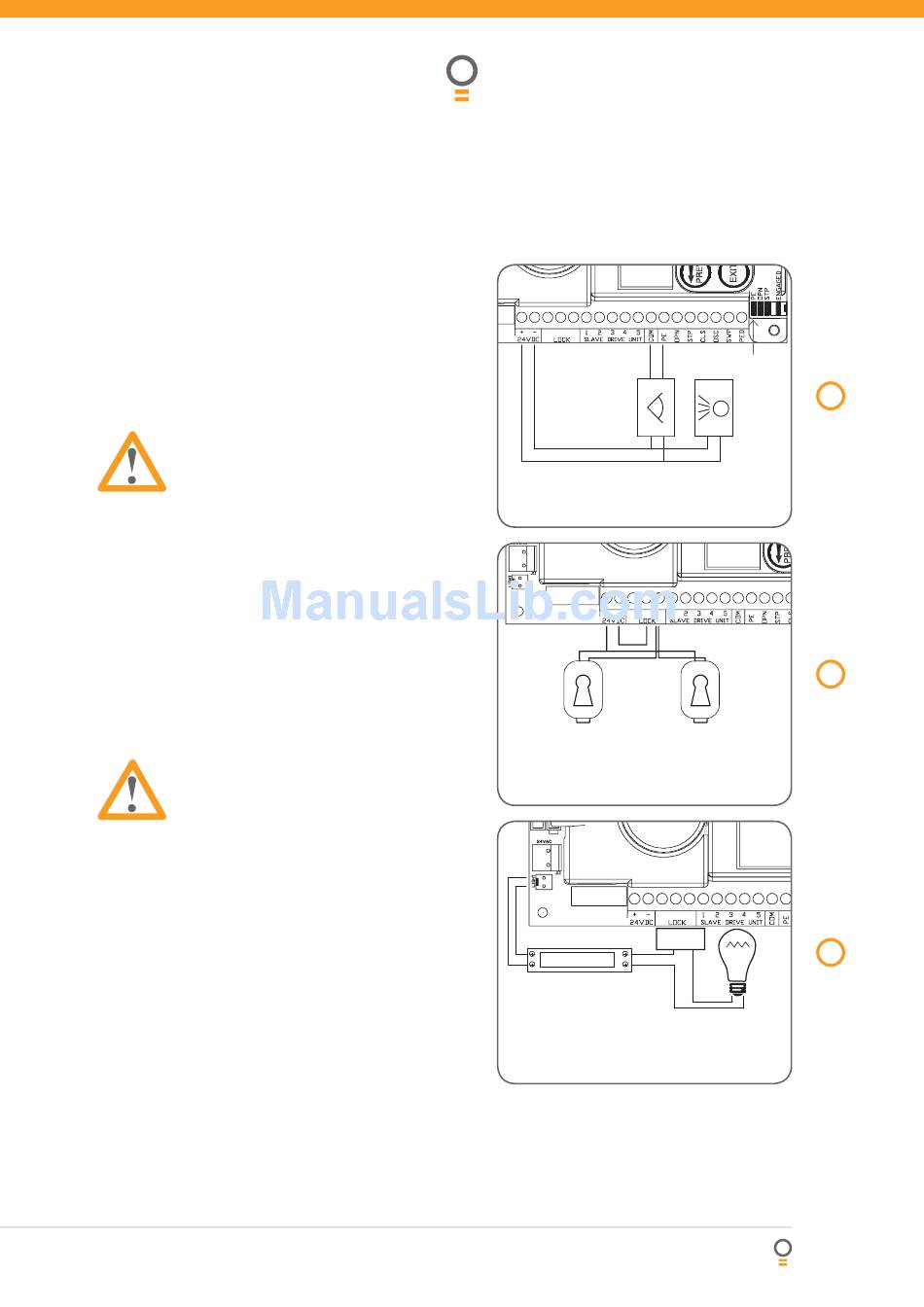

Fitting photo electric beam
Locate the Photo Electric (P.E.) Beam in a strategic
location in the gateway. ATA recommend that the sensor
is placed 150mm above the floor level and as close as
possible to the gate opening. Remove the shunt from
the P.E. input and connect as per the wiring diagram at
right. Make sure that the sensors are correctly aligned as
per the instruction manual supplied with the P.E. Beam
kit. See Page XX for set up of Auto-Close times.
WARNING: When using auto-close mode and
P.E. Beams the gateway must be clear of all
obstructions and persons at all times. The
location of the P.E. Beam and the manner in
which it is installed might not give safety
protection at all times. Check to make sure that the
height of the sensor and type used offers maximum
protection possible.
Fitting solenoid or magnetic locks
Install the lock mechanism on the gate as per the
manufacturers instructions. The wiring diagram at right is
a representation of a typical lock with a bias for normally
closed contact. See Page XX for Lock Times set up.
Fitting courtesy lights
An AC or DC courtesy light can be activated via an
output on the gate opener control board. Connect the
light as per the diagram at right. See Page XX for Light
Times set up.
WARNING: A qualified electrician must perform
the installation where 240V AC power is used.
Light relay module
Owner Installation Instructions Easy Slider - Sliding Gate Opener
Remove P.E shunt
fig 67
fig 68
Light power
supply
fig 69
35
