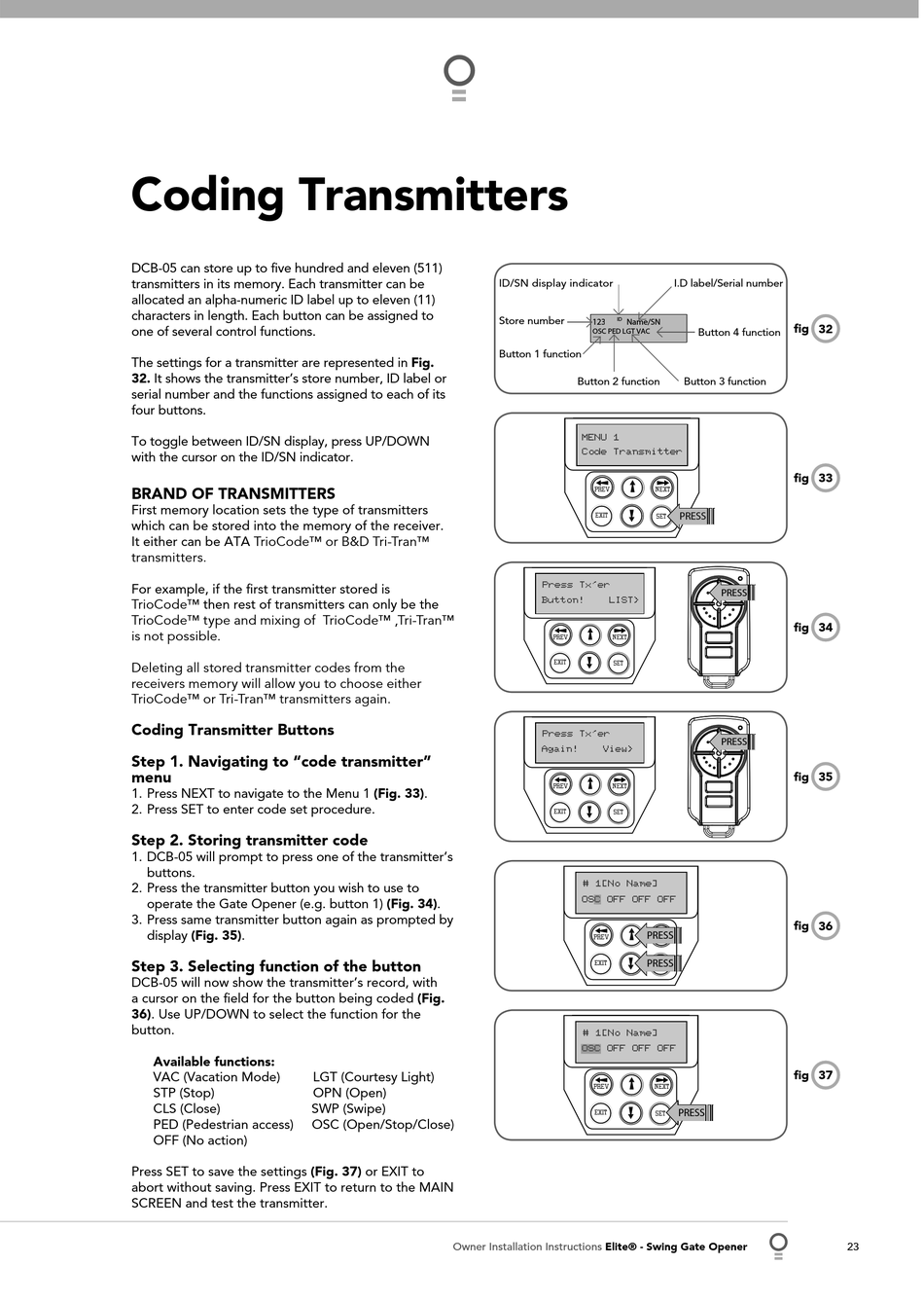

Coding Transmitters

DCB-05 can store up to fi ve hundred and eleven (511)
transmitters in its memory. Each transmitter can be
allocated an alpha-numeric ID label up to eleven (11)
characters in length. Each button can be assigned to
one of several control functions.
The settings for a transmitter are represented in Fig.
32. It shows the transmitter's store number, ID label or
serial number and the functions assigned to each of its
four buttons.
To toggle between ID/SN display, press UP/DOWN
with the cursor on the ID/SN indicator.
BRAND OF TRANSMITTERS
First memory location sets the type of transmitters
which can be stored into the memory of the receiver.
It either can be ATA TrioCode™ or B&D Tri-Tran™
transmitters.
For example, if the fi rst transmitter stored is
TrioCode™ then rest of transmitters can only be the
TrioCode™ type and mixing of TrioCode™ ,Tri-Tran™
is not possible.
Deleting all stored transmitter codes from the
receivers memory will allow you to choose either
TrioCode™ or Tri-Tran™ transmitters again.
Coding Transmitter Buttons
Step 1. Navigating to "code transmitter"
menu
1. Press NEXT to navigate to the Menu 1 (Fig. 33).
2. Press SET to enter code set procedure.
Step 2. Storing transmitter code
1. DCB-05 will prompt to press one of the transmitter's
buttons.
2. Press the transmitter button you wish to use to
operate the Gate Opener (e.g. button 1) (Fig. 34).
3. Press same transmitter button again as prompted by
display (Fig. 35).
Step 3. Selecting function of the button
DCB-05 will now show the transmitter's record, with
a cursor on the fi eld for the button being coded (Fig.
36). Use UP/DOWN to select the function for the
button.
Available functions:
VAC (Vacation Mode)
STP (Stop)
CLS (Close)
PED (Pedestrian access)
OFF (No action)
Press SET to save the settings (Fig. 37) or EXIT to
abort without saving. Press EXIT to return to the MAIN
SCREEN and test the transmitter.
LGT (Courtesy Light)
OPN (Open)
SWP (Swipe)
OSC (Open/Stop/Close)
Owner Installation Instructions
ID/SN display indicator
Store number
Button 1 function
Button 2 function
MENU 1
Code Transmitter
PREV NEXT
EXIT
SET
Press Tx'er
Button! LIST>
PREV NEXT
EXIT
SET
Press Tx'er
Again! View>
PREV NEXT
EXIT
SET
# 1[No Name]
OSC OFF OFF OFF C
PRESS
PREV NEXT
EXIT PRESS SET
# 1[No Name]
OSC OSC OFF OFF OFF
PREV NEXT
EXIT
SET
Elite® - Swing Gate Opener
I.D label/Serial number
fi g 32
Button 4 function
Button 3 function
fi g 33
PRESS
PRESS
fi g 34
PRESS
fi g 35
fi g
36
fi g 37
