Menu 8.5 Service Counter

DCB-05 provides a periodic service counter which can
be set to expire after a number of drive cycles.
When expired, DCB-05 will beep at the beginning
of each drive cycle and a message will be displayed

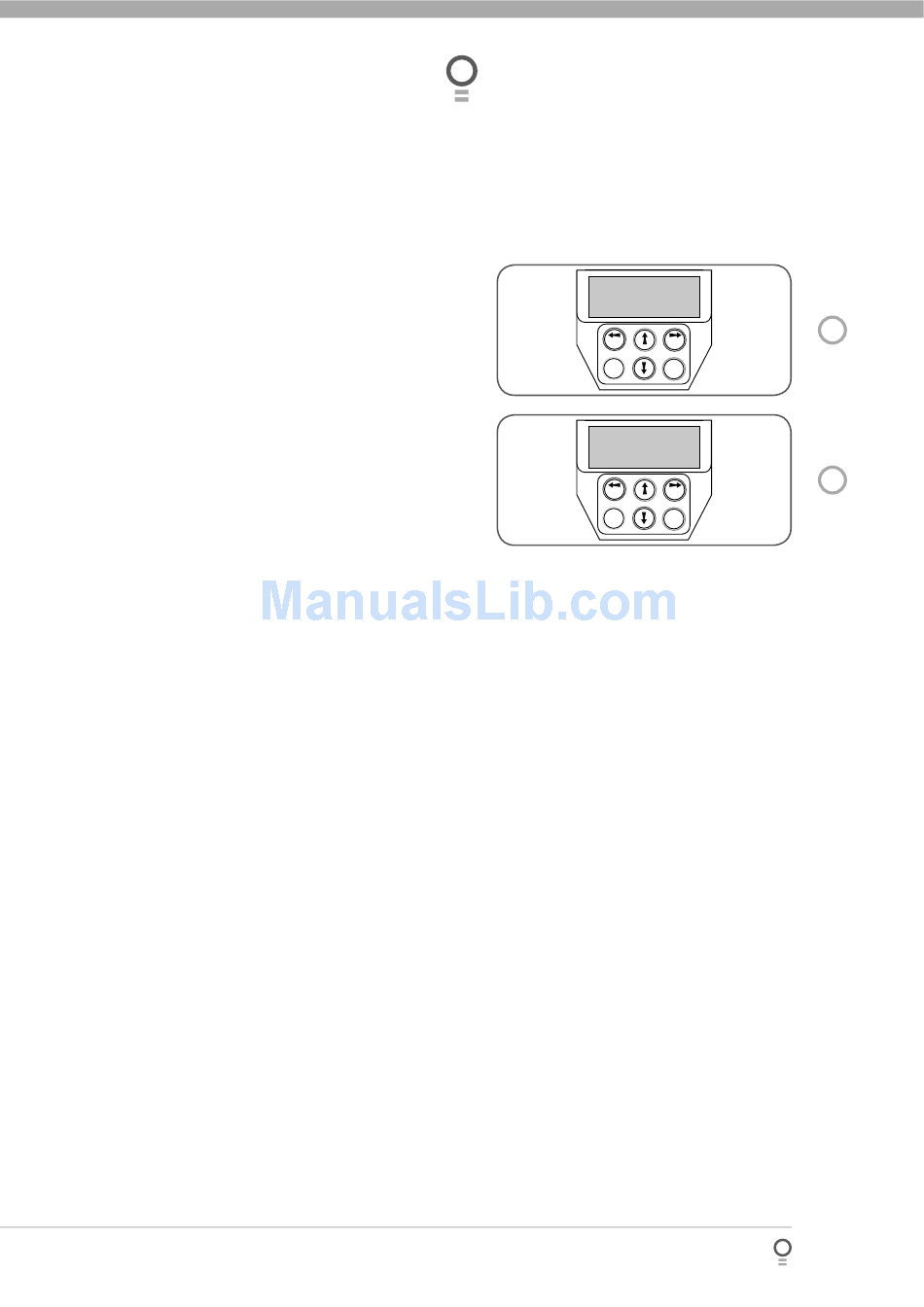

on the MAIN SCREEN (Fig. 44). This tool displays
the current value of the service counter and allows
the user to set its value using the normal parameter
editing techniques (See PARAMETER VIEWING AND
EDITING).
If the service counter is not to be used it can be set to
the maximum number (60,000).

Menu 8.6 Counters

The opener keeps a count of number of times a
particular event occurs. The list of event counters kept
is shown below.
When this tool is selected, the fi rst event counter is
shown (Fig. 45). Press NEXT or PREV to step through
the list.
The example below shows the OPEN CYCLE event
counter with a value of 1234. When fi nished viewing
press EXIT.
1. Open Cycles
2. Close Cycles
3. Ped Cycles
4. Warranty cycles
5. Setup Limits
6. Overlaps
7. M1 Open Obstructions
8. M2 Open Obstructions
9. M1 Close Obstructions
10. M2 Close Obstructions
11. M1 Open Overloads
12. M2 Open Overloads
13. M1 Close Overloads
14. M2 Close Overloads
15. M1 Drive Faults
16. M2 Drive Faults
17. M1 Volt Faults
18. M2 Volt Faults
19. M1 Amp Faults
20. M2 Amp Faults
21. Supply Hi Fault
22. Supply Low Fault
23. M1 Amp Trip Fault
24. M2 Amp Trip Fault
25. Three Wire Limits Fault
Service Counter
(CYCLES)
PREV
EXIT
1:Open Cycles
PREV
EXIT
