Memory Tools

MENU 9
Memory Tools

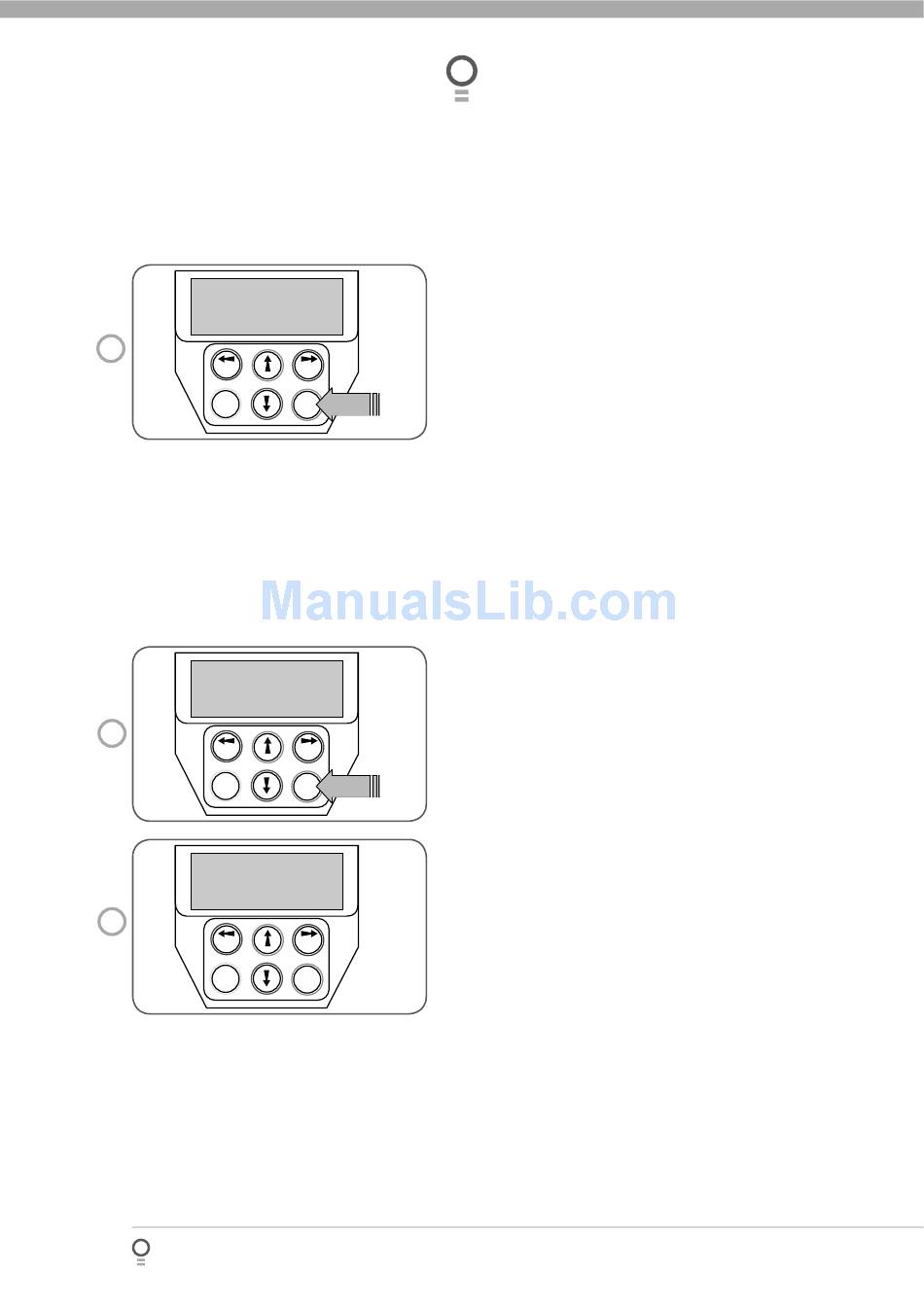

fi g 46
PREV
EXIT

Setting Pedestrian Position

MENU 10.4
Set Pedrestrian
fi g 47
PREV
EXIT
Ped'n Opening
Time
fi g 48
PREV
EXIT
32 Elite® - Swing Gate Opener
The Memory Tools accessed from within Menu 9 are
used to backup, restore or clear the controller. Once
selected, the PREV or NEXT buttons can be used
to view the Memory Tool options. To execute the
displayed option simply press SET (Fig. 46).

Menu 9.1 Clr Control

NEXT
This option will clear the gate control memory and
reload the factory set defaults for parameters such as
SET PRESS
the lock time, light time, Auto-Close times etc. It will
also clear the travel limits.

Menu 9.2 Clr Tx'ers

This option will clear the transmitter storage memory.
DCB-05 can be instructed, via its pedestrian control
feature, to partly open and provide pedestrian access
but prevent vehicle access. This is achieved by partly
opening the motor 1 gate leaf.
If dual motors are used, motor 2's gate leaf is held
closed. The partly open position of motor 1's gate
NEXT
leaf is initially set to fi ve (5) seconds from fully closed
position. This initial position can be adjusted by the
SET PRESS
installer to any position within the gates travel range
by selecting a pedestrian access travel time (from
closed). The setting is accessed from "MENU 10.4 Set
Pedestrian" (Fig. 47).
The time is adjustable in 1 second steps.
5
Step 1. Navigating to "set pedestrian menu"
1. Press PREV to navigate to Menu 10
2. Press SET - MENU 10.1 is displayed.
NEXT
3. Press NEXT to go to MENU 10.4.
4. Press SET to enter Set Pedestrian procedure (Fig.
SET
48).
Step 2. Setting pedestrian position
1. Press OPEN or CLOSE to adjust pedestrian drive time.
2. Press SET to record position
3. Press transmitter coded for pedestrian function or push
Owner Installation Instructions
button wired into pedestrian input to test.
