Automatic Technology Elite Installation Manual page 10

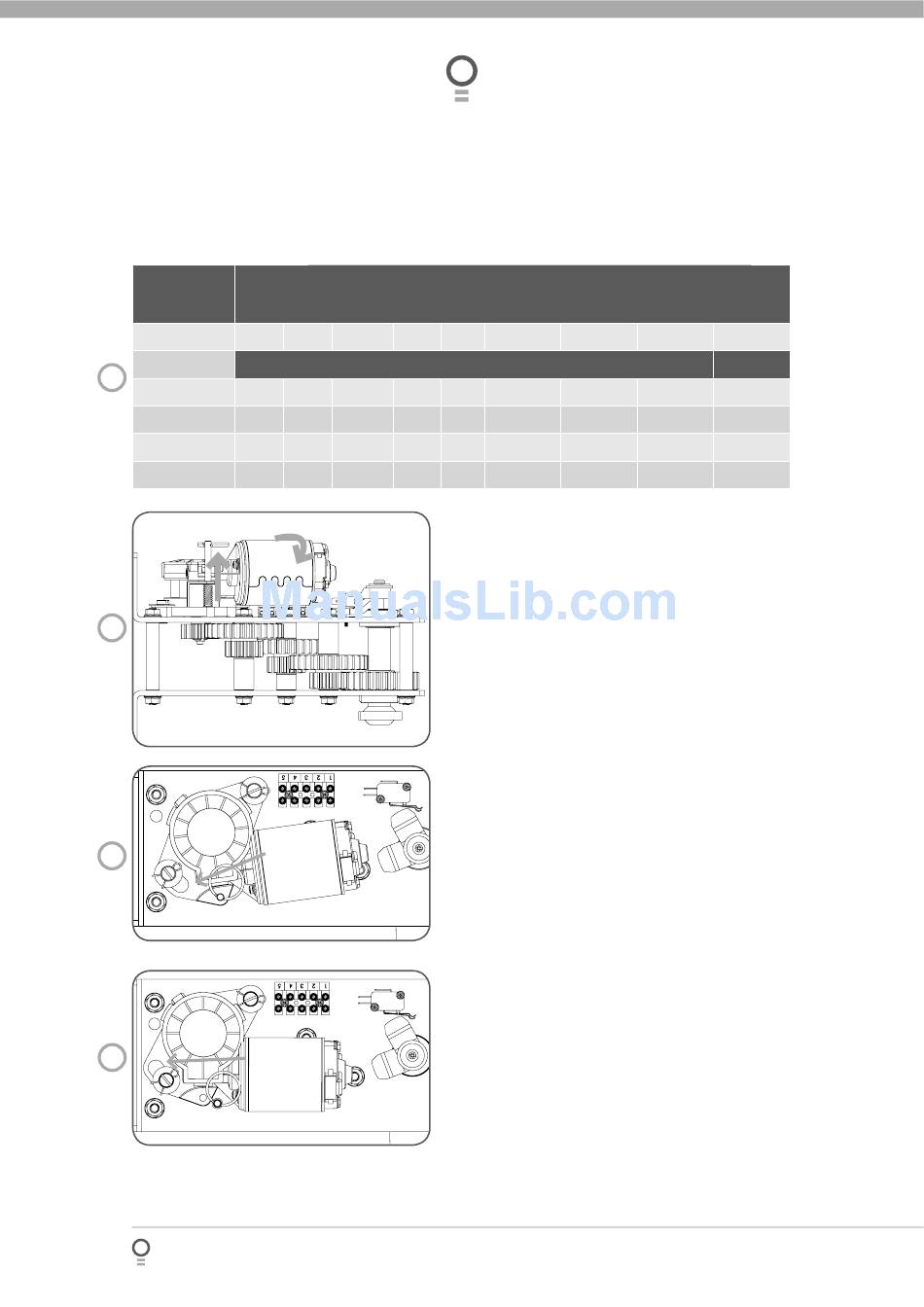

Drive Unit Installation
Mount
Distance
fi g
03
90
120
140
200
fi g 04
fi g 05
fi g 06
10 Elite® - Swing Gate Opener
0 50 100 125
Sideroom clearance
470 470 470 470
450 470 480 470
470 465 470 465
470 465 445 430
Engaged
position
Disengaged
position
Owner Installation Instructions
Hinge Distance
150 180 200
470 470 465
465 460 435
460 440 420
400 350 390
The mount distance for the drive unit and the hinge
distance for the gate can be selected to optimise the
sideroom clearance. See Fig. 03.
NOTE: If the gate is already installed, measure the
hinge distance and use this table to optimise the mount
distance.
1. Mount drive unit using four (4) 10mm loxins or
dynabolts.
2. Make sure that the Drive Unit is mounted at
an appropriate height from the ground - allow
minimum 35mm clearance for drive arm extension.
NOTE: If the gateway slopes away from pier/post, make
sure an allowance is made for clearance of the drive arm
extension and slave arm to not touch the ground.
Manual Operation
Disengage drive motor by pulling manual release pin up
using the release ring. While holding the ring, rotate the
motor assembly clockwise. (Fig. 04, 05 & 06)
To re-engage, pull pin and rotate motor assembly anti-
clockwise until manual release pin clicks into place.
220 mm
460 mm
425 mm
390 mm
250 mm
