Installation -

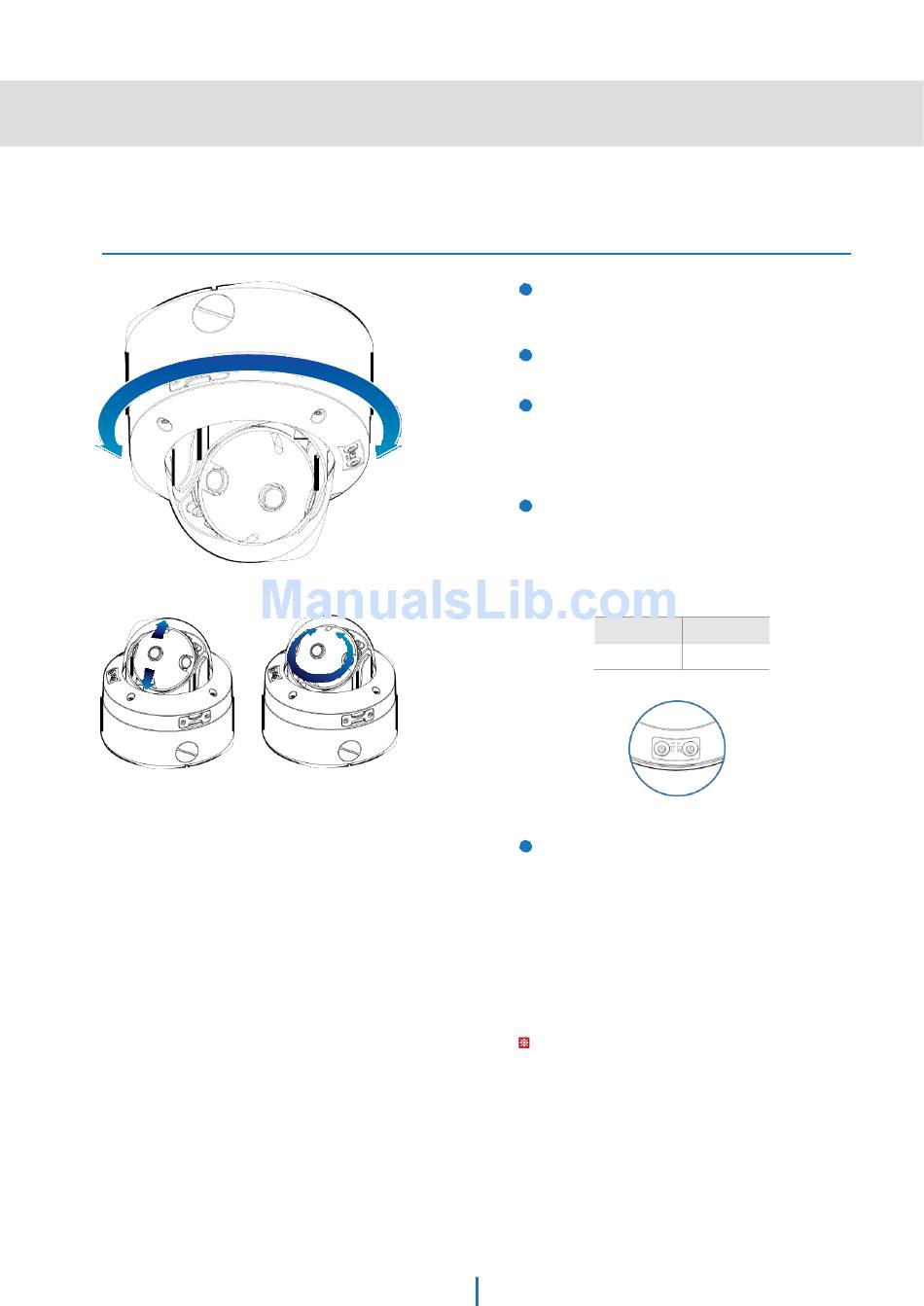

Adjusting the Camera's Pan and Tilt
Lens Tilt
Lens Rotation
8
Pull wires through and make all necessary
6
connections. See 'Cabling' section for more
information.
Connect the camera's main body to the mounting
7
bracket.
Adjust the panning angle of the camera and tighten
8
hard lock set screw to fix the camera. Use the
included six-angle wrench included with the camera
to tighten the screw and secure the camera module
to the mounting bracket.
Adjust the lens' angle by adjusting the controlling
9
screws on the main body. Use the included T-
wrench. The screws located at the base of the
camera dome control the lens' tilt up and down and
its rotation.
Tilting Range Rotating Range
0° ~ 90°
10
When the installation is complete, detach the
protective film from the camera's dome.
Warning:
The camera's lens module can rotate 360¡ at each
direction. Rotating the lens constantly to the same
direction may harm the internal rotation mechanism
and cause the lens' rotation harness to snap.
0° ~ 360°
