Digital Watchdog DWC-PTZ10x User Manual

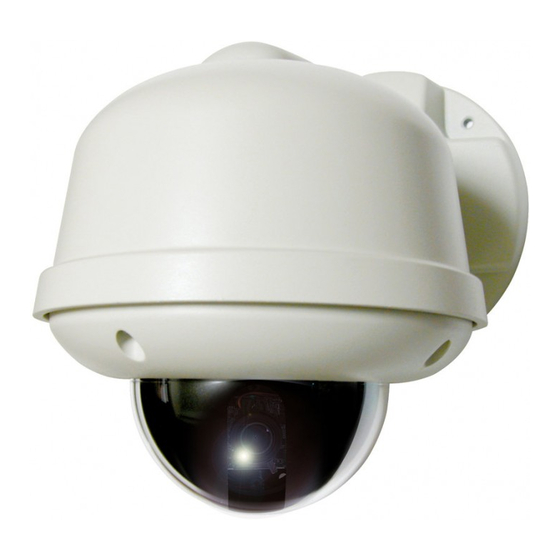

Mini speed dome camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
INSTRUCTION MANUAL
DWC-PTZ10x
Mini SPEED DOME CAMERA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DWC-PTZ10x and is the answer not in the manual?

Questions and answers

Related Manuals for Digital Watchdog DWC-PTZ10x

Summary of Contents for Digital Watchdog DWC-PTZ10x

  • Page 1 INSTRUCTION MANUAL DWC-PTZ10x Mini SPEED DOME CAMERA...
  • Page 2 This exclamation point symbol is intended to alert the user of the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. 2/49 DWC-PTZ10x [Mini SPEED DOME CAMERA] www.Digital-Watchdog.com...

  • Page 3: Important Safeguard

    Avoid installing in places where there are strong magnetic fields and electric signals. Avoid installing in places where the camera would be subject to strong vibrations.  Never expose the indoor version camera to rain and water.  3/49 DWC-PTZ10x [Mini SPEED DOME CAMERA] www.Digital-Watchdog.com...

  • Page 4: Table Of Contents

    General Rules of Menu Operation Main Menu Display Setup Privacy Zone Mask Setup Motion Setup Function Setup Preset Setup Group Setup Pattern Setup Group Setup Schedule Setup Camera Setup System Setup System Initialize ○ Specifications Dimension 4/49 DWC-PTZ10x [Mini SPEED DOME CAMERA] www.Digital-Watchdog.com...

  • Page 5: Introduction

    4 Pattern are memorized to repeat a series of Pan/Tilt, Zoom, and Preset functions that can  be recalled with a command or automatically by a programmed function (Alarm, Schedule, or Power-Up) 5/49 DWC-PTZ10x [Mini SPEED DOME CAMERA] www.Digital-Watchdog.com...
  • Page 6 RS-485 control, max. 256 cameras can be controlled at the same time. [To Be Delete]  Pelco-D/ Pelco-P /Samsung protocol can be selected as a control protocol in the current  version of firmware. (Using the small Dip-switch at the back of the dome camera) 6/49 DWC-PTZ10x [Mini SPEED DOME CAMERA] www.Digital-Watchdog.com...
  • Page 7 OSD menu. For more information, refer to “Reserved Preset” in this manual. In addition to 127 Presets from 1 to 128 can be assigned excluding preset 95 is reserved for  Main Menu Setup 7/49 DWC-PTZ10x [Mini SPEED DOME CAMERA] www.Digital-Watchdog.com...

  • Page 8: Product & Accessories

    INTRODUCTION INTRODUCTION Product & Accessories  Main Product & Accessories  Main Body  Surface Mount Bracket  Accessory  Manual  Terminal Block  Torque Screw Driver 8/49 DWC-PTZ10x [Mini SPEED DOME CAMERA] www.Digital-Watchdog.com...
  • Page 9 INTRODUCTION  Main Product  Main Body  Sun Shield Housing  Accessory  Terminal Block  Torque Screw Driver  Manual  Options  Pendant Mount Bracket  Wall Mount Bracket 9/49 DWC-PTZ10x [Mini SPEED DOME CAMERA] www.Digital-Watchdog.com...

  • Page 10: Parts & Functions

    When you want to install the camera on the surface of hard ceiling, you need to handle the cable through side of the dome. In this case, break the side wall bit and feed the cable through the cable duct. 10/49 DWC-PTZ10x [Mini SPEED DOME CAMERA] www.Digital-Watchdog.com...

  • Page 11: Installation

    The range of ID is 0~255. Factory default of Camera ID is 1.  If you want to control a certain camera, you must match the  camera ID with Cam ID setting of DVR or Controller. 11/49 DWC-PTZ10x [Mini SPEED DOME CAMERA] www.Digital-Watchdog.com...
  • Page 12 Pin 8 is used for ON/OFF of RS-485 Termination. Normally, it  must be OFF state. Especially when you have trouble with long Daisy chain style connection, turn ON this termination switch of last camera. RS-485 Termination Resistor (On/Off)  Pin 8 12/49 DWC-PTZ10x [Mini SPEED DOME CAMERA] www.Digital-Watchdog.com...
  • Page 13 Then, secure the camera in place by tightening the four screws. 4. Carry out the settings and adjustments for the camera. 5. Secure the dome cover by tightening with screws. 13/49 DWC-PTZ10x [Mini SPEED DOME CAMERA] www.Digital-Watchdog.com...
  • Page 14 Surface mount bracket. Then, secure the camera in place by tightening the four screws. 4. Carry out the settings and adjustments for the camera. 5. Secure the dome cover by tightening with screws. 14/49 DWC-PTZ10x [Mini SPEED DOME CAMERA] www.Digital-Watchdog.com...

  • Page 15: Installation Installation

    Pendant mount bracket. Then secure the camera in place by tightening the four screws. 4. Carry out the settings and adjustments for the camera. 5. Secure the dome cover by tightening with screws. 15/49 DWC-PTZ10x [Mini SPEED DOME CAMERA] www.Digital-Watchdog.com...

  • Page 16: Installation Using Wall Mount Bracket

    3. Attach the main unit to the wall mount bracket with the four screws. 4. Carry out the settings and adjustments for the camera. 5. Secure the dome cover by tightening with the screws. 16/49 DWC-PTZ10x [Mini SPEED DOME CAMERA] www.Digital-Watchdog.com...

  • Page 17: Cabling

    Relay COM VIDEO(+) VIDEO(+) Relay Out Relay Out Relay Out Relay Out VIDEO(-) VIDEO(-) Relay NO BNC Video BNC Video Monitor Monitor Monitor Relay Out Relay Out Cabling Terminal Block Cabling Terminal Block 17/49 DWC-PTZ10x [Mini SPEED DOME CAMERA] www.Digital-Watchdog.com...
  • Page 18 23W(MAX)  RS-485 Communication  For PTZ control, connect this line to keyboard and DVR. To control multiple cameras at the same time, RS-485 communication lines are connected in parallel as shown below. 18/49 DWC-PTZ10x [Mini SPEED DOME CAMERA] www.Digital-Watchdog.com...
  • Page 19 There are 4 Alarm Outputs and all of them are Relay contact type. Therefore, you do not have to care about polarity, AC/DC, and isolations between channels. Care must be taken to connect relay power as shown above. 19/49 DWC-PTZ10x [Mini SPEED DOME CAMERA] www.Digital-Watchdog.com...

  • Page 20: Operation

    DVR prior to using camera. (refer to your System keyboard Manual) If controller or DVR has no pattern button or function, use shortcut keys with preset numbers. For  more information, refer to “Reserved Preset” in this manual. 20/49 DWC-PTZ10x [Mini SPEED DOME CAMERA] www.Digital-Watchdog.com...

  • Page 21: Starting Osd Menu

    : Sets all Privacy Mask Display to ON <Go Preset> [167] : Zoom Proportional Jog ON <Set Preset>[167] : Zoom Proportional Jog OFF <Go Preset> [195] : Heater ON (Turn off after 5mins and switch to Auto mode) 21/49 DWC-PTZ10x [Mini SPEED DOME CAMERA] www.Digital-Watchdog.com...
  • Page 22 : Fan ON (Turn off after 5mins and switch to Auto mode) <Go Preset> [198] : Fan OFF (Turn off and switch to Manual mode) <Go Preset>[200] : Digital Zoom ON <Go Preset>[201] : Digital Zoom OFF 22/49 DWC-PTZ10x [Mini SPEED DOME CAMERA] www.Digital-Watchdog.com...

  • Page 23: Preset

    To set Scan, use OSD menu.  Run Scan Method1) <Run Scan> [Scan NO.] [Enter] Method2) <Go Preset> [Scan NO.+140] ex) Run Scan 2 : <Go Preset> [142]  Delete Scan To delete Scan, use OSD menu. 23/49 DWC-PTZ10x [Mini SPEED DOME CAMERA] www.Digital-Watchdog.com...

  • Page 24: Pattern

    Run Pattern 2: <Go Preset> [132] NO.+130]  Delete Pattern Use OSD menu to delete a Pattern.  When the pattern is saved or executed, the PAN/TILT is operated with Auto Flip OFF mode. 24/49 DWC-PTZ10x [Mini SPEED DOME CAMERA] www.Digital-Watchdog.com...

  • Page 25: Group

    <Run Pattern> [Group ex) Run Group 7 : <Run Pattern> [27] NO.+20] Method2) <Go Preset> [Group ex) Run Group 7 : <Go Preset> [157] NO.+150]  Delete Group Use OSD Menu to delete. 25/49 DWC-PTZ10x [Mini SPEED DOME CAMERA] www.Digital-Watchdog.com...

  • Page 26: Schedule

    The initial time and day setup is essential for proper Schedule function.  Set Schedule Use OSD Menu to create a Schedule  Run Schedule Use OSD Menu of Schedule Master Enable  Delete Schedule Use OSD Menu to Delete. 26/49 DWC-PTZ10x [Mini SPEED DOME CAMERA] www.Digital-Watchdog.com...

  • Page 27: Other Functions

    This is helpful to get well-focused image in a short time. 27/49 DWC-PTZ10x [Mini SPEED DOME CAMERA] www.Digital-Watchdog.com...

  • Page 28: Osd Display Of Main Screen

    Ex) When Point 2 of inputs are ON, and Output 1 is On, OSD will show as below  Image Flip Shows that images are currently reversed by Auto Flip Function.  Temperature Current Temperature: Boxed “C” and “F” means Celsius and Fahrenheit  Date/Time Displays Current Date and Time. 28/49 DWC-PTZ10x [Mini SPEED DOME CAMERA] www.Digital-Watchdog.com...

  • Page 29: How To Use Osd Menu

    Auto Pan, Pattern, Scan and Schedule.  Camera Setup Configure Camera related functions and data.  System Setup Configure for Basic system setup.  System Initialize Initializes system configuration and sets all data to factory default configuration. 29/49 DWC-PTZ10x [Mini SPEED DOME CAMERA] www.Digital-Watchdog.com...

  • Page 30: Display Setup

    AUTO ALARM I/O AUTO DATE/TIME  PTZ Information [ON/OFF/AUTO] TEMERATURE CELSIUS <PRIVACY ZONE> BACK  Action Title [ON/OFF/AUTO] EXIT  Preset Label [ON/OFF/AUTO]  Alarm I/O [ON/OFF/AUTO]  Date/Time [ON/OFF]  Temperature [CELSIUS/FAHRENHEIT/OFF] 30/49 DWC-PTZ10x [Mini SPEED DOME CAMERA] www.Digital-Watchdog.com...

  • Page 31: Privacy Zone Mask Setup

     To hide a certain zone completely regardless of high speed PT motions, it is recommended that the size of mask must be 20% bigger than original 31/49 DWC-PTZ10x [Mini SPEED DOME CAMERA] www.Digital-Watchdog.com...

  • Page 32: Motion Setup

    This allows for smooth transition from one preset scene to another. Preset freeze also reduces bandwidth when used with digital network systems such, and guarantees that blanked areas will not be revealed when going to a preset. 32/49 DWC-PTZ10x [Mini SPEED DOME CAMERA] www.Digital-Watchdog.com...
  • Page 33 [Normal OPEN(N.O) / Normal CLOSE](N.C)] Sets sensor input type. BACK  Alarm Action [NOT USED/HOME/PRESET 1~128/SCAN EXIT 1~8, PATTERN1~4, SCAN 1~4] For each Alarm input, you can assign counteraction functions (Preset, Auto Pan, Pattern and Scan). 33/49 DWC-PTZ10x [Mini SPEED DOME CAMERA] www.Digital-Watchdog.com...

  • Page 34: Function Setup

    7 rules of Schedule can be assigned by day and time. Appropriate actions (such as Home, Preset, Auto Pan, Pattern and Scan) can be defined for each rule. Also, it is possible to use Weekday and Weekend in a 34/49 DWC-PTZ10x [Mini SPEED DOME CAMERA] www.Digital-Watchdog.com...

  • Page 35: Preset Setup

    Relay Output can be linked with Preset run. The character “-“means disable while the number “1” representing each bit means Ex) If it is set to “1”, Output relay will be ON whenever you call this Preset 35/49 DWC-PTZ10x [Mini SPEED DOME CAMERA] www.Digital-Watchdog.com...
  • Page 36 (" "). After completing the Label editing, move cursor to "OK" and ③ press NEAR key to save completed label. To abort current change, move cursor to "Cancel" and press NEAR key. 36/49 DWC-PTZ10x [Mini SPEED DOME CAMERA] www.Digital-Watchdog.com...
  • Page 37 360 in CW direction and then it turns on its axis by 360 in CCW direction.  APAN Speed [1/sec ~180/sec] Sets Auto Pan speed from 1/sec to 180/sec.  Clear APAN [CANCEL/OK] Deletes current Auto Pan data. 37/49 DWC-PTZ10x [Mini SPEED DOME CAMERA] www.Digital-Watchdog.com...
  • Page 38 Maximum 1200 communication commands can be stored in a pattern. ③ To save data and exit, press NEAR key. To cancel recording and delete record data, press FAR key. 38/49 DWC-PTZ10x [Mini SPEED DOME CAMERA] www.Digital-Watchdog.com...

  • Page 39: Group Setup

    (2~360) when preset is selected. It should number of repeat when Pattern or Swing be the number of repetition (1~255) when is selected in Action Pattern or Auto Pan is selected for Action 39/49 DWC-PTZ10x [Mini SPEED DOME CAMERA] www.Digital-Watchdog.com...
  • Page 40 NO. ACTION ### DWELL OPT -------------------------- Then cursor should be moved to “SAVE.” Press Near key to 1 1 PRESET 1 00:03 360 save data. 2 NONE 3 NONE 4 NONE 5 NONE -------------------------- SAVE CANCEL 40/49 DWC-PTZ10x [Mini SPEED DOME CAMERA] www.Digital-Watchdog.com...

  • Page 41: Schedule Setup

    * Note: If rules conflict with each other, the higher the number is, 6 UNDEFINED the higher priority it has. 7 UNDEFINED BACK * Note: If you assign undefined function, there will be no action. 41/49 DWC-PTZ10x [Mini SPEED DOME CAMERA] www.Digital-Watchdog.com...

  • Page 42: Camera Setup

    To display Upside down image.  White Balance Setup  WB Mode [AUTO/MANUAL] In Manual mode, Red and Blue level can be set up manually.  Red Adjust [10~60]  Blue Adjust [10~60] 42/49 DWC-PTZ10x [Mini SPEED DOME CAMERA] www.Digital-Watchdog.com...
  • Page 43 [AUTO(2~128)/OFF] Activates Slow Shutter function when luminance of image (signal) is too dark. It is possible to set up the maximum number of frames piled up one on another by Slow Shutter function. 43/49 DWC-PTZ10x [Mini SPEED DOME CAMERA] www.Digital-Watchdog.com...

  • Page 44: System Setup

    You can define a 4 characters long password. If this function is set to ENABLE, it is required to type this password whenever to enter OSD MENU. It is noted that MASTER PSSWORD : “4321” 44/49 DWC-PTZ10x [Mini SPEED DOME CAMERA] www.Digital-Watchdog.com...
  • Page 45 However, even in this case, you can reuse the data if you redefine Set Home Position on the previous Home position. It is recommendable to memorize the target scene of current Home position. 45/49 DWC-PTZ10x [Mini SPEED DOME CAMERA] www.Digital-Watchdog.com...

  • Page 46: System Initialize

    Jog Direction NORMAL Preset 1~128 Undefined Freeze In Preset Scan 1~8 Undefined Park Action Pattern 1~4 Undefined Alarm I/O Action Group 1~8 Undefined Schedule 1~7 Undefined  Communication Setup Protocol AUTO Baud Rate 9600 46/49 DWC-PTZ10x [Mini SPEED DOME CAMERA] www.Digital-Watchdog.com...

  • Page 47: Specifications

    1.85 Kg Operating -10C ~ 50C Temp. * Specifications of this product are subject to change without notice. ** Check the voltage and current capacity of rated power carefully. 47/49 DWC-PTZ10x [Mini SPEED DOME CAMERA] www.Digital-Watchdog.com  Wall Mount...
  • Page 48 SPECIFICATIONS Dimension  Surface Mount  In ceiling Mount  Wall Mount Unit (mm) 48/49 DWC-PTZ10x [Mini SPEED DOME CAMERA] www.Digital-Watchdog.com...
  • Page 49  Pendant Mount 49/49 DWC-PTZ10x [Mini SPEED DOME CAMERA] www.Digital-Watchdog.com...
