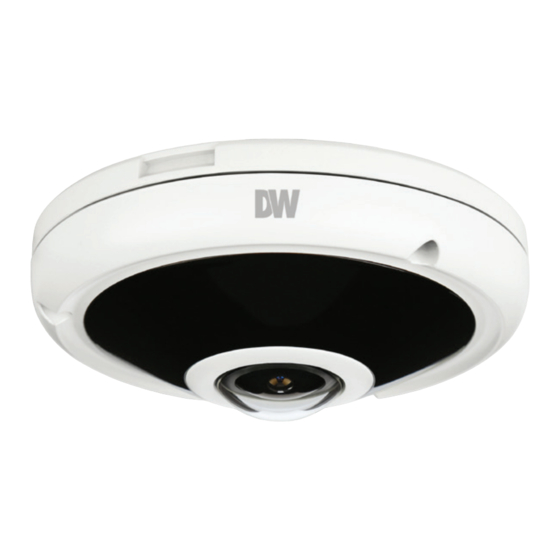

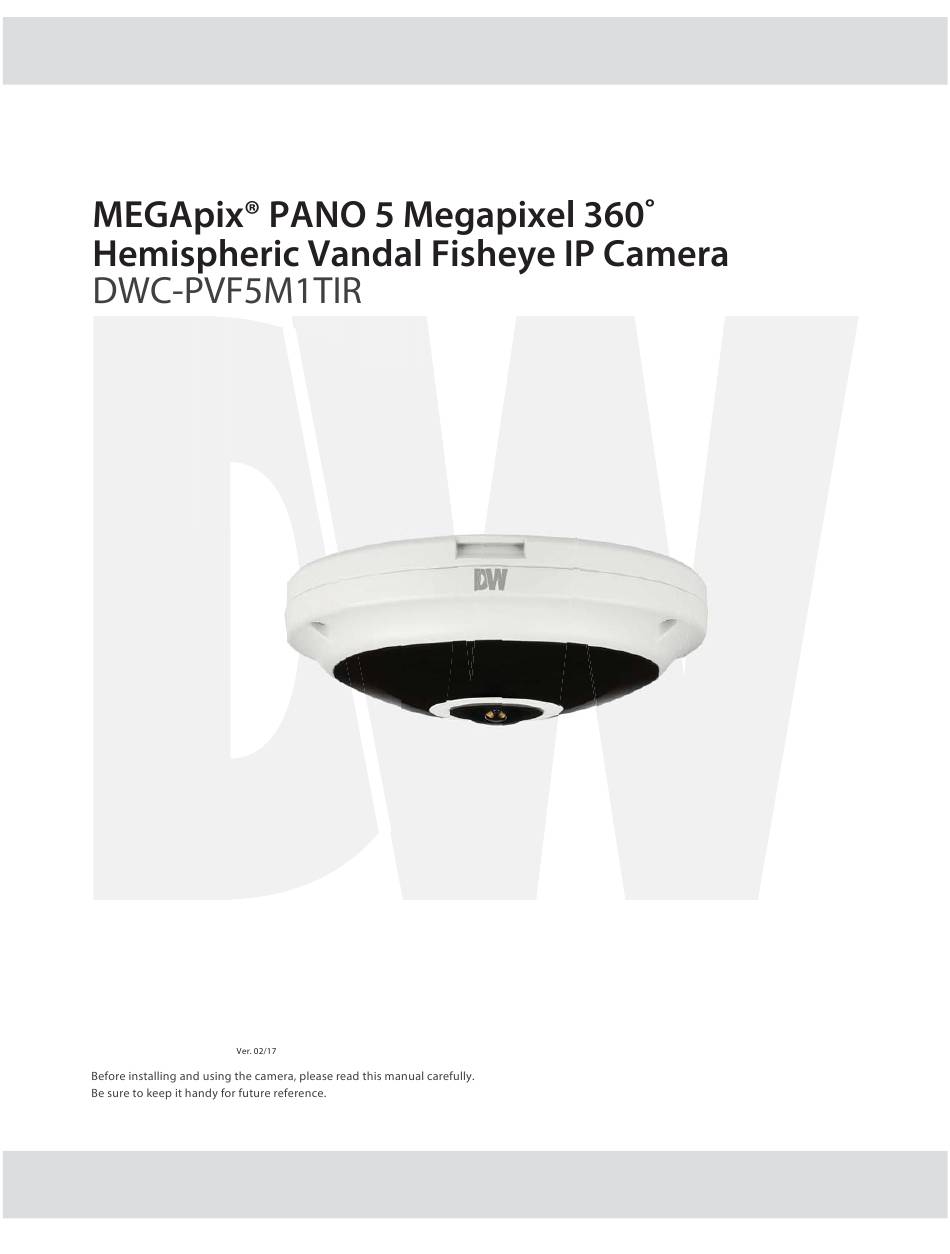

  • Page 1 User’s Manual...
  • Page 4 49 2 59 5...

  • Page 5: Product And Accessories

    Introduction - Product & Accessories Torx Wrench Screw & Camera Cables Plastic Anchor-3pcs Mount Bolt & Nut Mount Plate Quick Manual Template Sheet Template Sheet for Installing by Bolt & Nut for Installing by Plate Waterproof cap & Gasket...
  • Page 6 Introduction - Part Name Fisheye lens Window cover Reset button SD Card Slot RJ-45 Connector DC Power Jack Waterproof cap Mount Plate Plate Hook...

  • Page 7: Disassemble The Camera

    Installation - Disassemble the camera Before installing your camera, you have to read the following cautions. 2. Don’t let the cable to be caught in improper place or the electric line cover to be damaged. Otherwise 3. When installing your camera, don’t allow any person to approach the installation site. If you have any valuable things under the place, move them away.

  • Page 8: Installation

    Installation - Installation Template Sheet Detach the camera’s cover dome from the camera’s module by unscrewing the three cover dome screws using the L-wrench. Use the camera or mounting template to mark and drill the necessary holes in the wall or ceiling. Pull wires through and make connections.
  • Page 9 Installation - Installation Using Mount Plate Detach the camera’s cover dome from the camera’s Template Sheet module by unscrewing the three cover dome screws. Using the metal mount plate, mark and drill the necess -ary holes in the wall or ceiling. Pull wires through and make connections.
  • Page 10 Installation - Installation Using Mount Bolt & Nut Using the template sheet, make and drill the cabling holes on the wall/ceiling. Secure the two long mounting screws to the camera’s base. Pass the wires through the mount bracket and make all necessary connections.
  • Page 11 Installation - Installation Using Mount Bolt & Nut Mount the camera to the mounting surface by using the 2 mounting nuts. Rotate the locking discs over the screws until the camera is held tightly from the mount -ing surface. Secure the camera’s cover dome onto the camera base to complete the installation.
  • Page 12 Installation - Cabling Two Options Use a PoE-enabled switch to connect data and power through a single cable and begin viewing and recording images instantly. A non-PoE switch will require an adaptor for power transmission. 1. Using a PoE-Enabled Switch 2.

  • Page 13: Inserting/Removing An Sd Memory Card

    Installation - Inserting/Removing an SD Memory Card The memory card is an external data storage device that has to record and share video, audio, and text data using digital devices. Micro Recommended SD Card Specification (Not Included) Reset button - Type: Micro SD (SDHC/SDXC) - Manufacturer: Transcend, Kingston, Toshiba, SanDisk - Capacity: 4GB~128GB SD card slot...

  • Page 15: Network Setup

    Network Setup - Quick Start of Network Connection Please follow the steps below to complete Access your IP Camera via the Internet : the initial setup of the network function. If you use a static IP address assigned by your ISP 1) Open Internet Explorer.

  • Page 16: Ddns Registration

    Network Setup - DDNS Registration If you have DYNAMIC IP service from your Internet Service Provider (ISP), you can’t tell the current IP address of the IP Camera. To solve this problem, you have to register to our DDNS service. t, you have to check if you are using dynamic addressing.

  • Page 17: Guide To Network Environment

    Network Setup - Guide to Network Environment Please configure the IP Camera at the 5. The following descriptions are several basic network scenarios. Determine which scenario describes your network. installation site. You must determine your If your network does not match one of the scenarios below network scenario in order to configure the IP and you are unsure how to setup your IP Camera, contact Camera with the proper TCP/IP settings.
  • Page 18 Network Setup - Setup Case A, B Case A: as follows : Dynamic IP + Personal Router [Most SOHO] Network Type : STATIC (even though you have Dynamic IP from your ISP, use STATIC on the IP Camera) Camera Internet Address : A private IP address such as 192.168.0.200 (Example) You need to assign an IP address to the IP Camera just as you do...
  • Page 19 Network Setup - Setup Case C, D Case C: Case D: Static(Fixed) IP [Dedicated line directly Dynamic IP + DSL/Cable Modem [Connected to the IP Camera] directly to the IP Camera] Camera Camera Phone Line or CATV Cable/xDSL Modem (ISP Provided) Public Line Gateway or Router at ISP...

  • Page 20: Port Forwarding

    Network Setup - Port Forwarding After entering the correct TCP/IP settings, you are ready for ‘Port Forwarding’(Cases A, B). Please record the TCP/IP settings of your IP Camera for future reference. You may need this information to access your IP IP Camera TCP/IP Settings IP Address Subnet Mask...

  • Page 21: Starting Ip Camera

    Network Setup - Starting IP Camera After forwarding correctly the Web Port, through your router (if applicable), install the IP Camera in a proper location. Locate the serial number located on the label attached to the bottom of the IP Camera, you will need this for DDNS registration.

  • Page 22: Basic Screen

    Web Viewer Screen - Basic Screen Below “Menu”is supported in accordance with models. Web viewer is optimized with explorer10 or above version and Firefox. PTZ Control If VLC is not installed or VLC plugin is not supported (Chrome), This camera model does not supports the zoom and focus. Live buffering and Channel select menu on 3, 4 will be changed to Live Viewer menu, and then if HTML5(MJPEG) is selected on Preset...

  • Page 23: Video Configuration

    Setup - Video & Audio Setup Video Configuration Detail Page When you selects an item from the menu, you can set the details for the selected item. Setup Constitution Video&Audio [ VIDEO, OSD, ROI, PRIVACY MASK ] Camera [ IMAGE ADJUSTMENT, EXPOSURE, DAY&NIGHT, BACKLIGHT, WHITE BALANCE, IMAGE, VIDEO ] Network [ STATUS, NETWORK SETTING, AUTO IP, ONVIF, UPNP,...
  • Page 24 Setup - Video & Audio Setup Video Configuration Resolution Live Video Channel Setup Select the video resolution. The video can be configured to variety settings with a combination of codec and resolution. Available resolution can be depends on the codec setup between The camera performance has to be considered when setting the channels.
  • Page 25 Setup - Video & Audio Setup Video Configuration Smart Bitrate Control GOP(Group of Pictures) Size Set up the number of frames (P-frame) which contain only changed information based on basic frame (I-frame). Regarding videos with lots of movement, if you set GOP size Does not use the Smart Bitrate Control.
  • Page 26 Setup - Video & Audio Setup Video Configuration Bitrate Mode Extension Option Select the bit rate control scheme of video compression from CBR (Constant Bit Rate) or VBR (Variable Bit Rate). Does not use the extension option. SVC-T On To guarantee the designated constant bit rate, the quality Scalable video coding is a type of video encoding algorithm of video are controlled in this mode.

  • Page 27: Osd Configuration

    Setup - Video & Audio Setup OSD Configuration Date / Time Display the current time. User Text Output the TEXT entered by the user. Support a maximum of 30 characters. Click ‘Apply’ to make above setting effective.
  • Page 28 Setup - Video & Audio Setup Region of Interest Configuration Region of interest function gives much more efficiency picture quality for indicated area to improve picture qualities of movement scene at the same bandwidth. Stream Select the Stream. Currently it supports only Channel1. Activation The Region of interest can be enable or disable.

  • Page 29: Privacy Mask Configuration

    Setup - Video & Audio Setup Privacy Mask Configuration Use this function to mask areas that you want to hide on screen to protect privacy. Activation The Privacy mask function can be enable or disable. Area Select the Area1 ~ Area4 and Set the privacy area. Click ‘Save’...
  • Page 30 Setup - Camera Setup Camera Image Adjustment Sharpness Saturation Using this control, sharpness of image can be adjusted Using this control, Saturation of image can be adjusted to meet your preference. to meet your preference. Brightness Using this control, brightness of image can be adjusted Using this control, Hue of image can be adjusted to meet your preference.
  • Page 31 Setup - Camera Setup Camera Exposure Settings Auto Exposure Slow Shutter Level Automatic exposure(AE) automatically sets the aperture or Slow shutter Level lets you adjust the amount of light striking shutter speed, based on the external lighting conditions the sensor, and essentially determines when the video sensor for the photo.
  • Page 32 Setup - Camera Setup Camera Day & Night Settings Day & Night Transition Time Auto: In this mode, the IR cut filter is removed automatically If it is set to Auto, to determine the rate at which depending on the light condition around. Day / Night is converted.

  • Page 33: Camera White Balance

    Setup - Camera Setup Camera White Balance Activation RGB Gain White Balance can be enable or disable. The R/G/B gain can be set only when the White Balance Mode is set to Manual. White Balance Mode Select White Balance depending on the lighting conditions. Click ‘Save’...
  • Page 34 Setup - Camera Setup Camera Image Enhancement 3D Noise Reduction 3DNR function enables to suppress noise and retain good video quality in low light conditions. Mirror Reverse the video from side to side. Flip Reverse the video from up to down. Click ‘Save’...

  • Page 35: Video Enhancement

    Setup - Camera Setup Video Enhancement Flicker This function Enable to enhance the flicker situation. Click ‘Save’ to save the current settings. Click 'Cancel' to return to the previous setting. Click 'Default' to settings to the factory defaults.

  • Page 36: Setup - Network Setup

    Setup - Network Setup Network Status This menu will show you all the information of Network setting in the camera. However, you cannot change those here.

  • Page 37: Network Settings

    Setup - Network Setup Network Settings Network Type Preferred DNS Server Define network IP address type from the Static Mode for the Define the DNS server IP address. Format is same as the IP address. fixed IP or the Dynamic Mode by the dynamic IP address. If you select the Static Mode, you must fill out IP Address, Subnet Mask, Gateway, DNS Server and all ports.
  • Page 38 Setup - Network Setup Auto IP Settings General Setting Auto IP Settings function can be enable or disable. Auto IP Settings Information It displays the unique id or Auto IP address. Click ‘Apply’ to make above setting effective.

  • Page 39: Onvif Settings

    Setup - Network Setup ONVIF Settings Authentication None: Allows to access without ONVIF authentication. WS - Usertoken: Allows to access with WS-User Token of ONVIF authentication. WS - Usertoken + Digest: Allows to access with WS-User Token and Digest of ONVIF authentication. Discovery Mode The discorvery function can be enable or disable.

  • Page 40: Upnp Settings

    Setup - Network Setup UPNP Settings General Setting UPNP function can be enable or disable.  Friendly Name Define the friendly name. Click ‘Apply’ to make above setting effective.

  • Page 41: Ddns Settings

    Setup - Network Setup DDNS Settings DDNS Disable If it is selected, DDNS service does not work. Public DDNS To use public DDNS service, select a site address listed in the list. After filling out the Host Name of the site, the setup is completed by entering User Name and Password registered in that DDNS site.
  • Page 42 Setup - Network Setup FTP Settings To transfer / save the image to the relevant sites through FTP, Password then FTP needs to be setup. Define Password to access to the FTP Server. Fill out the correct Password registered in the FTP Server. General Setting FTP function can be enable or disable. ...

  • Page 43: Smtp Settings

    Setup - Network Setup SMTP Settings To send / save the image to the relevant sites by Email, SMTP Password needs to be setup. Define the Password to access to SMTP Server. Fill out the correct Password registered in the SMTP Server. General Setting SMTP function can be enable or disable.

  • Page 44: Snmp Settings

    Setup - Network Setup SNMP Settings SNMPv1/SNMPv2 Authentication Algorithm Select the SNMPv1/SNMPv2 option and type the names of Select MD5 or SHA as the authentication method. Read community and Write community. Authentication Password SNMP trap can be used to check periodically for operational The Authentication Password is an encryption for thresholds or failures that are defined in the MIB.
  • Page 45 Setup - Network Setup RTSP Information Target Stream Select the channel you want to set. Time out Set the RTSP time out. The session is disconnected after the specified time out. RTP Multicast Check RTP Multicast On/Off. To activate RTP Multicast, 1.
  • Page 46 Setup - Trigger Action Setup Action Rules Configuration Action rules List It indicates the custom action rule information added to Action rules list. Click ‘Add’ to add custom action rules. Click ‘Modify' to modify selected item from the action rules list. Click 'Delete' to delete selected item from the action rules list.
  • Page 47 Setup - Trigger Action Setup Action Rules Add / Modify Name Define name of action rules. Action1 ~ Aciton5 Select the action to take If the event occurs. Click ‘Save’ to save the current settings. Click 'Cancel' to return to the previous menu.
  • Page 48 Setup - Trigger Action Setup Image Transfer Configuration Pre / Post Alarm Image Image Transfer due to event is configured by setting Image transfer rate and Pre / Post alarm duration. Descriptions Number Define Number of image transferred per second. of Image Pre-alarm Define duration of image transfer before an event.
  • Page 49 Setup - Event Setup Event Rules Configuration Event Rules List It indicates the custom Event Rule information added to Event Rules list. Click ‘Add’ to add custom event rules. Click ‘Modify' to modify selected item from the event rules list. Click 'Delete' to delete selected item from the event rules list.
  • Page 50 Setup - Event Setup Event Rules Configuration Name Define the Event rule name. Event Condition Select the event among motion detection, schedule. Click 'Cancel' to return to the previous setting. You need a event one more. Rules Select the action rule defined in the Trigger Action-Action rule menu.

  • Page 51: Motion Detection Configuration

    Setup - Event Setup Motion Detection Configuration Sensitivity Motion Detection Define the sensitivity of motion detection. If High value is It shows the Motion event status. selected, it will detect very small motion while it becomes Event Alert Icon( ) appears if ‘Motion Detection’ is activated. relatively insensitive when Low value is selected.
  • Page 52 Setup - Event Setup Temperature Mode Select the either Fahrenheit and Celsius. Threshold Temperature It indicates the current temperature of the IP camera. Click ‘Apply’ to make above setting effective.

  • Page 53: Record Configuration

    Setup - Record Setup Record Configuration Target Stream Select the channel you want to record video. Click ‘Save’ to save the current settings. Recording List Display the information about the recording settings. Click ‘Modify’ to modify the selected item in the recording list.
  • Page 54 Setup - Record Setup Record Configuration Enabled The Recording function can be enable or disable. File Type Select the recording file type. Currently only supports Ts Type. Storage Select the storage type. Continous If continous mode is turned on, Start the continuous recording without any other setting.

  • Page 55: Recording List

    Setup - Record Setup Recording List Filter Select the date / time, event, sort or storage format to filter the recorded video. Click the 'Refresh' button to refresh the records list. Click 'Filter' to view the filtered recorded video. Recording List Dispaly the information to the recording video.

  • Page 56: Recording Video

    Setup - Record Setup Recording Video Recording Video Viewer Play the recorded video. Recording Video Information Display the information about the recorded video. Click 'Replay' to view the recorded video again. Click 'Back' to return to the previous menu.

  • Page 57: Storage Configuration

    Setup - Record Setup Storage Configuration Display the SD card information mounted from device. When you select the item in Storage list, You can set the functions related to the SD card.
  • Page 58 Setup - Record Setup Storage Configuration Unmount Storage Size remove the SD card from the device. Total capacity of SD card and the remainder of it are displayed. Format Auto Delete Delete the all contents that stored in SD card. Select the period for Auto delete. The image data stored before period will be deleted automatically.

  • Page 59: Ip Address Filter Configuration

    Setup - Security Setup IP Address Filter Configuration IP Address Filter IP filter function can be enable or disable. IP Filter Type Select the recording IP filter type. Click ‘Apply’ to make above setting effective. Filter IP Address Display the filterd IP address. IP Address Define the IP address you want to apply the IP filter.
  • Page 60 Setup - Security Setup RTSP Authentication Configuration RTSP Authentication RTSP Authentication can be enable or disable. Click ‘Apply’ to make above setting effective.

  • Page 61: Ieee 802.1X Configuration

    Setup - Security Setup IEEE 802.1X Configuration The feature is needed when connecting the camera to the Password network protected by the IEEE 802.1X. Type the Password to identify the client in the IEEE 802.1X authentication server. IEEE 802.1x The IEEE 802.1x feature can be enable or disable. Verify Verify Password.
  • Page 62 Setup - Security Setup HTTPS Configuration HTTPS encrypts session data over SSL or TLS protocols instead of using plain text in socket communications. Certificate Select an installed certificate. If you can not select a certificate, please install the certificate from the Security->Certificates menu. HTTPS connection Policy Select one of “HTTP”, “HTTPS”, “HTTP and HTTPS”...
  • Page 63 Setup - Security Setup Certificates Configuration Server/Client Certificates Install Certificate It show the installed. Install Certification Create Self-Signed Certificate CA Certificate A self-signed SSL certificate is an identity certificate signed It show the installed CA certificates. by its own creator. but they are considered to be less trust -worthy.
  • Page 64 Setup - Security Setup Certificates Configuration Detail for Install Certification. Cancel Cancel install certificate and then back to certificates configuration. Certificate From Signing Request Select to install signed certificate returned from the CA. Detail for Install CA Certification. Certificate And Private Key Select to install Certificate And Private Key to install a certi Certificate Name -ficate and private key.

  • Page 65: Service Configuration

    Setup - Security Setup Service Configuration Telnet The Telnet function can be enable or disable. Click ‘Apply’ to make above setting effective.

  • Page 66: System Information

    Setup - System Setup System Information System Capability information. Device Name You can define the device name. Click ‘Apply’ to make above setting effective.

  • Page 67: Firmware Update

    Setup - System Setup Firmware Update Warning: Version Information 1. Do not turn off the power of camera during the Firmware It shows the current Firmware Version in the system. update. Otherwise, the system can be stuck to be unstable. If updating is finished, the system will be rebooted Web Update Select the Firmwar file in your computer by clicking...
  • Page 68 Setup - System Setup Firmware Update FTP Server Address Password Define FTP Server IP Address. If IP Address form is incorrect, Define Password to access to the FTP Server. Fill out the a Message box will be shown to try again. correct Password registered in the FTP Server.

  • Page 69: Date And Time Settings

    Setup - System Setup Date & Time Settings TimeZone Setup Synchronize with time server(NTP) Choose TimeZone for camera. It will be activated after Choose time server available to connect to current camera. clicking ‘Apply’ button. Date & Time will be updated automatically every hour Prior to setting below ‘New Camera Date &...

  • Page 70: Dst Settings

    Setup - System Setup DST Settings Daylight Saving Time (DST) is the practice of setting the clocks forward one hour from standard time during the summer months, and back again in the fall, in order to make better use of natural daylight. General Setting DST function can be enable or disable.

  • Page 71: Users Management

    Setup - System Setup Users Management Users Modify List all the user accounts for authentication. Modify the information of the user accounts registered. For admin account, only Password function can be modified. Register a new user Delete Delete the selected user account. Admin account cannot be deleted.

  • Page 72: System Log

    Setup - System Setup System Log Filter Select a date, sort or type of log to filter the log. Click the 'Refresh' button to refresh the log list. Click 'Filter' to view the filtered log. System Log List The filtered log is displayed.

  • Page 73: Factory Reset

    Setup - System Setup Factory Reset Reset to the factory defaults Return the setup to the factory default. Reset all Settings to the factory defaults. Except Network Settings Except Network related settings , reset all others to the factory default. Click ‘Apply’...
  • Page 74 Setup - System Setup Restart...
  • Page 75 Appendix A : Current TCP/IP Settings If your IP settings are obtained automatically, you could use the MS-DOS prompt (or Command Prompt) to determine your IP address. For information on how to do this, please read the FAQ. 1. Windows 7 Users 2.

  • Page 76: B : Changing Ip Address And Subnet Mask

    Appendix - B : Changing IP address and subnet mask 1. Windows 7 Users 2. Windows 10 Users Start Start Control Panel Settings Network and Network & Internet sharing center Click on Change adapter options in Manage network Ethernet connections Select the Ethernet, Properties Right click and...

  • Page 77: C : Port Forwarding

    Appendix - C : Port Forwarding After assigning the IP Camera a web server For Linksys BEFSR41 Cable/DSL routers: port and video server port you must use Port 1) Open a web browser and type http://192.168.1.1 into you Forwarding. (for cases A, B) Address bar.
  • Page 78 Appendix - C : Port Forwarding For Netgear RP614 routers: 1) Input http://192.168.0.1 in address bar of web browser. http://192.168.0.1 is the default IP address. 2) If it asks ID and password, input admin as ID and password as password. 3) Click “Port Forwarding”...
  • Page 79 Appendix - My POWER light is not on? How do I “PING” an IP address? Power is not being supplied to the unit. Please use the power 1) Open an MS-DOS (or Command) prompt supply shipped with the unit and verify that a power source 2) At the prompt type - “ping xxx.xxx.xxx.xxx”...

  • Page 80: Specifications

    Specifications - Dimension Unit: Inch (mm)
