Video Setup

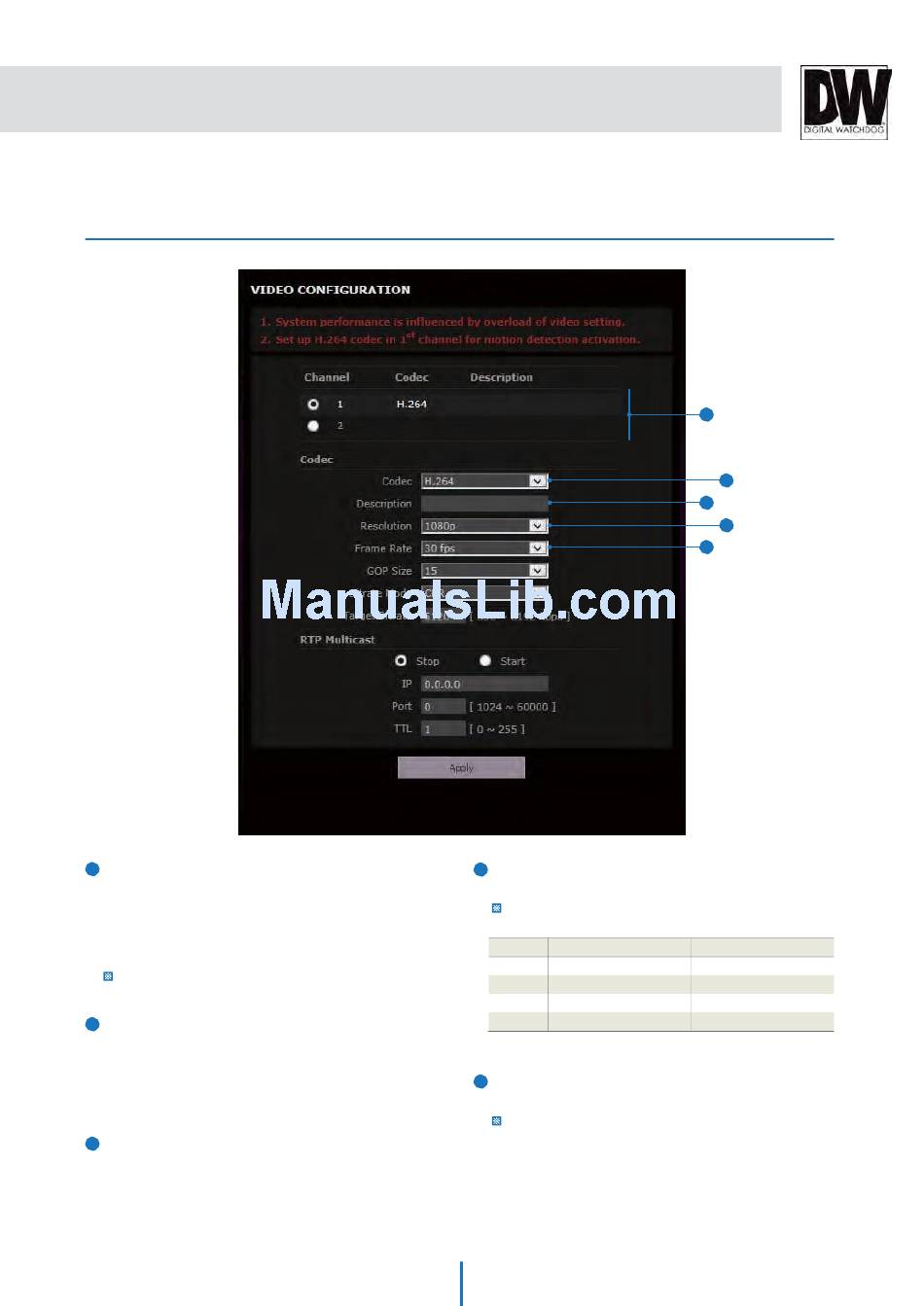

Live Video Channel/ Stream Setup
1
The video can be configured to variety settings with a
combination of codec and resolution.
The camera performance has to be considered when setting
multiple channels/ streams. This may influence the
camera's performance.
Channel 1 must be set to H.264 in order to activate 'Motion
Detection'.
Codec
2
Choose the video codec. According to the selected codec,
the subcategories will change automatically.
When MJPEG is selected, it will be able to set whether
to use the relevant channel for image transfer.
The channel for image transfer can only be set to channel 2.
Description
3
Input a description for the selected channel. Max. 15
characters are allowed.
Resolution
4
Select the video resolution.
Available resolution depends on the codec setup between
the channels.
NTSC
1080p/i
1920 x 1080
D1
720 x 480
CIF 352 x 240
QCIF 176 x 120
<Resolution Video Format>
Frame Rate
5
Select the maximum Frame Rate up to 30fps.
Available Frame Rate can be different although same codecs
were set up.
27
1
2
3
4
5
PAL
1920 x 1080
720 x 576
352 x 288
176 x 144
