Digital Watchdog DWC-PV2M4T User Manual page 11

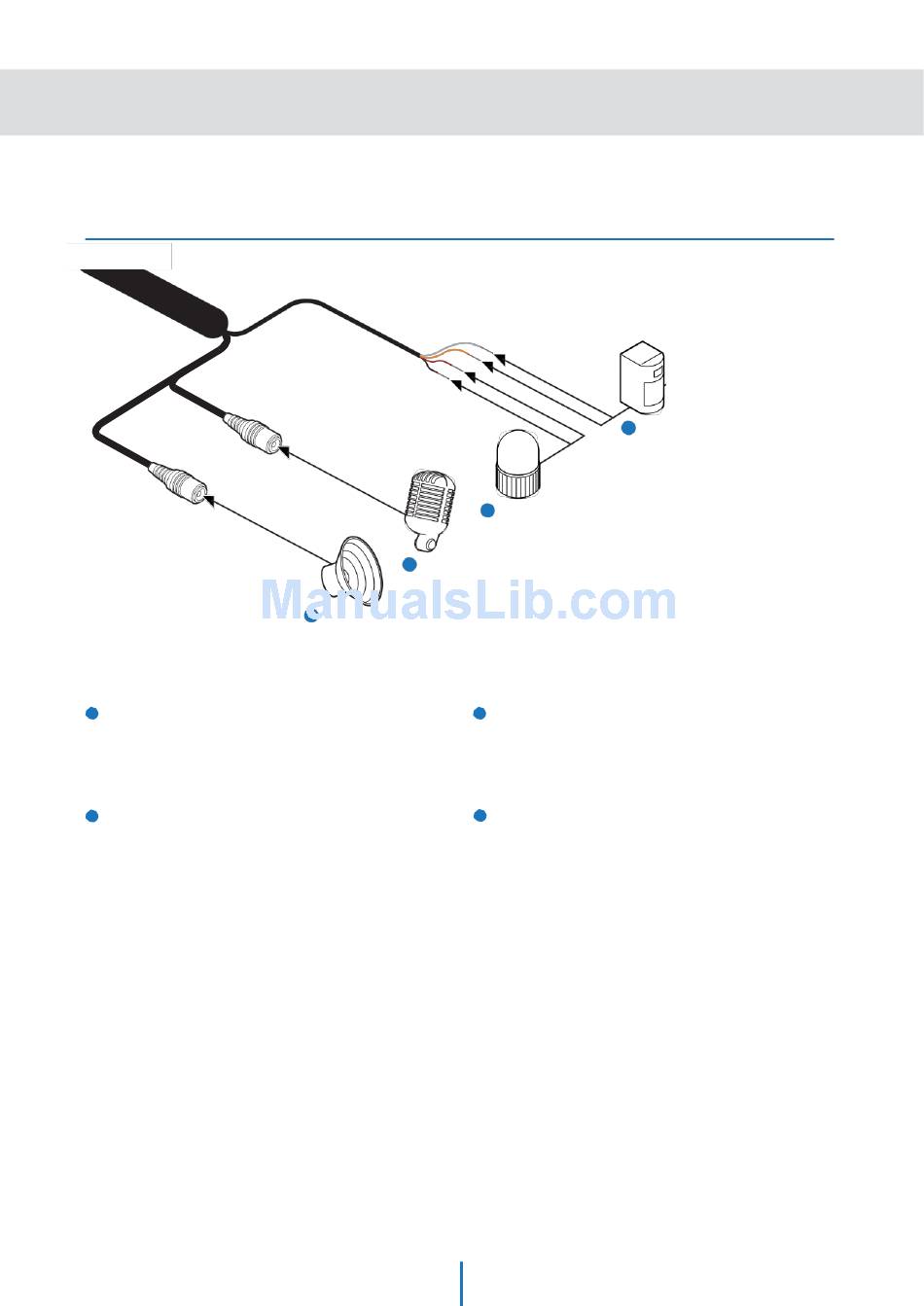

Installation -
Cabling
Audio In
1
Connect an 'Audio In' device such as a microphone to the
camera's input cable and GND pin of the cable slot. Audio
input device is activated and configured from the camera's
web-viewer.
Audio Out
2
Connect an 'Audio Out' device such as a speaker to the
camera's output cable and GND pin of the cable slot. Audio
volume is controlled from the camera's the web-viewer.
2 Audio In
1 Audio Out
3
4
10
White: DIN+
Yellow: DIN-
Black: DOUT-
Red: DOUT+
4 Alarm In
3 Alarm Out
Alarm Out
Connects to alarm lights, siren or lamps. Sensor types are
normal open and normal close.
Connect an alarm output device to the camera's alarm
out+ and alarm out- cables in the cable slot.
Alarm In
Connect a sensor/alarm input device to the camera's alarm
in+ and alarm in- cables in the cable slot.
