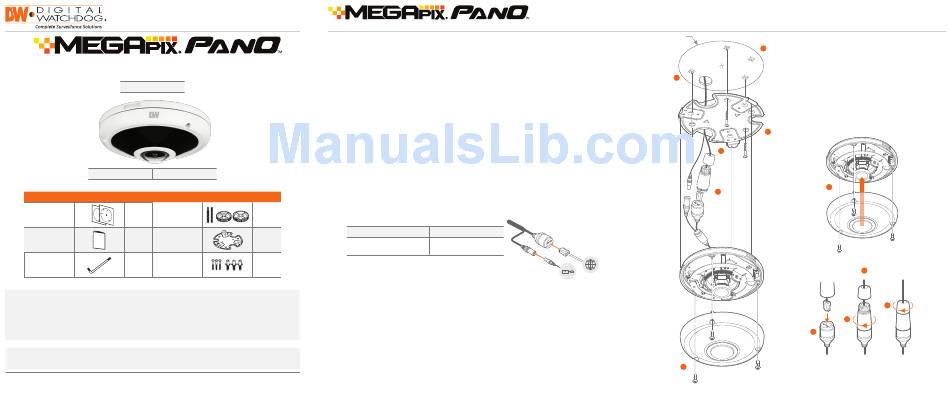

Digital Watchdog MEGApix PANO DWC-PVF9M2TIR Quick Start Manual

Panoramic View IP Cameras
DWC-PVF9M2TIR
Username: admin Password: admin
WHAT'S IN THE BOX
Mount Bolt & Nut
Template sheets 2 Sets
– 2pcs
Quick start guide 1 Set Mount Plate
Screw & Plastic
Torx wrench 1 Set
Anchor – 3pcs
NOTE: Download All Your Support Materials and Tools in One Place
1. Go to: http://www.digital-watchdog.com/support-download/
2. Search your product by entering the part number in the 'Search by Product' search bar. Results for applicable
part numbers will populate automatically based on the part number you enter.
3. Click 'Search'. All supported materials, including manuals, Quick Start Guides (QSG), software and firmware will
appear in the results.
Attention: This document is intended to serve as a quick reference for initial set-up. It is recommended that
the user read the entire instruction manual for complete and proper installation and usage.
Tel: +1 (866) 446-3595 / (813) 888-9555
Technical Support Hours: 9:00AM – 8:00PM EST, Monday thru Friday
Quick Start Guide
Panoramic View IP Cameras
STEP 1 – PREPARING TO MOUNT THE CAMERA
1. The mounting surface must bear five times the weight of your camera.
2. Do not let the cables get caught in improper places or the electric line cover to be damaged.
This may cause a breakdown or fire.
3. For the installation process, remove the dome cover and rubber gasket from the camera
module by loosening the screw on the side of the dome. Use the wrench provided with the
camera.
4. Using the mounting template sheet or the camera itself, mark and drill the necessary holes in
the wall or ceiling.
STEP 2 – CABLING THE CAMERA TO EXTERNAL DEVICES
5. Pass the wires through the mount bracket and make all necessary connections.
a. NETWORK CONNECTIONS – If you are using a PoE Switch, connect the camera using an Ethernet
cable for both data and power.
b. NETWORK CONNECTIONS – If you are using a non-PoE switch, connect the camera to the switch
using an Ethernet cable for data transmission and use a power adapter to power the camera.
1 Set
Power Requirements
1 Set
DC12V, PoE IEEE 802.3af
class 3 (adaptor not included)
1 Set
Step 3 – INSTALLING THE CAMERA
6. Once all cables are connected, secure the camera to the mounting surface using the included screws.
7. Re-attach the camera's gasket ring and dome to the camera module by aligning the screw holes.
8. The camera includes a sensor at the camera's module. For the sensor to function properly, the
camera's dome includes a special hole for the sensor.
9. When assembling the camera together, please make sure the sensor hole in the camera's dome is
positioned right on top of the sensor on the camera's module.
digital-watchdog.com
Power Consumption
DC12V Max 7.0W
POE Max 7.8W
NETWORK
POWER
Template
Sheet
1
Soft Surface Installation
For soft installation surfaces, use the included
metal mount plate. Fix the mount plate on the
4
mounting surface using the included screws.
Then, press the bottom case onto the mount
plate. The three bezels on the case will align
and snap lock onto the plate.
7
2
10
5
b
a
3
Quick Start Guide
8
c
