Network Setup -
Setup Case C, D

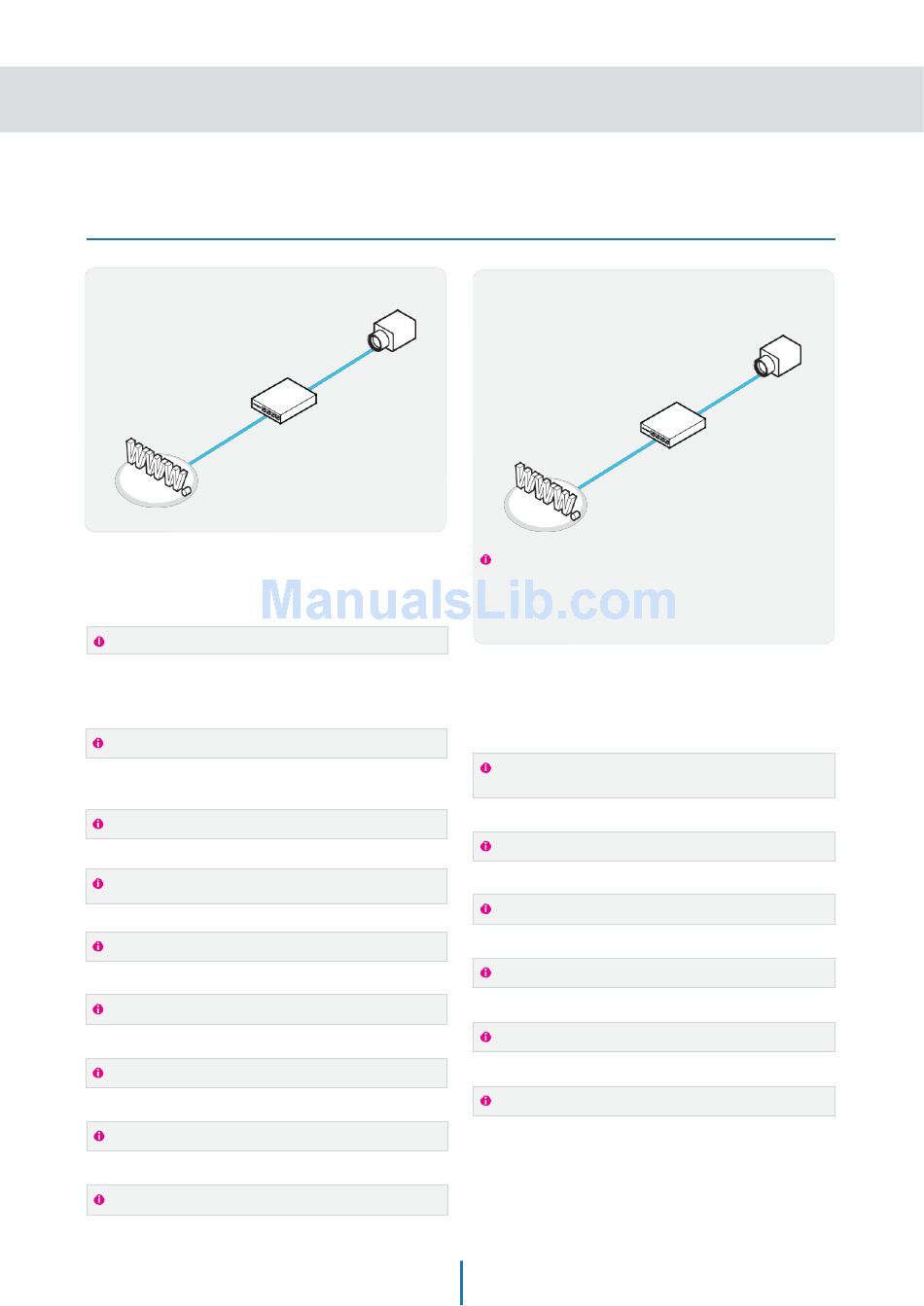

Case C:
Static (Fixed) IP [Dedicated line
directly to the IP Camera]
Phone Line
or CATV
Internet
Configure your IP camera's TCP/IP properties:
1. Network Type : STATIC
2. Internet Address : A static IP address received from your ISP such
as 24.107.88.125 (Example)
Assign an IP address to the IP camera just as you do with PC.
3. Subnet Mask : Subnet mask assigned from your ISP such as
255.255.255.240 (Example)
4. Default Gateway : 24.107.88.113 (Example)
Use the assigned default gateway from your ISP
5. Preferred DNS Server : Use the 1st DNS Server from 'Assigned IP
Address from My ISP'
Contact you ISP to acquire the IP address of their DNS server.
6. DDNS Server : Use the DDNS server
The same site you will register later to utilize a DDNS service.
7. Web Port : 80
You may select any number between 1025 ~ 60000.
8. Control Port : 7777
You may select any number between 1025 ~ 60000.
9. Video Port : 7778
You may select any number between 1025 ~ 60000.
10. Audio Transmit Port : 7779
You may select any number between 1025 ~ 60000.
11. Audio Receive Port : 7780
You may select any number between 1025 ~ 60000.
Camera
Cable/xDSL Modem
(ISP Provided)
Case D:
Dynamic IP + DSL/Cable Modem [Connected
directly to the IP Camera]
Public Line
Internet
To connect the IP camera directly to a modem, power down
and reset the modem. Leave the modem powered down until
configurations are finalized with the IP camera and the IP
camera has been connected correctly to the modem. Then
power on the modem, followed by the IP camera.
Configure your IP Camera's TCP/IP properties
as follows:
1. Network Type : DYNAMIC
2. DDNS Server : Use the DDNS server
The same site you will register later to accommodate
dynamic IP from your ISP.
3. Web Port : 80
You may select any number between 1025 ~ 60000.
4. Control Port : 7777
You may select any number between 1025 ~ 60000.
5. Video Port : 7778
You may select any number between 1025 ~ 60000.
6. Audio Transmit Port : 7779
You may select any number between 1025 ~ 60000.
7. Audio Receive Port : 7780
You may select any number between 1025 ~ 60000.
18
Camera
Gateway or
Router at ISP
