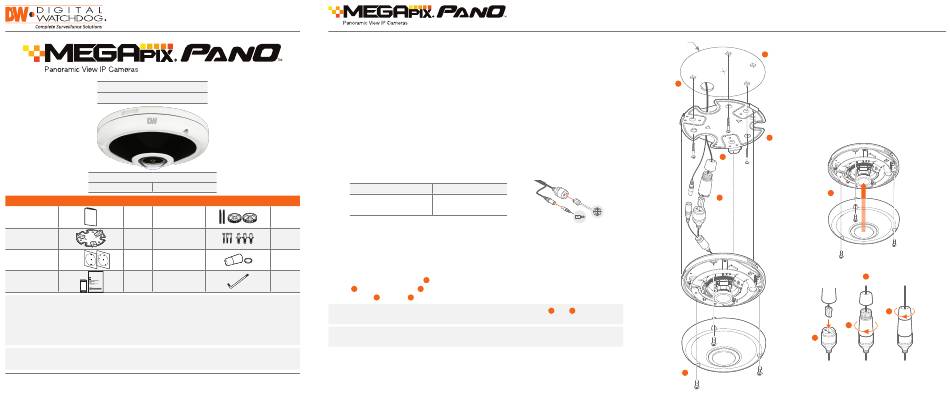

Digital Watchdog MegaPix Pano DWC-PVF5M1TIRC6 Quick Start Manual

DWC-PVF5M1TIRC6 - 64GB Storage
DWC-PVF5M1TIRC1 - 128GB Storage
Default Login Information
Username: admin Password: admin
WHAT'S IN THE BOX
Mount Bolt & Nut
QSG Manual 1 Set
– 2pcs
Screw & Plastic
Mount Plate 1 Set
Anchor – 3pcs
Template Sheet 2 Sets Waterproof Cap
Moisture absorber
and installation 1 Set Torx Wrench
guide
NOTE: Download All Your Support Materials and Tools in One Place
1. Go to: http://www.digital-watchdog.com/support-download/
2. Search your product by entering the part number in the 'Search by Product' search bar. Results for applicable
part numbers will populate automatically based on the part number you enter.
3. Click 'Search'. All supported materials, including manuals, Quick Start Guides (QSG), software and firmware will
appear in the results.
Attention: This document is intended to serve as a quick reference for initial set-up. It is recommended that
the user read the entire instruction manual for complete and proper installation and usage.
Tel: +1 (866) 446-3595 / (813) 888-9555
Technical Support Hours: 9:00AM – 8:00PM EST, Monday thru Friday
Quick Start Guide
STEP 1 – PREPARING TO MOUNT THE CAMERA
1. The mounting surface must bear five times the weight of your camera.
2. Do not let the cables get caught in improper places or the electric line cover to be damaged.
This may cause a breakdown or fire.
3. For the installation process, remove the dome cover and rubber gasket from the camera module by
loosening the screw on the side of the dome. Use the wrench provided with the camera.
4. Using the mounting template sheet or the camera itself, mark and drill the necessary holes in
the wall or ceiling.
STEP 2 – CABLING THE CAMERA TO EXTERNAL DEVICES
5. Pass the wires through the mount bracket and make all necessary connections.
a. NETWORK CONNECTIONS – If you are using a PoE Switch, connect the camera using an Ethernet
cable for both data and power.
b. NETWORK CONNECTIONS – If you are using a non-PoE switch, connect the camera to the switch
using an Ethernet cable for data transmission and use a power adapter to power the camera.
Power Requirements
DC12V
POE (IEEE 802.3af Class 3).
Adaptor not Included.
1 Set
STEP 3 – INSTALLING THE CAMERA
6. Once all cables are connected, secure the camera to the mounting surface using the included screws.
1 Set
7. For soft installation surfaces, use the included metal mount plate. Fix the mount plate on the mounting
surface using the included screws. Then, press the bottom case onto the mount plate. The three
1 Set
bezels on the case will align and snap lock onto the plate.
8. To use the camera's water proof wiring:
(1). Install the LAN cable into
1 Set
(2). will be assembled to
b
(3). Thread tightly to
c
NOTE: To ensure moisture seal, make sure the o-ring is in place between
environments use of an outdoor rated sealer is recommended.
NOTE: When using the waterproof cap, crimp the RJ45 connector after passing the cable through
the waterproof cap.
9. Re-attach the camera's gasket ring and dome to the camera module by aligning the screw holes.
10. The camera includes a sensor at the camera's module. For the sensor to function properly, the
camera's dome includes a special hole for the sensor.
11. When assembling the camera together, please make sure the sensor hole in the camera's dome is
digital-watchdog.com
positioned right on top of the sensor on the camera's module.
Power Consumption
LED Off: 3.6W, 300mA
LED On: 6.5W, 541mA
NETWORK
POWER
a .
a with a 1/4 turn.
.
b
and . In extreme
a b
Template
Sheet
1
Soft Surface Installation
For soft installation surfaces, use the included
metal mount plate. Fix the mount plate on the
4
mounting surface using the included screws.
Then, press the bottom case onto the mount
plate. The three bezels on the case will align
and snap lock onto the plate.
7
2
10
5
b
a
3
Quick Start Guide
8
c
