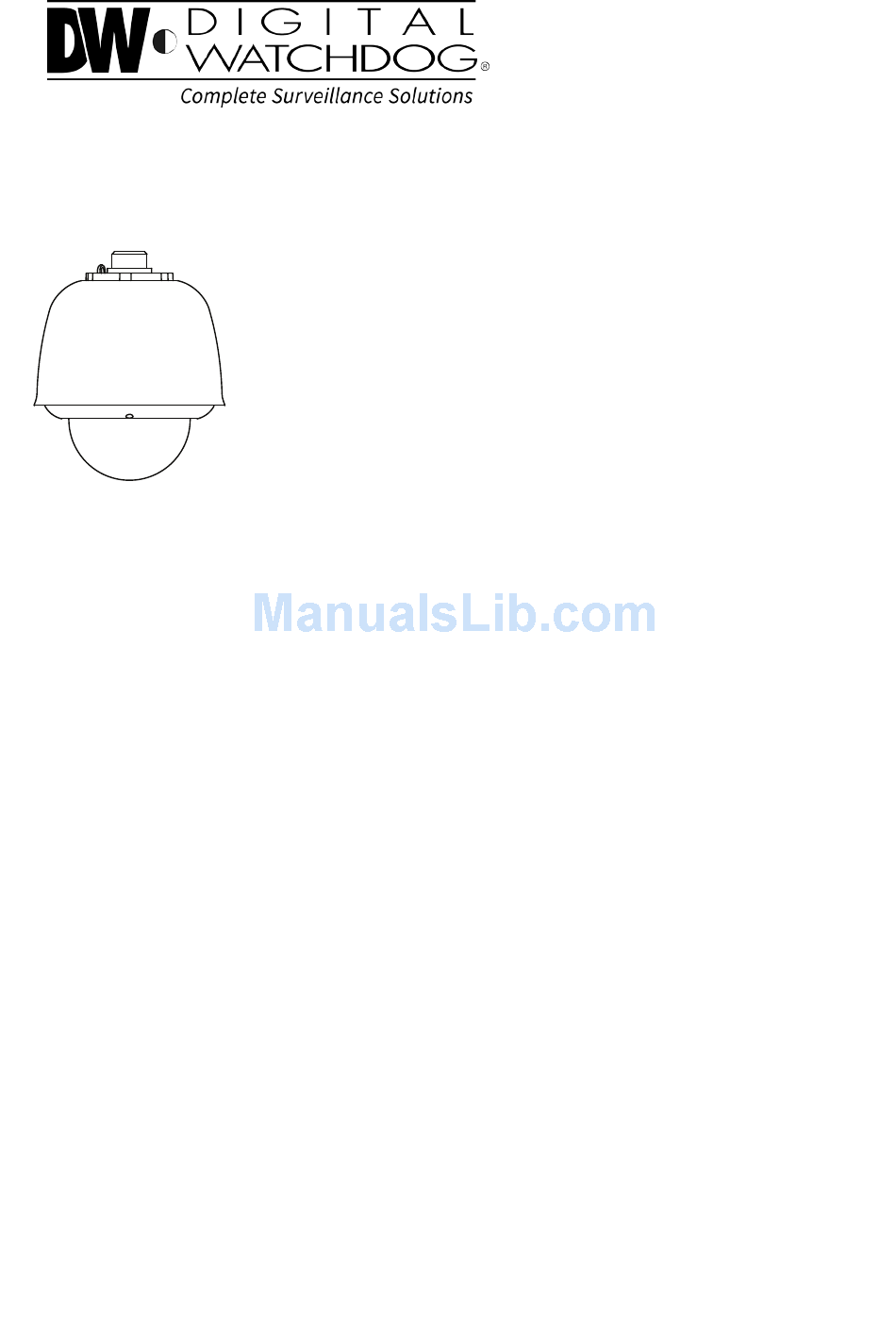

Page 1: Dome Camera
Super Speed Dome x37 PTZ Outdoor All in One Dome Camera User’s Manual Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for future reference. 2012.09... -
Page 2: Safety Information
Safety Information CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN. CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Warning Precaution This symbol indicates that dangerous voltage This exclamation point symbol is intended to alert the consisting a risk of electric shock is present within user to the presence of important operating and... -
Page 3: Important Safety Instructions
Important Safety Instructions Read these instructions. - All these safety and operating instructions should be read before the product is installed or operated. Keep these instructions. - The safety, operating and use instructions should be retained for future reference. Heed all warnings. - All warnings on the product and in the operating instructions should be adhered to. Follow all instructions. -
Page 4: Table Of Contents
Contents 1. Introduction Product & Accessories Parts Name & Functions_Appearance Parts Name & Functions_Inside 2. Installation Installation DIP Switch Setup Cabling 3. OSD Menu OSD Information General Rules of Menu Operation ROOT MENU & SYSTEM INFORMATION DISPLAY SETUP > CAMERA ID DISPLAY SETUP >... -
Page 5: Introduction
Introduction - Product & Accessories Please check if all the camera and accessories are included in the package. Product Accessories Hexagonal Wrench All-In-One Camera Manual CD Quick Manual NOTE: Mounting Accessories sold separately. - Page 6 Introduction - Part Name & Functions_Appearance Sunshield & Upper Housing PTZ Mechanism Dome Safety Wire Dome Cover Sunshield & Upper Housing Dome Safety Wire Sunshield protect bubble dome cover from the sun rays and Prevents the dome cover from falling. rain fall.
-
Page 7: Parts Name & Functions_Inside
Introduction - Part Name & Functions_Inside Video Coaxial Cable ID Setup Switch Alarm Output Port Communication Setup Switch Alarm Input Port RS-485 Port Power Port Heater ID Setup Switch BNC Coaxial Cable Specify the camera ID. Connects to video output device such as monitor using the BNC coaxial cable. -
Page 8: Installation
Installation - Installation Wall Mount Bracket Installation (Bracket is Option) Ceiling Mount Bracket Installation (Bracket is Option) Using the hole template, mark the holes on the wall or ceiling. After drilling the holes, x the four anchor bolts into the holes. - Page 9 Installation - Installation Detach the PTZ mechanism from the upper housing to plug the main cable. When detaching the PTZ mechanism, press down and hold up the black handles on both sides of the PTZ mechanism. Remove the protecting tape used to fix the PTZ mechanism.
- Page 10 Installation - Installation Connect each of the following cables to the applicable port and set the DIP switch to con gure the camera ID, communication protocol. Video Output Cable Alarm Input Port Alarm Output Port DIP Switch for Camera ID Setup DIP Switch for Communication Setup RS-485 Slot Power Port...
- Page 11 Installation - Installation Plug the connector of cable from junction box into properly. After checking the orientation of one touch connector in the upper housing, press the PTZ mechanism into hook in the upper housing. To lock the PTZ mechanism to the upper housing, press the two black handles until a snap sound is heard.
- Page 12 Installation - Installation Close the dome cover. Match the arrow mark on the dome cover and the housing. Arrow Mark Arrow Mark Tighten four screws on the dome cover in the sequence shown in the image. To maintain the best sealing, the torque of each screw must be in the range of 0.5 ~ 1.0 N·m(0.3 ~ 0.73 lbf·ft).
-
Page 13: Installation Dip Switch Setup
Installation - DIP Switch Setup Before installing the camera, set up the DIP Panasonic switch to configure the Camera ID, communication protocol, located on the mount. Interface Board GE(Kalatel) AD(American Dynamics) Protocol Setup Baud Rate Setup RS-485 Termination Resistor - When the communication protocol setting is ‘Auto’, camera will recognize SAMSUNG-E or PELCO-D / P protocol 1. - Page 14 Installation - DIP Switch Setup 2. Communication Baud Rate Setup 3. RS-485 Termination Resistor Select the appropriate baud rate with DIP switch combination. 2400 BPS - Factory Default - Pin 8 is used for on/off of RS-485 termination. - Normally, it must be OFF. - When you have trouble with long daisy chain style 4800 BPS connections, turn ON this termination switch on the last...
-
Page 15: Cabling
Installation - Cabling Video Output Power RS-485 (Keyboard Controller/DVR) Video Output RS-485 Communication (DVR/Keyboard) Connects to video output device such as a monitor using a To control multiple PTZ cameras at the same time, the BNC coaxial cable. RS-485 communication lines should be connected in parallel form as shown below. - Page 16 Installation - Cabling Alarm Input Alarm Output In 1 In 8 Alarm Input/Sensor Alarm Output Sensor Input/Sensor Alarm Output To use the alarm input, the type of sensor must be selected There are 4 alarm outputs, and all of them are the relay in OSD menu.
-
Page 17: Osd Information
OSD - OSD Information PRESET LABEL PATTERN 1 Preset Label Action Title CAMERA ID_TOP Camera ID_Top CAMERA ID_TOP CAMERA ID_BOT Alarm I/O Information Camera ID_Bottom CAMERA ID_BOT Compass Direction O 1234 23/MAR/2009 Date / Time I 12345678 24 00 00 Zoom Magnification 359/180/x100/SE CAM 1... -
Page 18: General Rules Of Menu Operation
OSD - General Rules of Menu Operation The menu items surrounded with < > always has its sub ROOT MENU menu. - - - - - - - - - - - - - - - - - - - - - - - - - - - <SYSTEM INFORMATION>... -
Page 19: Root Menu & System Information
OSD - ROOT MENU & SYSTEM INFORMATION ROOT MENU ROOT MENU ROOT MENU - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - <SYSTEM INFORMATION>... -
Page 20: Display Setup > Camera Id
OSD - DISPLAY SETUP > CAMERA ID DISPLAY SETUP DISPLAY SETUP This menu defines enable/disable of OSD display on main screen. - - - - - - - - - - - - - - - - - - - - - - - - - - - If an item is set to be ‘AUTO’, the item is displayed only when the ADDRESS CAMERA ID... -
Page 21: Display Setup > Privacy Zone
OSD - DISPLAY SETUP > PRIVACY ZONE DISPLAY SETUP DISPLAY SETUP See the previous page. - - - - - - - - - - - - - - - - - - - - - - - - - - - ADDRESS CAMERA ID EDIT MASK - Move to Target Position... - Page 22 OSD - DISPLAY SETUP > PRIVACY ZONE PRIVACY ZONE - STYLE>COLOR Set the color of the mask. PRIVACY ZONE Y-LEVEL 0 ~ 100 - - - - - - - - - - - - - - - - - - - - - - - - - - - MASK NO.
-
Page 23: Motion Setup
OSD - MOTION SETUP MOTION SETUP MOTION SETUP - - - - - - - - - - - - - - - - - - - - - - - - - - - PRESET LOCK ON / OFF PRESET LOCK If motion lock is set to on, it is impossible to set up and delete preset, PWR UP ACTION... - Page 24 OSD - MOTION SETUP ALARM INPUT SETUP MOTION SETUP If an external sensor is activated, camera will move to - - - - - - - - - - - - - - - - - - - - - - - - - - - the corresponding action.
-
Page 25: Function Setup > Preset Setup
OSD - FUNCTION SETUP > PRESET SETUP FUNCTION SETUP FUNCTION SETUP Configure 5 special functions with this menu. - - - - - - - - - - - - - - - - - - - - - - - - - - - <PRESET SETUP>... - Page 26 OSD - FUNCTION SETUP > PRESET SETUP LABEL PRESET SETUP - Edits label to show on monitor when camera arrives at preset. - - - - - - - - - - - - - - - - - - - - - - - - - - - PRESET NO.
-
Page 27: Function Setup > Scan Setup
OSD - FUNCTION SETUP > SCAN SETUP SCAN SETUP FUNCTION SETUP By using the scan function, you can make the camera to move - - - - - - - - - - - - - - - - - - - - - - - - - - - between 2 preset positions repeatedly. -
Page 28: Function Setup > Pattern Setup
OSD - FUNCTION SETUP > PATTERN SETUP PATTERN SETUP Pattern function is that a camera memorizes the path (mostly FUNCTION SETUP - - - - - - - - - - - - - - - - - - - - - - - - - - - curve path) by joystick of controller for assigned time and <PRESET SETUP>... -
Page 29: Function Setup > Group Setup
OSD - FUNCTION SETUP > GROUP SETUP GROUP SETUP SCREEN The group function allows running sequence of presets, pattern FUNCTION SETUP - - - - - - - - - - - - - - - - - - - - - - - - - - - and/or scans. - Page 30 OSD - FUNCTION SETUP > GROUP SETUP EDIT GROUP - Selects Function Sequence After finishing setting up an ‘ACTION’, press near or enter key EDIT GROUP - - - - - - - - - - - - - - - - - - - - - - - - - - - to one-upper-level menu.
-
Page 31: Function Setup > Schedule Setup
OSD - FUNCTION SETUP > SCHEDULE SETUP SCHEDULE SETUP SCREEN The schedule function allows running an appropriate function FUNCTION SETUP - - - - - - - - - - - - - - - - - - - - - - - - - - - like preset, scan, pattern, group, home move at designated <PRESET SETUP>... - Page 32 OSD - FUNCTION SETUP > SCHEDULE SETUP SCHEDULE SETUP The second rule means camera will move to preset 12 position at - - - - - - - - - - - - - - - - - - - - - - - - - - - 7:00 on every wednesday.
-
Page 33: Camera Setup > Wb Setup
OSD - CAMERA SETUP > WB SETUP ZOOM CAMERA SETUP ZOOM CAMERA SETUP Setup the general functions of zoom camera module. - - - - - - - - - - - - - - - - - - - - - - - - - - - FOCUS MODE SEMIAUTO DIGITAL ZOOM... - Page 34 OSD - CAMERA SETUP > WB SETUP WB SETUP - NIGHT WB SETUP - - - - - - - - - - - - - - - - - - - - - - - - - - - BRIGHTNESS LOW / MIDDLE / HIGH DAY/NIGHT...
-
Page 35: Camera Setup > Ae Setup
OSD - CAMERA SETUP > AE SETUP AE SETUP AE SETUP - - - - - - - - - - - - - - - - - - - - - - - - - - - IRIS ALC / MANUAL IRIS <ALC>... - Page 36 OSD - CAMERA SETUP > AE SETUP DAY/NIGHT AE SETUP It is automatically changed by sensing the brightness of the - - - - - - - - - - - - - - - - - - - - - - - - - - - IRIS <ALC>...
-
Page 37: Camera Setup > Special
OSD - CAMERA SETUP > SPECIAL SPECIAL ZOOM CAMERA SETUP Sets the special function relaced to the image. - - - - - - - - - - - - - - - - - - - - - - - - - - - FOCUS MODE SEMIAUTO DIGITAL ZOOM... -
Page 38: System Setup
OSD - SYSTEM SETUP SYSTEM SETUP SYSTEM SETUP <DATE/TIME SETUP> - - - - - - - - - - - - - - - - - - - - - - - - - - - <DATE/TIME SETUP> Starts ‘DATE/TIME SETUP’. <RELAY TYPE>... - Page 39 OSD - SYSTEM SETUP SET HOME POSITION Home position means the origin of pan angle calculation. SET HOME POSOTION - - - - - - - - - - - - - - - - - - - - - - - - - - - The value of pan angle displayed on the screen is based on this home position.
-
Page 40: System Initialize
OSD - SYSTEM INITIALIZE Initial Configuration Table SYSTEM INITIALIZE Address - - - - - - - - - - - - - - - - - - - - - - - - - - - CLEAR ALL DATA Camera ID CLR DISPLAY SET CLR CAMERA SET... -
Page 41: Specifications
Specifications - Dimension Unit: mm 101.5... -
Page 42: Specification
Specifications - Specification Camera Image Device 1/4” Interline Transfer CCD E ective Pixel : 768 (H) x 494 (V), 380K H. Resolution Color: 560 TV Lines B/W: 680 TV Lines S/N Ratio 52 dB (AGC O ) Zoom x37 Optical Zoom & x16 Digital Zoom (Total x592) Focal Length f = 3.5 (W) ~ 129.5 (T) mm, F1.6 (W) ~ 3.9 (T) H: 55.5°... -
Page 43: Warranty Information
WARRANTY INFORMATION Digital Watchdog (referred to as “the Warrantor”) warrants the Digital Watchdog Camera against defects in materials or workmanship as follows: LABOR : For the initial ve (5) years and one (1) year on IR LED from the original purchase date, if the camera is determined to be defective, the Warrantor will repair or replace the unit with a new or refurbished product at its option at no charge. -
Page 44: Limits And Exclusions
LIMITS AND EXCLUSIONS There are no express warranties except as listed above. The Warrantor will not be liable for incidental or consequential damages (including, without limitation or damage to recording media) resulting from the use of these products, or arising out of any breach of the warranty. All express and implied warranties, including the warranties of merchantability and tness for particular purpose, are limited to the applicable warranty period set forth above. - Page 45 5436 W Crenshaw St. Tampa, FL 33634 Tel : 866-446-3595 / 813-888-9555 Fax : 813-888-9262 www.Digital-Watchdog.com technicalsupport@dwcc.tv Technical Support Hours : Monday-Friday 9:00am to 8:00pm Eastern Time Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g.
