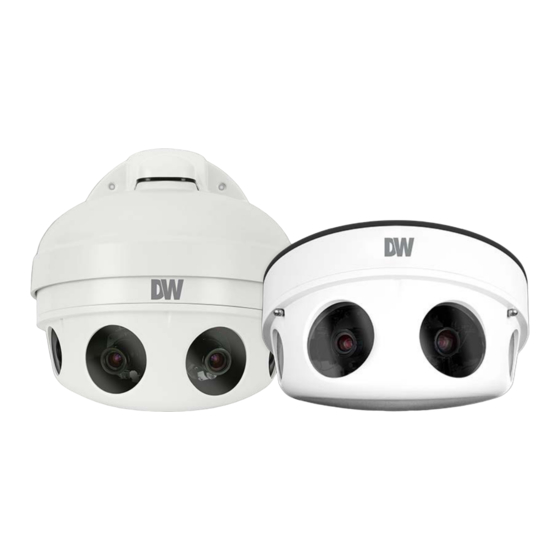

Digital Watchdog DWC-PZ21M69TW User Manual

Megapix pano 21mp 180 panoramic view camera

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

MEGApix

PANO

21MP 180°

Panoramic View Camera

DWC-PZ21M69T - silver-color housing

DWC-PZ21M69TW - white-color housing

User's Manual

Ver. 10/22

Before installing and using the camera, please read this manual carefully.

Be sure to keep it handy for future reference.

Table of Contents

Need help?

Do you have a question about the DWC-PZ21M69TW and is the answer not in the manual?

Questions and answers

Summary of Contents for Digital Watchdog DWC-PZ21M69TW

Page 1 MEGApix PANO 21MP 180° ® Panoramic View Camera DWC-PZ21M69T - silver-color housing DWC-PZ21M69TW - white-color housing User’s Manual Ver. 10/22 Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for future reference.
Page 2 Safety Information CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN. CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Warning Precaution This symbol indicates that dangerous voltage This exclamation point symbol is intended to alert the consisting a risk of electric shock is present within user to the presence of important operating and...
Page 3 Important Safety Instructions Read these instructions. - All safety and operating instructions should be read before installation or operation. Keep these instructions. - The safety, operating and use instructions should be retained for future reference. Heed all warnings. - All warnings on the product and in the operating instructions should be adhered to. Follow all instructions.
Page 4: Table Of Contents
Table of Contents Introduction Product & Accessories..................................5 Parts Name......................................6 Installation Disassembling the Camera................................7 Factory Reset......................................7 Installation.....................................8-11 Cabling.......................................12 SD Memory Card.....................................14 Network Setup DW IP Finder.....................................15 Web Viewer Login to the camera..................................16 GUI Overview.....................................17-18 Camera Settings Settings>Video & Audio Setup............................21-29 Settings>Camera Setup>Alignment Configuration......................30 Settings>Camera Setup>Camera Image Adjustment.......................31 Settings>Camera Setup>Camera Exposure Settings......................32 Settings>Camera Setup>Camera Day/Night Settings......................33...
Page 5: Introduction
Introduction - Product & Accessories Please check if all the camera and accessories are included in the package. Camera Cables Torx Wrench Moisture Absorber - 2pcs & Absorber Guide Manual CD Waterproof cap & Gasket Quick Manual...
Page 6: Parts Name
Introduction - Part Name Glass Safety Wire CDS Sensor Lens Tilt Adjusting Screw Bottom Case Alarm In/Out RJ-45 Connector DC Power Jack Audio In/Out Waterproof Cap Reset Button SD Card Slot...
Page 7: Installation
Installation - Disassemble the camera Before installing your camera, you have to read the following cautions. 1. You have to check whether the location can bear five times of the weight of your camera. 2. Don’t let the cable to be caught in improper place or the electric line cover to be damaged. Otherwise it may cause a breakdown or fire.
Page 8: Installation
Installation - Installation Attach the Bottom case to selected Mount Bracket. Connect the Mount Cap and Tilt Bracket. Fix it with safety wire on the Bottom case and fasten it to fit the joint of Bracket and Bottom case well. Assemble the Bottom case and Bracket.
Page 9 Installation - Installation Installation method with the old type bracket After removing the new bracket coupling bolt with a flat head screwdriver, remove the rubber cap of the fastening point. Connect the mount bracket to the camera with the mount screw. To achieve desired view direction and orientation, rotate 3-axis gimbal.
Page 10 Installation - Adjusting the camera angle Rotating 53° Tilting 18°...
Page 11: Cabling
Installation - Cabling Two Options Use a PoE-Injector to connect data and power through a single cable and begin viewing and recording images instantly. A non-PoE switch will require an adaptor for power transmission. 1. Using a PoE-Injector 2. Using a Non-PoE Switch The Camera is PoE-compliant, allowing transmission of If a PoE-enabled switch is not used, use a power adaptor power and data via a single Ethernet cable.
Page 12 Installation - Cabling Alarm In/Out Audio Input Audio Output Network Power Power Connection Audio Output Please, check the voltage and current capacity of rated power Connect the ‘Audio Out’ cable of the camera to device like carefully. speaker. Audio Out supports only RTSP Back channel function. It plans to make it Rate Current available on the web later.
Page 13: Sd Memory Card
Installation - Inserting/Removing an SD Memory Card The memory card is an external data storage device that has been developed to offer an entirely new way to record and share video, audio, and text data using digital devices. Micro Recommended SD Card Specification (Not Included) - Type: Micro SD (SD/SDHC/SDXC)
Page 14: Network Setup Dw Ip Finder
Network Setup - DW IP Finder Thumbnail view Firmware version Select network to scan Camera's uptime Filter device type to scan Scan devices Show/hide Open device thumbnail view configuration Refresh thumbnail view settings Bulk IP assignment Device's information Firmware upgrade Go to : http://www.digital-watchdog.com and search for ‘IP Finder’...
Page 15 Network Setup - Quick Start of Network Connection Please follow the steps below to complete Access your IP Camera via the Internet : the initial setup of the network function. If you use a static IP address assigned by your ISP Please do not power on the IP Camera until instructed.
Page 16 Network Setup - DDNS Registration If you have DYNAMIC IP service from your Internet Service Provider (ISP), you can’t tell the current IP address of the IP Camera. To solve this problem, you have to register to our DDNS service. At ﬁrst, you have to check if you are using dynamic addressing.
Page 17 Network Setup - Guide to Network Environment Please conﬁgure the IP Camera at the If prompted for ID and Password, use ‘admin’ for both entries. The default web port number is 80. If port 80 is installation site. You must determine your blocked by the ISP, a value between 1025 ~ 60000 should network scenario in order to conﬁgure the IP be used.
Page 18 Network Setup - Setup Case A, B Case A: Conﬁgure your IP Camera’s TCP/IP properties Dynamic IP + Personal Router [Most SOHO] as follows : Network Type : STATIC (even though you have Dynamic IP from your ISP, use STATIC on the IP Camera) Internet Address : A private IP address such as Camera 192.168.0.200 (Example)
Page 19 Network Setup - Setup Case C, D Case C: Case D: Static(Fixed) IP Dynamic IP + DSL/Cable Modem [Dedicated line directly to the IP Camera] [Connected directly to the IP Camera] Camera Camera Cable/xDSL Modem Gateway or Router (ISP Provided) at ISP Phone Line Public Line...
Page 20 Network Setup - Port Forwarding After entering the correct TCP/IP settings, you are ready for ‘Port Forwarding’ (Cases A, B). Please record the TCP/IP settings of your IP Camera for future reference. You may need this information to access your IP Camera and to conﬁgure ‘Port Forwarding’. IP Camera TCP/IP Settings IP Address Subnet Mask...
Page 21 Network Setup - Starting IP Camera After forwarding correctly the Web Port, through your router (if applicable), install the IP Camera in a proper location. Locate the serial number located on the label attached to the bottom of the IP Camera, you will need this for DDNS registration.
Page 22: Web Viewer
Web Viewer Screen - Basic Screen Web viewer is optimized with explorer10 or above version and Firefox. If VLC is not installed or VLC plugin is not supported (Chrome), Live buﬀering and Channel select menu on 3, 4 will be changed to Live Viewer menu, and then if HTML5(MJPEG) is selected on Live Viewer menu, then you can check the video. Live video display. This is the region for live video stream from the camera. Setup popup button.
Page 23 Setup - Video & Audio Setup Video Configuration Detail Page - When you selects an item from the menu, you can set the details for the selected item. Setup Constitution Video&Audio [ VIDEO, OSD, ROI, AUDIO, PRIVACY MASK ] Camera [ ALIGNMENT, IMAGE ADJUSTMENT, EXPOSURE, DAY&NIGHT, BACKLIGHT, WHITE BALANCE, IMAGE, VIDEO ] Network [ STATUS, NETWORK SETTING, AUTO IP, ONVIF, UPNP, DDNS, FTP, SMTP, SNMP, RTSP INFORMATION ]...
Page 24 Setup - Video & Audio Setup Video Configuration VIN Source - Select the Video 1 ~ Video 4 and set the video setup. Click 'apply' to set the other video setting. Live Video Channel Setup - The video can be conﬁgured to variety settings with a combination of codec and resolution. The camera performance has to be considered when setting multiple channels. This eﬀects on the performance of the camera. Codec - Choose the video codec. According to the selected codec, the subcategories can be changed automatically. Description - Input the additional description about the selected channel.
Page 25 Setup - Video & Audio Setup Video Configuration GOP(Group of Pictures) Size - Set up the number of frames (P-frame) which contain only changed information based on basic frame (I-frame). Regarding videos with lots of movement, if you set GOP size bigger, only the number of P-frames is bigger. As a result, video resolution will be low but ‘File size’...
Page 26 Setup - Video & Audio Setup Video Configuration Bitrate Mode - Select the bit rate control scheme of video compression from CBR (Constant Bit Rate) or VBR (Variable Bit Rate). CBR - To guarantee the designated constant bit rate, the quality of video are controlled in this mode. Therefore, the quality of video is likely to be varying when network traﬃc is changing.
Page 27 Setup - Video & Audio Setup OSD Configuration VIN Source - Select the Video 1 ~ Video 4 and Set the video setup. Click 'apply' to set the other video setting. Date / Time - Display the current time. User Text - Output the TEXT entered by the user. Support a maximum of 30 characters. Click ‘Apply’...
Page 28 Setup - Video & Audio Setup Region of Interest Configuration Region of interest function gives much more efficiency picture quality for indicated area to improve picture qualities of movement scene at the same bandwidth. VIN Source - Select the Video 1 ~ Video 4 and Set the video setup. Click 'save' to set the other video setting.
Page 29 Setup - Video & Audio Setup Audio Configuration Codec - Select the Audio Codec. Currently it supports only codec G.711. Volume - Select the Audio Volume from 0 to 10. Sample Rate - Select the Audio Sample Rate. Currently it supports only 8000 Hz. Click ‘Save’...
Page 30 Setup - Video & Audio Setup Privacy Mask Configuration Use this function to mask areas that you want to hide on screen to protect privacy. VIN Source - Select the Video 1 ~ Video 4 and Set the video setup. Click 'save' to set the other video setting.
Page 31 Setup - Camera Setup Alignment Configuration Step Mode - Rotate once each time you press the button in the direction of the arrow. Continous Mode - Press and hold the button and continue to rotate in the direction of the arrow.
Page 32 Setup - Camera Setup Camera Image Adjustment VIN Source - Select the Video 1 ~ Video 4 and Set the video setup. Click 'save' to set the other video setting. Sharpness - Using this control, sharpness of image can be adjusted to meet your preference. Brightness - Using this control, brightness of image can be adjusted to meet your preference.
Page 33: Camera Settings
Setup - Camera Setup Camera Exposure Settings VIN Source - Select the Video 1 ~ Video 4 and Set the video setup. Click 'save' to set the other video setting. Auto Exposure - Automatic exposure(AE) automatically sets the aperture or shutter speed, based on the external lighting conditions for the photo.
Page 34 Setup - Camera Setup Camera Day & Night Settings Day & Night - Auto: In this mode, the IR cut filter is removed automatically depending on the light condition around. - Day: In this mode, the IR cut filter is applied to the image sensor all the time. Thus, the sensitivity will be reduced in the dark light condition but the better color reproduction performance are obtained.
Page 35 Setup - Camera Setup Camera Backlight Settings This is a feature used for problematic light conditions where the contrast from light to dark areas is very high. VIN Source - Select the Video 1 ~ Video 4 and Set the video setup. Click 'save' to set the other video setting.
Page 36 Setup - Camera Setup Camera White Balance VIN Source - Select the Video 1 ~ Video 4 and Set the video setup. Click 'save' to set the other video setting. Activation - White Balance can be enable or disable. White Balance Mode - Select White Balance depending on the lighting conditions. RGB Gain - The R/G/B gain can be set only when the White Balance Mode is set to Manual.
Page 37 Setup - Camera Setup Camera Image Enhancement VIN Source - Select the Video 1 ~ Video 4 and Set the video setup. Click 'save' to set the other video setting. 3D Noise Reduction - 3DNR function enables to suppress noise and retain good video quality in low light conditions. Mirror - Reverse the video from side to side.
Page 38 Setup - Camera Setup Video Enhancement VIN Source - Select the Video 1 ~ Video 4 and Set the video setup. Click 'save' to set the other video setting. Flicker - This function Enable to enhance the ﬂicker situation. Click ‘Save’ to save the current settings. Click 'Cancel' to return to the previous setting. Click 'Default' to settings to the factory defaults.
Page 39 Setup - Network Setup Network Status This menu will show you all the information of Network setting in the camera. However, you cannot change those here.
Page 40 Setup - Network Setup Network Settings Network Type - Deﬁne network IP address type from the Static Mode for the ﬁxed IP or the Dynamic Mode by the dynamic IP address. If you select the Static Mode, you must ﬁll out IP Address, Subnet Mask, Gateway, DNS Server and all ports. If you select the Dynamic Mode, the IP address will be allocated automatically by DHCP equipment. If you click the Apply button to update changes, the system will be re-booted. In this case, you have to reconnect the camera using new IP address.
Page 41 Setup - Network Setup Auto IP Settings General Setting - Auto IP Settings function can be enable or disable. Auto IP Settings Information - It displays the unique id or Auto IP address. Click ‘Apply’ to make above setting effective.
Page 42 Setup - Network Setup ONVIF Settings Authentication None: Allows to access without ONVIF authentication. WS - Usertoken: Allows to access with WS-User Token of ONVIF authentication. WS - Usertoken + Digest: Allows to access with WS-User Token and Digest of ONVIF authentication. Discovery Mode - The discovery function can be enable or disable.
Page 43 Setup - Network Setup UPNP Settings General Setting - UPNP function can be enable or disable. Friendly Name - Define the friendly name. Support a maximum of 30 characters and special character (/ ~ ! $^ ( ) { } [ ] ; , ) can not be used.
Page 44 Setup - Network Setup DDNS Settings DDNS Disable - If it is selected, DDNS service does not work. Public DDNS - To use public DDNS service, select a site address listed in the list. After ﬁlling out the Host Name of the site, the setup is completed by entering User Name and Password registered in that DDNS site. DDNS Provider Site Address DynDNS www.dyndns.com No-IP...
Page 45 Setup - Network Setup FTP Settings To transfer / save the image to the relevant sites through FTP, then FTP needs to be setup. General Setting - FTP function can be enable or disable. FTP Server Address - Deﬁne FTP Server IP Address. If IP Address form is incorrect, a Message box will be shown to try again. FTP Upload Path - Deﬁne a path in FTP server to store video. For the path name, English Alphabets, numbers and special characters ( / ~ !@ $ ^ ( ) _ - { } [ ] ;...
Page 46 Setup - Network Setup SMTP Settings To send / save the image to the relevant sites by Email, SMTP needs to be setup. General Setting - SMTP function can be enable or disable. Mode - Select Security mode of SMTP from Plain or SSL / TLS. After checking account setup of your SMTP Server, you may select one.
Page 47 Setup - Network Setup SNMP Settings SNMPv1/SNMPv2 - Select the SNMPv1/SNMPv2 option and type the names of Read community and Write community. SNMP trap can be used to check periodically for operational thresholds or failures that are deﬁned in the MIB. SNMP Trap - SNMP trap can be enable or disable.
Page 48 Setup - Network Setup RTSP Information VIN Source - Select the Video 1 ~ Video 4 and Set the video setup. Click 'apply' to set the other video setting. Target Stream - Select the stream you want to set. Time out - Set the RTSP time out. The session is disconnected after the speciﬁed time out.
Page 49 Setup - Trigger Action Setup Action Rules Configuration Action rules List - It indicates the custom action rule information added to Action rules list. Click ‘Add’ to add custom action rules. Click ‘Modify' to modify selected item from the action rules list. Click 'Delete' to delete selected item from the action rules list.
Page 50 Setup - Trigger Action Setup Action Rules Add / Modify Name - Define name of action rules. Input text cannot be exceed limited (3~15). Action1 ~ Action5 - Select the action to take If the event occurs. Click ‘Save’ to save the current settings. Click 'Cancel' to return to the previous menu.
Page 51 Setup - Trigger Action Setup Image Transfer Configuration Pre / Post Alarm Image - Image Transfer due to event is configured by setting Image transfer rate and Pre / Post alarm duration. Descriptions Number of Image Deﬁne Number of image transferred per second. Pre-alarm Duration Define duration of image transfer before an event. Post-alarm Duration Define duration of image transfer after an event.
Page 52 Setup - Trigger Action Setup Relayout Configuration Relay Output - Select the Relay output. The number of relay outputs depends on the camera model. Mode - Select the monostable / bistable for relay mode. Idle State - Select whether the contact is normally opened or is closed. Duration - Relay out is operated during the setting time.
Page 53 Setup - Event Setup Event Rules Configuration Event Rules List - It indicates the custom Event Rule information added to Event Rules list. Click ‘Add’ to add custom event rules. Click ‘Modify' to modify selected item from the event rules list. Click 'Delete' to delete selected item from the event rules list.
Page 54 Setup - Event Setup Event Rules Configuration Name - Define the Event rule name. Event - Select the event among motion detection, network disconnection, temperature critical, sensor detection. Click 'Cancel' to return to the previous setting. You need a event one more. Rules - Select the action rule defined in the Trigger Action-Action rule menu.
Page 55 Setup - Event Setup Motion Detection Configuration Motion Detection - It shows the Motion event status. Event Alert Icon( ) appears if ‘Motion Detection’ is activated. VIN Source - Select the Video 1 ~ Video 4 and Set the video setup. Click 'save' to set the other video setting.
Page 56 Setup - Event Setup Temperature Mode - Select the either Fahrenheit and Celsius. Threshold - Deﬁne the temperature at which the event trigger is occurred. Temperature - It indicates the current temperature of the IP camera. Click ‘Apply’ to make above setting eﬀective.
Page 57 Setup - Event Setup Alarm Configuration Input Device Setup - Select input device type from OFF / N.O. / N.C. Operation Ignore this input sensor. The contact is normally open and closed when activated. The contact is normally closed and open when activated. Click ‘Apply’ to make above setting eﬀective.
Page 58 Setup - Record Setup Record Management Target Stream - Select the channel you want to record video. Click ‘Save’ to save the current settings. Recording List - Display the information about the recording settings. Click ‘Modify’ to modify the selected item in the recording list.
Page 59 Setup - Record Setup Record Configuration Enabled - The Recording function can be enable or disable. Storage Device - Can not be selected and shows the saved SD Card. File Type - Select the recording file type. Currently only supports TS Type. Storage - Select the storage type.
Page 60 Setup - Record Setup Recording List Storage - Select the Storage. Filter - Select the date / time, event, sort or storage format to filter the recorded video. Click the 'Refresh' button to refresh the records list. Click 'Filter' to view the ﬁltered recorded video. Recording List - Display the information to the recording video. Click 'Play' to view the selected item in list of recorded video.
Page 61 Setup - Record Setup Recording Video Recording Video Viewer - Play the recorded video. Recording Video Information - Display the information about the recorded video. Click 'Replay' to view the recorded video again. Click 'Back' to return to the previous menu.
Page 62 Setup - Record Setup Storage Configuration Display the SD card information mounted from device. When you select the item in Storage list, You can set the functions related to the SD card.
Page 63 Setup - Record Setup Storage Configuration Storage Size - Total capacity of SD card and the remainder of it are displayed. Auto Delete - Select the period for Auto delete. The image data stored before period will be deleted automatically. Delete all stored image older than selected time.
Page 64 Setup - Security Setup IP Address Filter Configuration IP Address Filter - IP filter function can be enable or disable. IP Filter Type - Select the recording IP filter type. Click ‘Apply’ to make above setting eﬀective. Filter IP Address - Display the filtered IP address. IP Address - Define the IP address you want to apply the IP filter.
Page 65 Setup - Security Setup RTSP Authentication Configuration RTSP Authentication - RTSP Authentication can be enable or disable. Click ‘Apply’ to make above setting effective.
Page 66 Setup - Security Setup IEEE 802.1X Configuration The feature is needed when connecting the camera to the network protected by the IEEE 802.1X. IEEE 802.1x - The IEEE 802.1x feature can be enable or disable. Protocol - MD5 : It provides one-way password-based network authentication of the client. - PEAP : It is similar to TTLS in that it does not require a certificate on the client side.
Page 67 Setup - Security Setup HTTPS Configuration HTTPS encrypts session data over SSL or TLS protocols instead of using plain text in socket communications. Certificate - Select an installed certificate. If you can not select a certiﬁcate, please install the certiﬁcate from the Security->Certiﬁcates menu. HTTPS connection Policy - Select one of “HTTP”, “HTTPS”, “HTTP and HTTPS” depending on the connected user authority. Click ‘Apply’...
Page 68 Setup - Security Setup Certificates Configuration Server/Client Certificates - It show the installed certificates. Create Self-Signed Certificate - A self-signed SSL certificate is an identity certificate signed by its own creator. But they are considered to be less trustworthy. Properties - Shows information about the selected certificate. Delete - Delete the selected certificate.
Page 69 Setup - Security Setup Certificates Configuration Detail for Install Certiﬁcation. Certiﬁcate From Signing Request - Select to install signed certiﬁcate returned from the CA. Certiﬁcate And Private Key - Select to install Certiﬁcate And Private Key to install a certiﬁcate and private key. Certiﬁcate Name - Enter a unique name to identify certiﬁcate. Select File - Choose certiﬁcation ﬁle. OK - Request installing certiﬁcate. Cancel - Cancel install certiﬁcate and then back to certiﬁcates conﬁguration. Detail for Install CA Certiﬁcation. Certiﬁcate Name - Enter a unique name to identify CA certiﬁcate. Select File - Choose CA certiﬁcation ﬁle OK - Request installing CA certiﬁcate.
Page 70 Setup - Security Setup Service Conﬁguration Telnet - The Telnet function can be enable or disable. Click ‘Apply’ to make above setting eﬀective.
Page 71 Setup - System Setup System Information System Capability information. Device Name - You can define the device name. Click ‘Apply’ to make above setting eﬀective.
Page 72 Setup - System Setup Firmware Update Version Information - It shows the current Firmware Version in the system. Web Update - Select the Firmware ﬁle in your computer by clicking [Select ﬁle] button. Start F / W Update - Click this button to start update. Progress of uploading will be displayed using Progress Bar. If you assign the wrong ﬁle name, an error message will be shown.
Page 73 Setup - System Setup Firmware Update FTP Server Address - Define FTP Server IP Address. If IP Address form is incorrect, a Message box will be shown to try again. FTP Port - Define the FTP Server Port. If Port is not appropriate, it is impossible to access to FTP Server. User ID - Define User ID to access to the FTP Server.
Page 74 Setup - System Setup Date & Time Settings TimeZone Setup - Choose TimeZone for camera. It will be activated after clicking ‘Apply’ button. Prior to setting below ‘New Camera Date & Time’, set correct Timezone ﬁrst. Time Format - Select the time format yy-mm-dd or mm/dd/yy. Current Date & Time - Shows the current date and time setting in the Camera. Synchronize with my computer - Set the date / time using those of PC currently connected.
Page 75 Setup - System Setup DST Settings Daylight Saving Time (DST) is the practice of setting the clocks forward one hour from standard time during the summer months, and back again in the fall, in order to make better use of natural daylight. General Setting - DST function can be enable or disable.
Page 76 Setup - System Setup Users Management Users - List all the user accounts for authentication. Add - Register a new user. Enter a new user ID except Admin since it exists. Password Enter the user Password. Verify Enter the user Password again for veriﬁcation. Select Operator or Viewer. User Viewer : Only monitoring is allowed.
Page 77 Setup - System Setup System Log Filter - Select a date, time, sort or type of log to ﬁlter the log. Click the 'Refresh' button to refresh the log list. Click 'Filter' to view the ﬁltered log. System Log List - The ﬁltered log is displayed.
Page 78 Setup - System Setup Factory Reset Reset to the factory defaults - Return the setup to the factory default. All - Reset all Settings to the factory defaults. Except Network Settings - Except Network related settings , reset all others to the factory default. Click ‘Apply’ to make above setting eﬀective.
Page 79 Setup - System Setup Restart If you click the ‘RESTART’ menu, a message box will be shown to conﬁrm. Click the ‘OK’ button to restart.
Page 80 Setup - System Setup System Open Source License This menu will show you all the list of System Open Source License in the camera. Open Source Name / Version / License.
Page 81: Appendix
Appendix A : Current TCP/IP Settings If your IP settings are obtained automatically, you could use the MS-DOS prompt (or Command Prompt) to determine your IP address. For information on how to do this, please read the FAQ. 1. Windows 7 Users 2.
Page 82 Appendix B : Changing IP address and subnet mask 1. Windows 7 Users 2. Windows 10 Users Start Start Control Panel Settings Network and sharing center Network & Internet Click on Change adapter options Manage network connections in Ethernet Select the Ethernet, Right click Properties and choose Properties Select Internet Protocol...
Page 83: Faqs
Appendix 1. My POWER light is not on? 8. How do I “PING” an IP address? Power is not being supplied to the unit. Please use the 1) Open an MS-DOS (or Command) prompt 2) At the prompt type - “ping xxx.xxx.xxx.xxx” (without the power supply shipped with the unit and verify that a power source is active from the attached power outlet quotes and replace the “x”...
Page 84 Speciﬁcation SPECIFICATION...
Page 85: Dimensions
Speciﬁcations - Dimension Unit: inch (mm) 4.25" (108mm) 7.55" (192mm)
Page 86: Warranty
Warranty Information Digital Watchdog (referred to as “the Warranter”) warrants the Camera against defects in materials or workmanships as follows: Labor: For the initial five (5) years from the date of original purchase if the camera is determined to be defective, the Warranter will repair or replace the unit with new or refurbished product at its option, at no charge.
Page 87: Limits & Exclusions
This warranty gives you specific legal rights, and you may also have other rights from vary from state to state. If the problem is not handled to your satisfaction, then write to the following address: Digital Watchdog, Inc. ATTN: RMA Department 5436 W Crenshaw St...
Page 88 DW® East Coast office and warehouse: 5436 W Crenshaw St., Tampa, FL 33634 DW® West Coast office and warehouse: 16220 Bloomfield Ave., Cerritos, CA 90703 Phone: 866-446-3595 | Fax: 813-888-9262 www.Digital-Watchdog.com technicalsupport@dwcc.tv Technical support phone: USA and Canada: 866-446-3595 International: +1-813-888-9555 French Canadian: +1-904-999-1309 Technical support hours: Monday-Friday 9:00 AM to 8:00 PM EST...
