Installation -

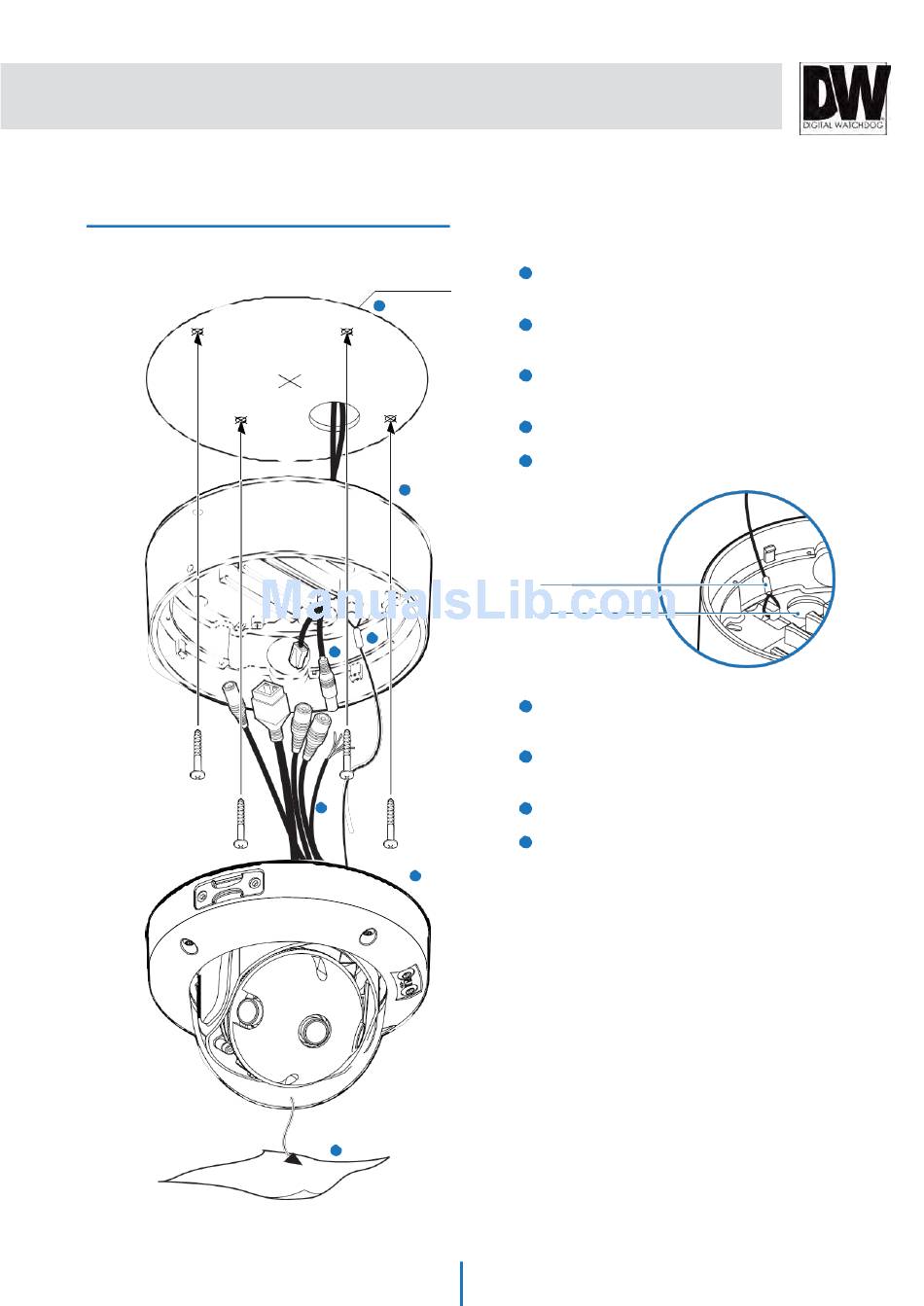

Mounting the Camera

Template Sheet
2
3
4
S
6
7
8
7
1
Disassemble the camera, See the section 'Disassemble
the camera' for details.
2
Using the template sheet, make the cabling holes on
the wall/ceiling.
3
Fix the Mount bracket on the wall/ceiling by
screw provided.
4
Hook the Main body to Mount bracket with safety wire.
S
Bring the cables into the Mount bracket through the hole.
Safety Wire
Mount Bracket Hole
6 Connect the cables respectively. See the section
'Cabling' for details.
7
After connecting the cables, main body to be assembled
into the Mount bracket.
8 Detach the protection film from the Dome Cover.
9 Adjust the panning angle of the camera and tighten
the hard lock set screw on the camera's Dome. See
next page for more information.
