Digital Watchdog DWC-PVF5M1TIRC6 User Manual

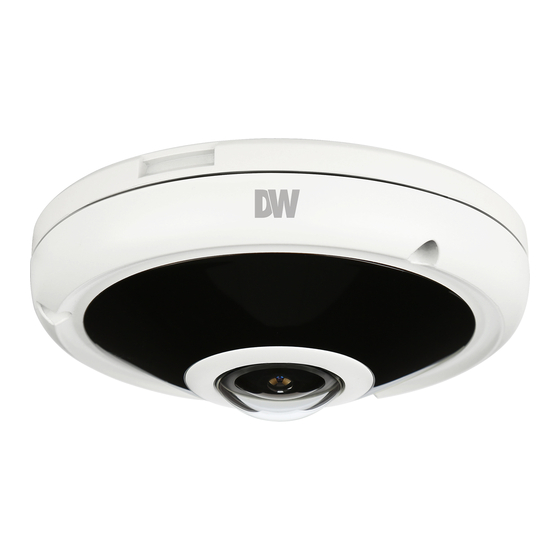

Megapix caas 5mp 180 deg, 360 deg fisheye view camera
Hide thumbs Also See for DWC-PVF5M1TIRC6:
Table of Contents

Advertisement

Quick Links

MEGApix
®
180°, 360° fisheye view camera
DWC-PVF5M1TIRC6 / DWC-PVF5M1TIRC1
User's Manual
Ver. 02/18
Before installing and using the camera, please read this manual carefully.
Be sure to keep it handy for future reference.
CaaS
5MP
TM
