Page 1: Bullet Camera

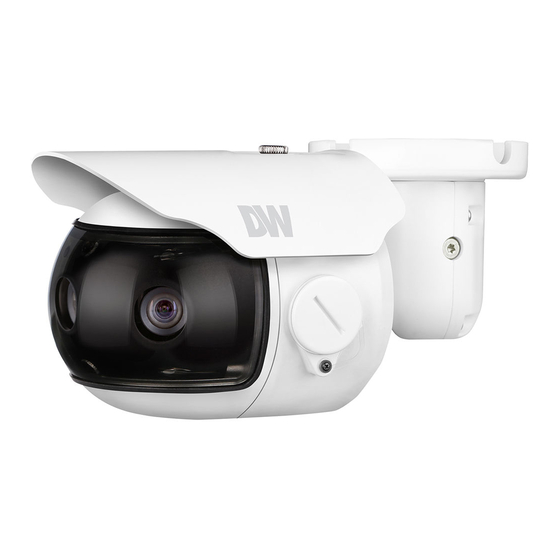

6MP 180° Panoramic Analog High Definition Bullet Camera DWC-PB753WTW ABOUT MANUAL Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for future reference. 03/2016... - Page 2 PRECAUTIONS Do not open or modify. Do not open the case except during maintenence and installation, for it may be dangerous and can cause damages. Do not put objects into the unit. Keep metal objects and flammable substances from entering the camera. It can cause fire, short-circuits, or other damages.
-
Page 3: Table Of Contents
Table of Contents TABLE OF CONTENTS Introduction Features Parts and Descriptions Dimensions Installation Inside the Box Installation Instructions Cabling Instructions Connecting to Monitors Control Board Adjusting the Camera Angle OSD Menu How to Acces the OSD Menus Module OSD Menu Exposure Color Day &... -
Page 4: Features
FEATURES* Analog High Definition (AHD) HD over Coax Technology 3x2MP Panasonic 1/3" CMOS Sensor 6MP 180° Panoramic Camera STAR-LIGHT™ Super Low Light Technology 6MP Resolution at 30fps 3x 4.3mm Fixed Lenses Wide Dynamic Range (WDR) OSD Control Via Coaxial (UTC) Smart DNR™... -
Page 5: Parts And Descriptions
PARTS & DESCRIPTION* POWER AHD 1CH Sunshield AHD 2CH AHD 3CH AHD 4CH ALARM RS485 Ball Neck Bracket Pan/Tilt Stoper Screw Console Cap Lens Set Screw... -
Page 6: Dimensions
DIMENSIONS IN MILLIMETERS (MM/IN)* 275.0 [10.8”] 105.5 [4.15”] 249.9 [9.83”] 78.0 [3.07”]... -
Page 7: Inside The Box
INSIDE THE BOX* Quick Manual Template Sheet Test Monitor Cable T-Wrench Screw & Plastic Anchor-4pcs Sunshield Sunshield Screws... -
Page 8: Installation Instructions
INSTALLATION INSTRUCTIONS* 1. Using the mounting template or your own camera, mark and drill the necessary holes to mount the bracket to a wall or ceiling. 2. Pull all necessary wires through and make the proper connections. 3. Use the four (4) mounting screws to install the camera on the wall or ceiling. 4. -
Page 9: Cabling Instructions
CABLING INSTRUCTIONS* Use the diagram below to connect the camera to external devices: 1. Power: connect the camera to a proper power supply. 2~4. AHD BNC Outputs 1~3: Connect each of the camera’s lenses as a separate output to a DVR supporting AHD signal such as the VMAX AHD CORE and VMAX A1 . -
Page 10: Connecting To Monitors
CONNECTING TO MONITORS* Use the diagram below to connect to a Monitor or CRT Monitor properly. 12VDC/24VAC AHD DVR Secondary Video Output* BNC Selection Switch Monitor (See page 13) Power Connection - 12VDC/24VAC Dual Voltage (Auto Polarity Detection and Protection) All cameras are equipped with a second video output for on-site configuration. -
Page 11: Control Board
CONTROL BOARD* Test Video Output BNC Selection Switch OSD Joystick Controller Remove the console’s cover by rotating it counter-clockwise. Use the Joystick to control the camera’s OSD options. -
Page 12: Adjusting The Camera Angle
ADJUSTING THE CAMERA ANGLE* CAUTION : Do not rotate more than 360 Do not unnecessarily twist too many times. - Page 13 HOW TO ACCESS THE CAMERA’S OSD MENUS* The camera has three separate sensors, each with its own OSD menu and settings. When adjusting the camera’s settings, each lens/ sensor will have their own set of values and settings and will be set separately. In addition, the camera offers a 4 BNC output of a combined 180 view as a single camera...
-
Page 14: Module Osd Menu
MODULE OSD MENU* EXPOSURE COLOR DAY & NIGHT FUNCTION LENS WHITE BAL. MODE SHARPNESS BRIGHTNESS / SHUTTER / AUTO / AUTO-EX / PRESET AUTO / COLOR / BW 0 ~ 20 CDS THRES EXIT JUMP FOCUS ADJ / MANULAL BACKLIGHT 0 ~ 20 COLOR GAIN SAVE &... -
Page 15: Exposure
EXPOSURE LENS The camera’s lens mode is set by default to AUTO. This allows the camera’s iris automatically. Under the LENS sub-menu, you can adjust the following settings: - Brightness: Adjust the camera’s brightness from 0~20. The higher the number, the brighter the image will appear. -
Page 16: Blc Back Light Compensation
EXPOSURE BACKLIGHT HIGHLIGHT MASKING EXPOSURE HME allows objects to appear clearly on the screen by masking extremely bright areas. To setup HME, set the level and color. The lower the setting, the darker the masking areas have to be. Select from: 0 ~ 20, default is 10. Color: Set the color of the HME mask. - Page 17 EXPOSURE DYNAMIC RANGE COMPRESSOR Enables dark areas in images to become more visible without overexposing the bright areas to create one perfect image. Select from: OFF / LOW / MIDDLE / HIGH. If WDR or DEFOG are enabled, the DRC menu is disabled. DEFOG Allows the camera to process a scene that is obscured by fog or weather conditions and provides a visibly improved image.
-
Page 18: Color
COLOR WB MODE AUTO Auto Tracking White Balance Control mode compensates for color temperature changes between 2400K and 11000K AUTO-EX Auto White Balance Control mode compensates for color temperature changes lower than 2000K and higher than 15000K PRESET Preset fixes the white balance based on the current lighting automatically. MANUAL Users can control the white balance manually by changing RED GAIN and BLUE GAIN (see below). -
Page 19: Day & Night
DAY & NIGHT D&N MODE AUTO / COLOR / B&W AUTO: The camera will switch between color and B/W based on the AGC levels. - AGC THRESHOLD: Set when the camera switches between Day & Night. - AGC MARGIN: Set the value added to the AGC Threshold. Adjust the value based on the environment in which the camera is installed. -
Page 20: Function
FUNCTION SHARPNESS 0 ~ 10 Sets the image sharpness. The higher the number, the sharper the image. -
Page 21: Motion
MOTION The camera can detect motion and display an alarm on the screen. Motion detection settings must be adjusted for each sensor. DET. WINDOW - WINDOW ZONE: Select a zone to setup from the 4 zones available. - WINDOW USE: Enable or disable the selected motion zone. - DET H-POS: Move the Zone left or right. -
Page 22: Privacy
PRIVACY You can hide some parts of the screen for privacy masking. A total of 8 different privacy masking zones are available. The cameras support square privacy masks or advanced polygon masks. - ZONE NUM.: Select the zone number you want to setup. - ZONE DISP.: To enable it, turn the display option ON. - Page 23 PRIVACY You can hide some parts of the screen for privacy masking. A total of 8 different privacy masking zones are available. The cameras support square privacy masks or advanced polygon masks. POLYGON MASKS - ZONE NUM.: Select the zone number you want to setup. - ZONE DISP.: To enable it, turn the display option ON.
-
Page 24: Setup
SETUP CAM. TITLE Add a name to the camera. Set the title by using the OSD joystick. FREQUENCY* When the camera’s image has flickering issues, change the frequency value to adjust the image. LANGUAGE Select from the following: English (Default), Chinese, Chinese (S), and Japanese. *NOTE: Frequency setup menu is available on the 2 sensor only. - Page 25 SETUP DEFECT DET. The camera can detect and correct dead pixels in the image. Press the select button and set the threshold level. The camera will detect and adjust the pixels automatically. INITIAL Reset the camera to its default settings. Press and hold the select button for five (5) seconds.
- Page 26 EXIT EXIT Exit the OSD menu without saving any changes. SAVE&EXIT Exit the OSD menu after saving the recent changes.
-
Page 27: 4Th Bnc Output Panoramic Osd Menu
BNC OUTPUT PANORAMIC OSD MENU* MOTION When enabled, the camera will focus into the sensor’s display where motion is detected. This feature is available only in the 4th BNC output, when the camera’s image is displayed as a view as a single camera output. The focused area will be shown in the top screen above the panoramic camera view. - Page 28 BNC OUTPUT PANORAMIC OSD MENU* STITCH Use this menu to adjust the stitching between each of the cameras as needed. You can adjust each individual camera’s position by selecting the camera name and move the image up, down, left and right to align with the camera next to it. Once the individual cameras’...
- Page 29 TROUBLESHOOTING Before sending your camera for repair, check the following or contact our technical specialist. FOR NO VIDEO Check the coaxial cable and make sure it is connected securely. Check the lens’ iris adjustment at the camera’s OSD menu. Check the power supply and make sure the camera has the proper voltage and current.
- Page 30 WARRANTY INFORMATION* Digital Watchdog (referred to as “the Warrantor”) warrants the Digital Watchdog Camera against defects in materials or workmanship as follows: LABOR: For the initial five (5) years and one (1) year on IR LED from the original purchase date, if the camera is determined to be defective, the Warrantor will repair or replace the unit with a new or refurbished product at its option at no charge.
- Page 31 This warranty gives you specific legal rights, and you may also have other rights that vary from state-to-state. If the problem is not handled to your satisfaction, then write to the following address: Digital Watchdog, Inc. ATTN: RMA Department 5436 W. Crenshaw Street...
- Page 32 SPECIFICATIONS* VIDEO Image Sensor 3x Panasonic 1/3” CMOS Sensors Active Pixels 3X 1944 (H) x 1092 (V) Scanning System Progressive scan Frequency 60Hz/50Hz Signal Technology 6.0 Megapixel AHD (3 x 2MP Sensors) Synchronization Internal Resolution 6.0 Megapixel (3x 1920x1080 Sensors) Minimum Scene Illumination F2.0 (30IRE): 0.06Lux [Color] F2.0 (30IRE): 0.01 Lux [B&W]...
- Page 33 SPECIFICATIONS* OPERATIONAL (CONT.) White Balance Auto / Auto-Ex/ Preset / Manual Day and Night Day/ Night/ Auto Auto Gain Control Max 60dB Motion Detection 3 Zones per Camera, total 12 Motion Zones Privacy Zones 16 Masks per Camera, total 72 Privacy Masks RS485 PELCO D/PELCO C Digital Zoom...
- Page 34 MEMO*...
- Page 35 MEMO*...
- Page 36 5436 W Crenshaw St. Tampa, FL 33634 Tel : 866-446-3595 / 813-888-9555 Fax : 813-888-9262 www.Digital-Watchdog.com technicalsupport@dwcc.tv Technical Support Hours : Monday-Friday 9:00am to 8:00pm EST...
