Factory Five Racing Mk4 Roadster Assembly Manual page 91

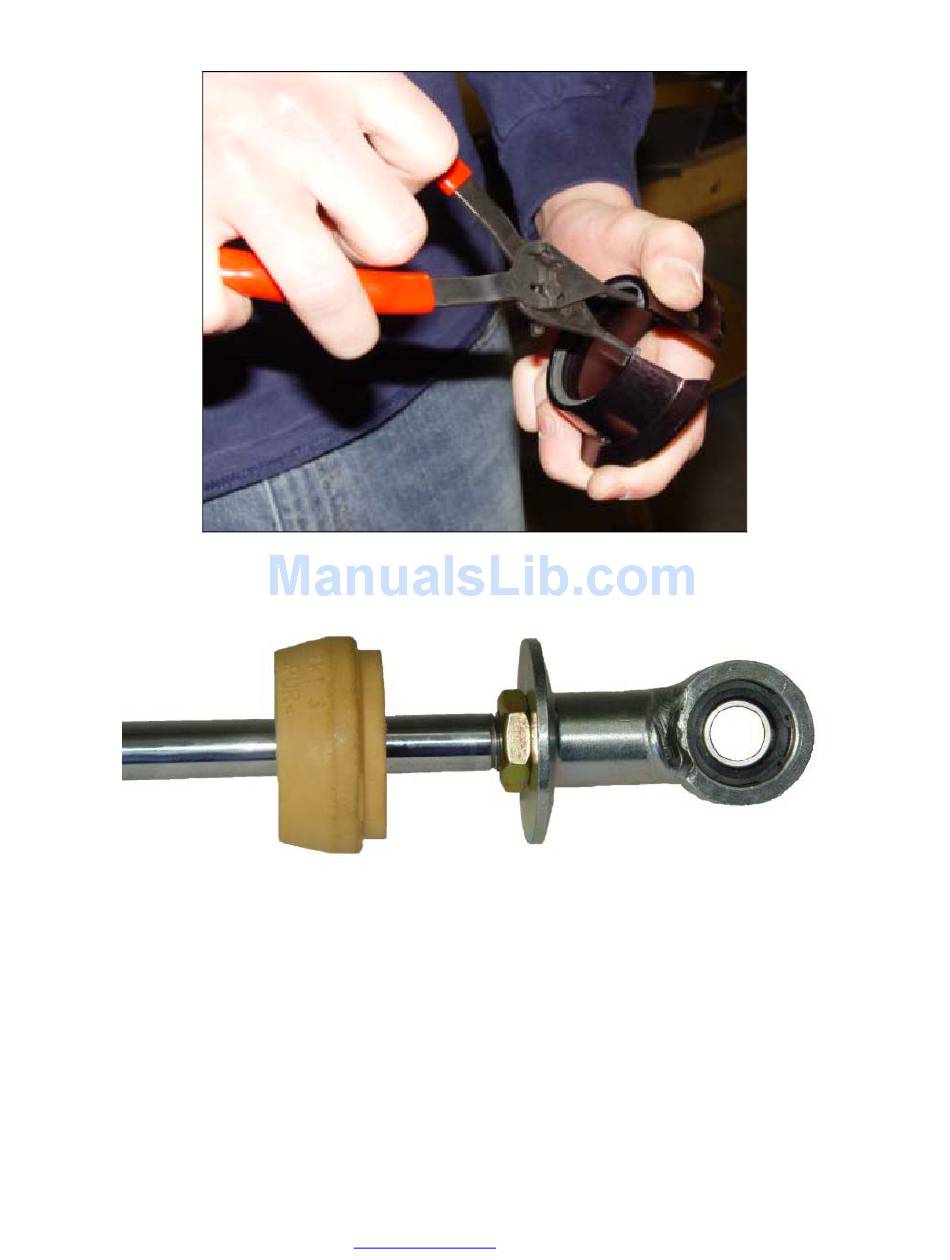

Slide the rubber bumper about two inches down on the shaft.
Put the spring on the shock, then install the spring hat on the shaft end of the shock and push the rubber
bumper up against it.
Rotate the spring seat back up the sleeve so that the spring pushes the hat tight against the end of the
shock.
Install the snap ring on the spring hat so that it holds onto the shock end. Make sure that the slot in the
snap ring and the slot in the spring hat are not aligned.
