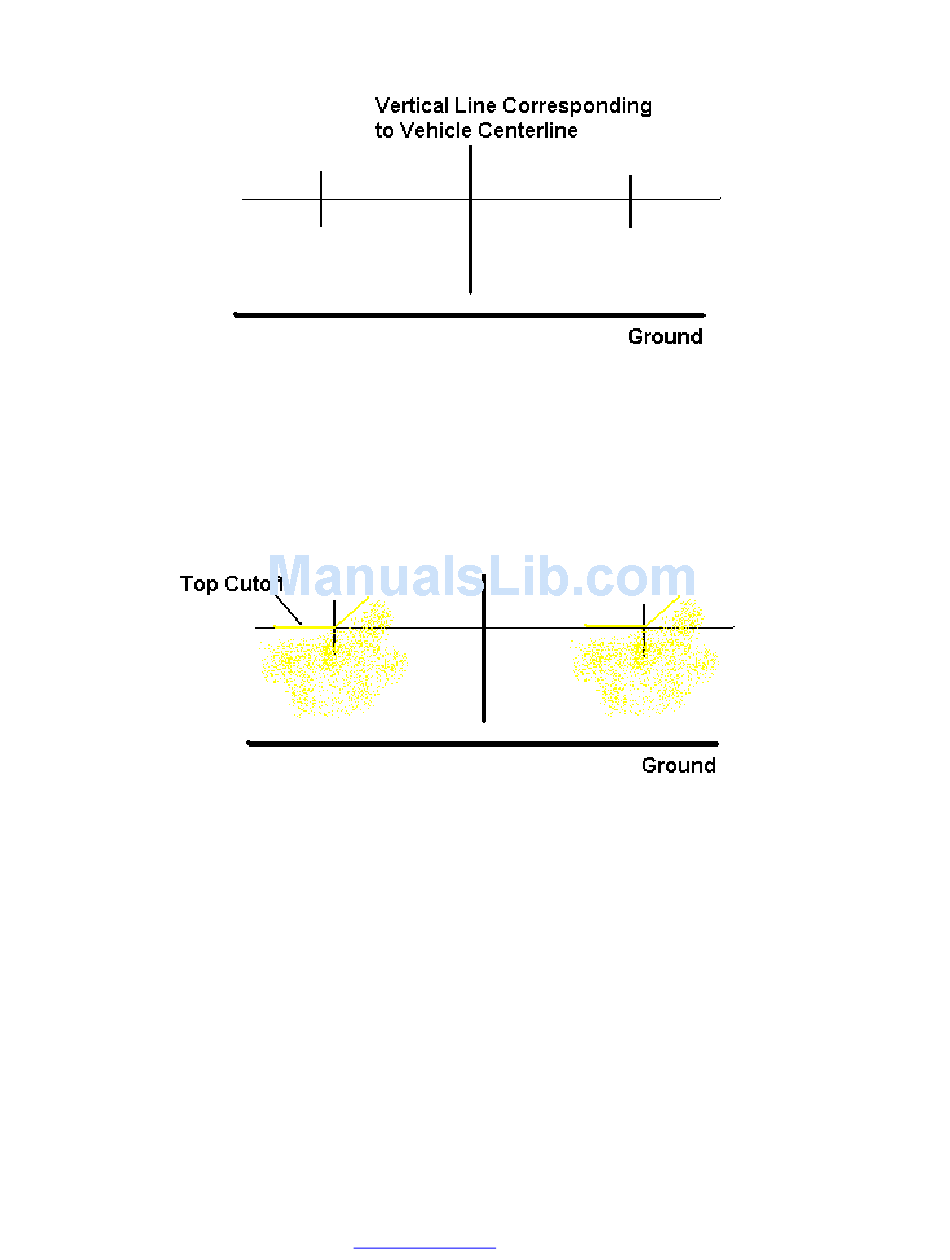

Turn the headlights on and adjust the vertical aim of the headlights so that the top horizontal cutoff of
each of the beams is located along the horizontal line drawn on the wall.
Adjust the horizontal aim of the low beam headlights so that the point at which the top cutoff of the
beam begins to slope upwards is located at the vertical marks.

Alignment Specifications

Take your new car to an alignment shop and have the car aligned properly before hitting the track. A
minor flaw in alignment can cause very "twitchy" handling. Avoid temptation and never drive a car
without proper alignment.
For a manual steering car use the following specifications:
Caster: 3°
Camber: -0.5°
1
Total Toe: / "
16
For a power steering car use the following specifications:
479
