The stud should get mounted on the left side next to the clutch pedal pivot sleeve boss. A tap in with a
hammer and punch will get the stud to stick while tightening.

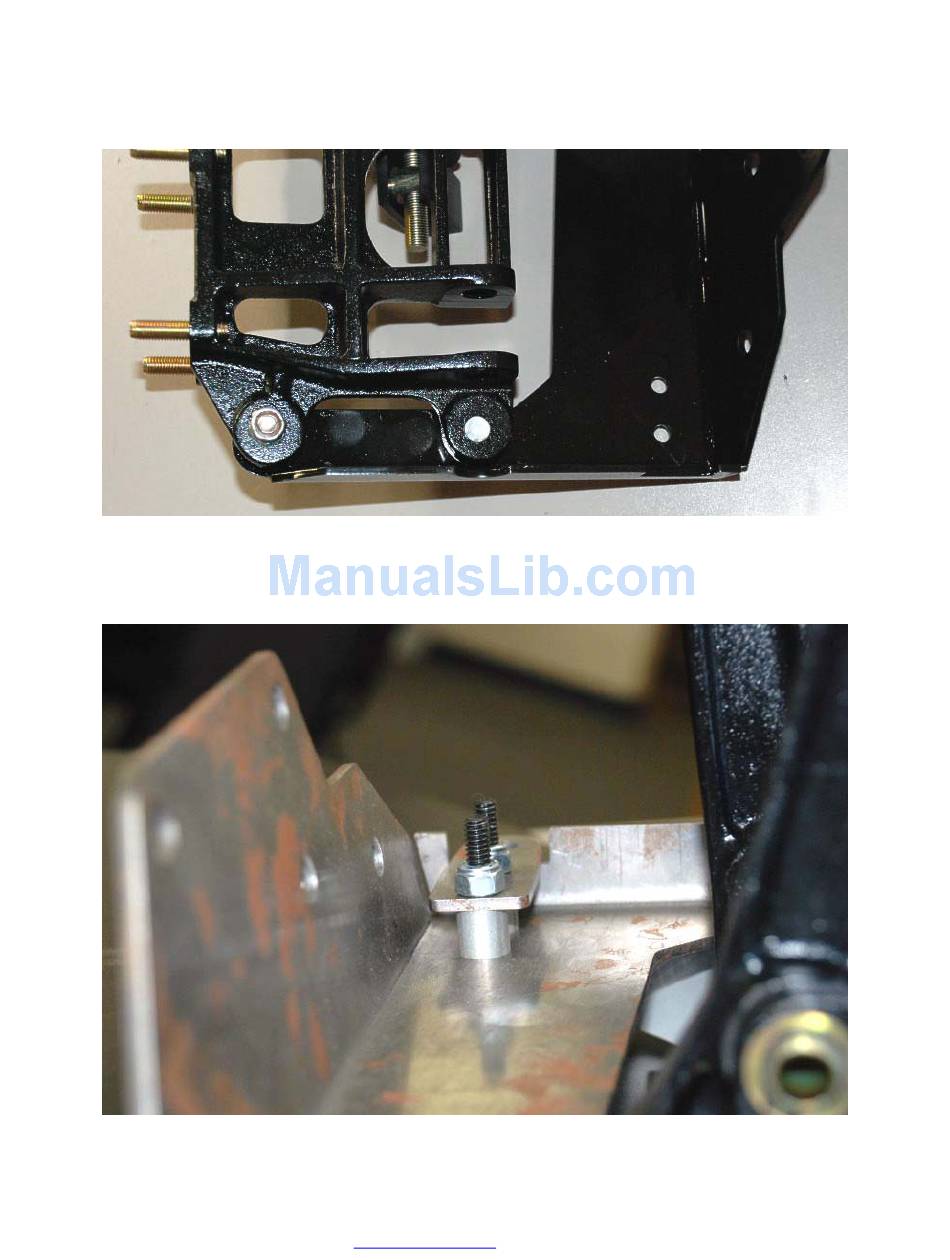

Attach the Clutch pedal stop mount to the bottom of the pedal box using two ¼" socket head screws,
spacers and locknuts.
Slide the Quadrant and new pivot sleeve assembly through the hole in the side of the Wilwood pedal
bracket and remount the clutch pedal.
