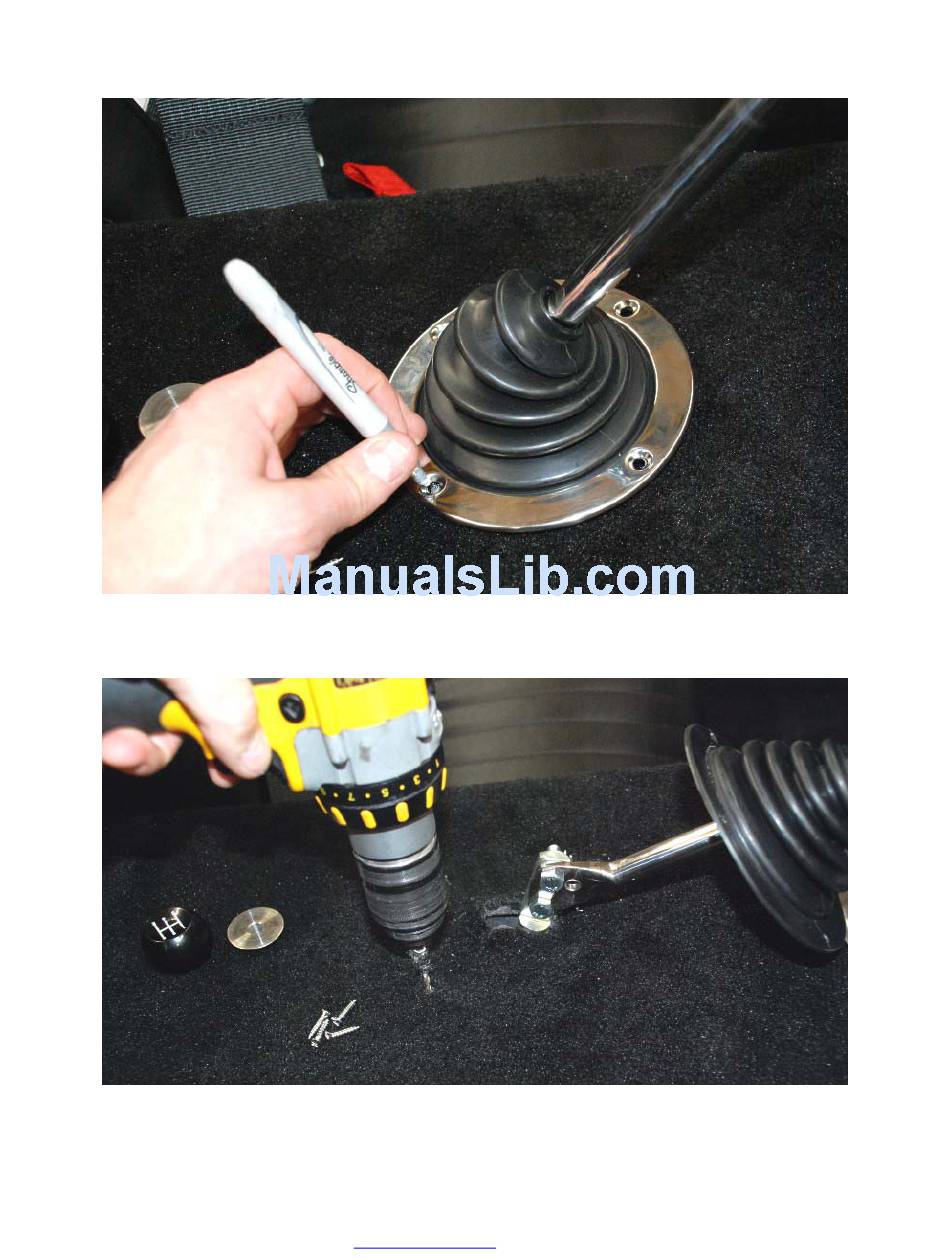

Remove the boot and drill
/
" holes in the spots you marked.
1
8
Re-install the boot and screw down to the tunnel with the countersunk screws. A small screwdriver can
help to locate the holes.
415
www.factoryfive.com
508-291-3443
