A.5

Device Location

The installation location must have
— a minimum distance of not less than 150 mm (6 inch) between the sides of the
scanner and the wall,
— a minimum distance of not less than 300 mm (12 inch) between the backside of the
scanner and the wall,
— a minimum distance of not less than one meter (3 feet) from any door or entrance
way and the scanner.
Use illustration below as a guide.
Do not operate the scanner in an area that has poor air circulation, and/or that is non-
ventilated.
Place the scanner on a flat and solid base. The load bearing capacity of the base must
correspond to the device weight.
It is recommended to place the scanner always on the floor stand which comes with the
scanner. The floor stand gives the best ergonomic position when using the scanner.
Choose a location that complies with the limits of temperature and humidity. Refer to the
technical specification, chapter F.3.
Note: Before using the
environment allow at least one hour for temperature adaptation.
Temperature adaptation means:
A fast change from cold to warm environmental conditions can build up
condensation inside the housing. This will result in unfavorable scanned images
and could cause permanent damages to the unit.
Page 16

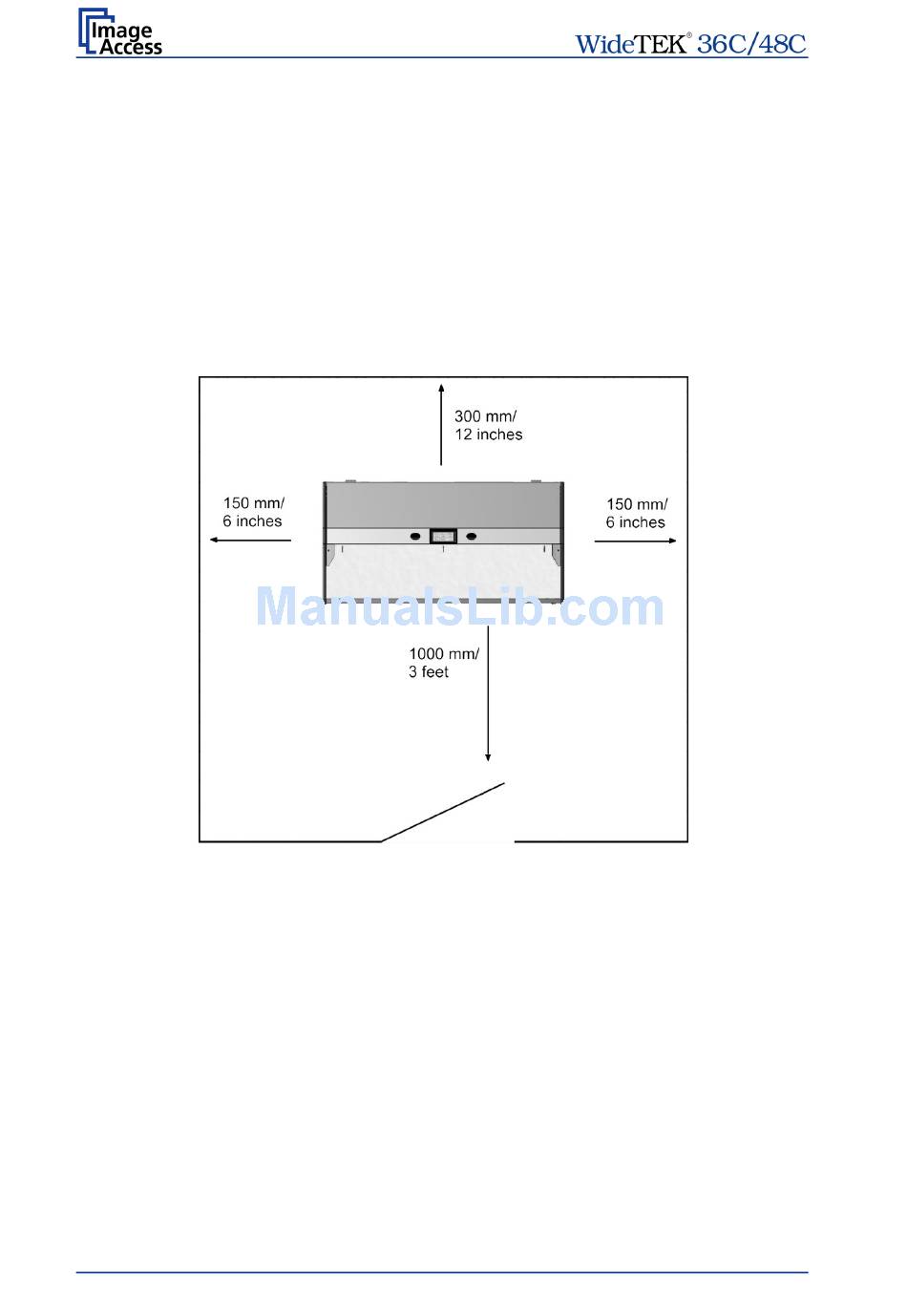

Picture 1: Minimum distances to the scanner
WideTEK® 36C / WideTEK® 48C
scanner in the new
