Monitor Connector WideTEK
A.9.5
To show previews of the scanned documents an external monitor can be connected to the
WideTEK 36C.
®
A DVI video connectors allows connecting the monitor to the scanner.
Monitor Connector WideTEK
A.9.6
To show previews of the scanned documents an external monitor can be connected to the
WideTEK ® 48C.
A DVI video connector allows connecting the monitor to the scanner.
Note: Although the scanners receptacle will accept DVI-D, DVI-A and DVI-I
plugs, it only supports DVI-D.
Valid for both
scanner types
DVI-I to VGA cables will not work on this connector.
Page 24

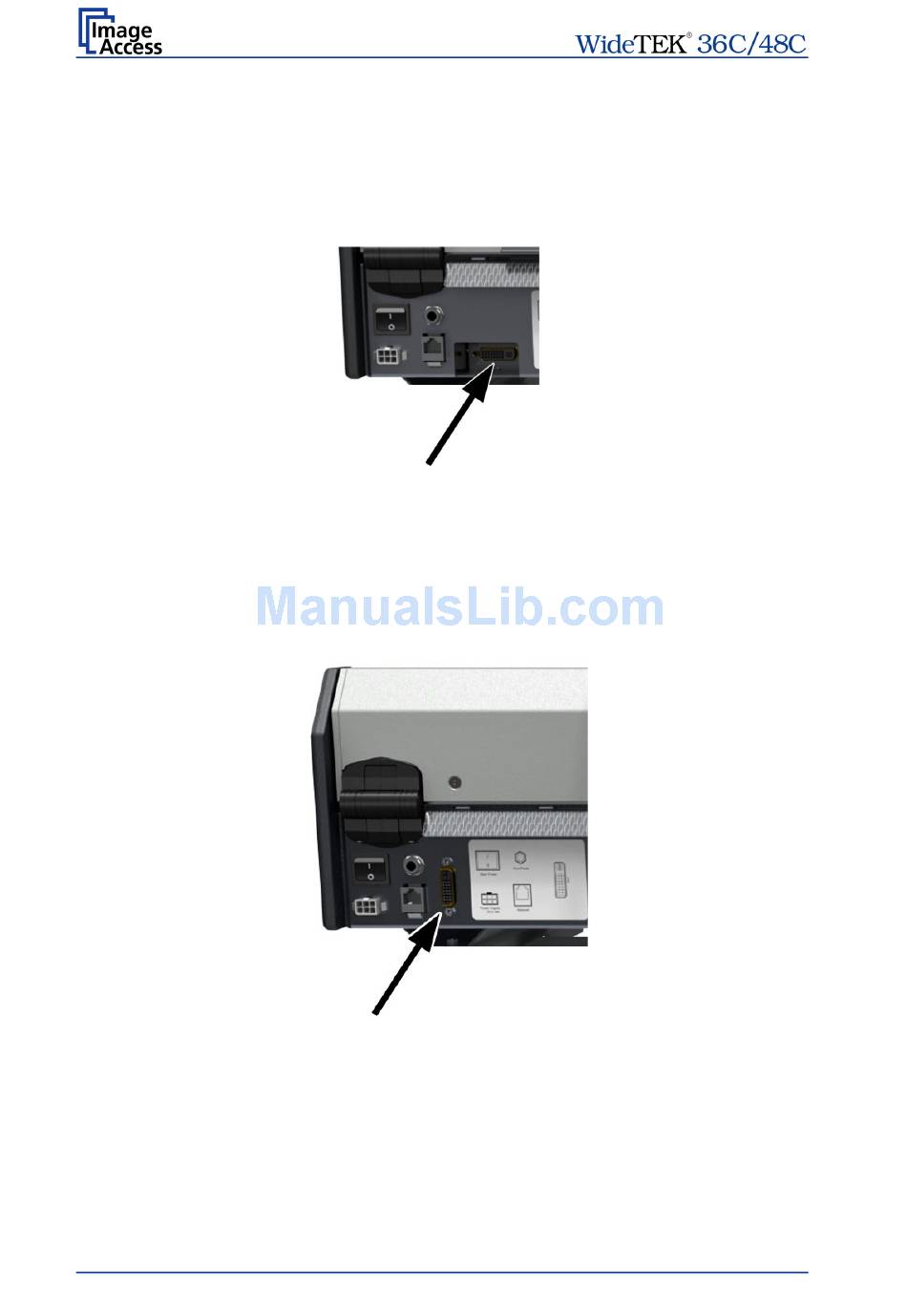

Picture 11: WideTEK 36C DVI connector

Picture 12: WideTEK 48C DVI connector
® 36C
® 48C
