Image Access Bookeye 4 Installation Manual

V-glass plate
Hide thumbs Also See for Bookeye 4:

Advertisement

Quick Links

Download this manual
V-Glass Plate
Installation

Advertisement

loading
Need help?

Need help?

Do you have a question about the Bookeye 4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Image Access Bookeye 4

Summary of Contents for Image Access Bookeye 4

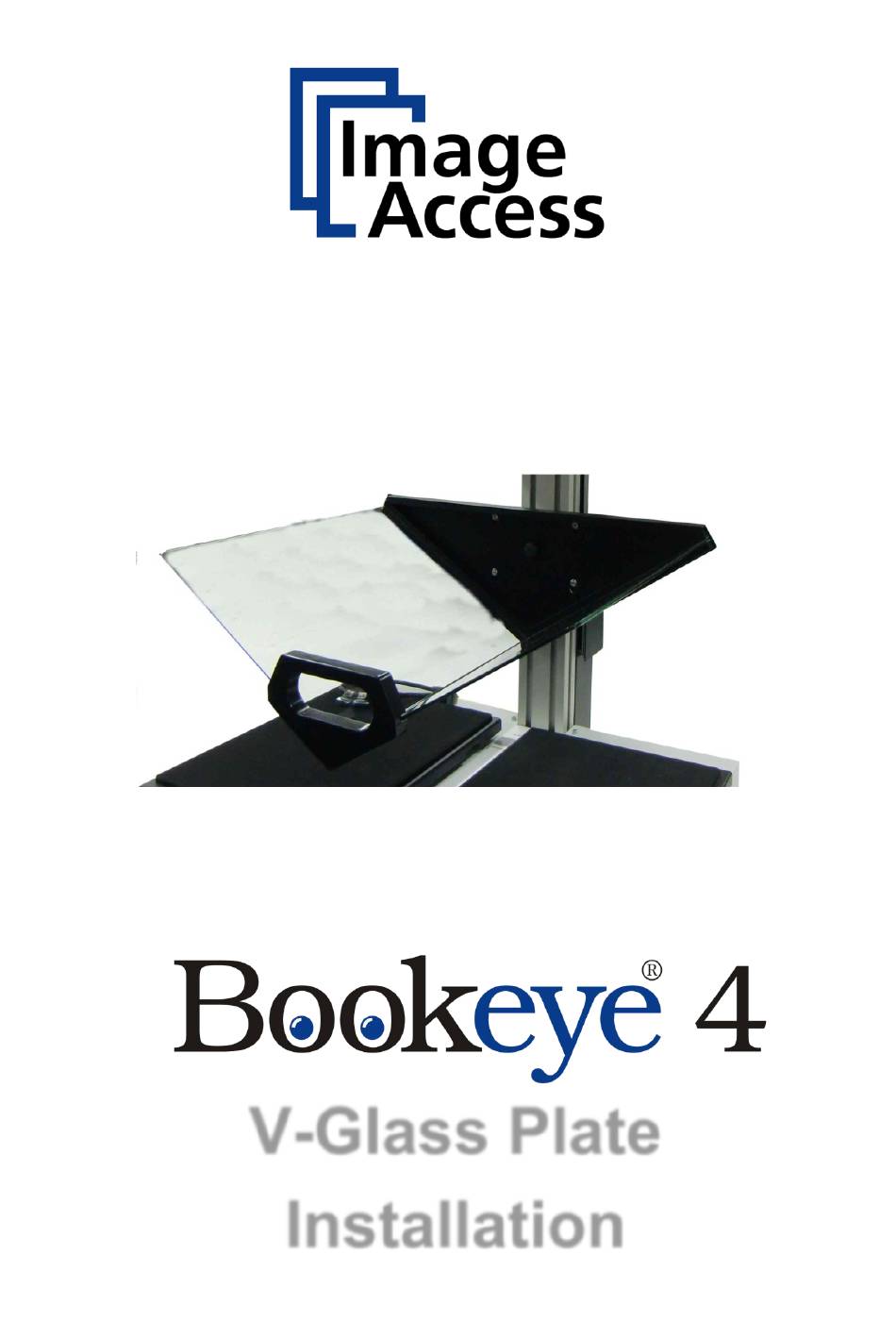

  • Page 1 V-Glass Plate Installation...
  • Page 2 File: BE4_VGlassPlate_InstallationManual.docx...
  • Page 3 Image Access. All other trademarks are the property of their respective owners. Image Access reserves the right to change the described products, the specifications or documents at any time without prior notice. For the most recent version, always check our web site www.imageaccess.de...
  • Page 4 Version History Version Published in Content/Changes/Supplements October 2013 First version. Page 4 V-Glass Plate Installation...
  • Page 5 Table of Content Version History --------------------------------------------------------------------- 4 A General Precautions ---------------------------------------------------------- 8 Safety Precautions ..................8 Precautions for Service Technicians ............8 B Components--------------------------------------------------------------------- 9 Balance Weight Carrier with Cover Plate ............ 9 V-Glass plate carrier ................. 10 V-Glass Plate .................... 11 C Assembling the Glass Plate ---------------------------------------------- 12 BE4-V2A ....................
  • Page 6 Table of Pictures Picture 1: Balance weight carrier with cover plate and screws ........... 9 Picture 2: V-Glass carrier with screws ................10 Picture 3: V-Glass Plate with fixing screw ................ 11 Picture 4: Scanner at working desk ................. 12 Picture 5: Remove screws marked with arrows ...............
  • Page 7 Table of Pictures, part 2 Picture 31: Spacer between camera neck and balance weight carrier ......28 Picture 32: Position of balance weight carrier ..............29 Picture 33: Mounting the cover plate ................29 Picture 34: Remove T-nuts ....................30 Picture 35: Remove Hexagon head screws ..............30 Picture 36: Fasten the V-Glass plate carrier at the right side ..........31 Picture 37: Fasten the V-Glass plate carrier at the left side ..........31 Picture 38: Remove toggle screw..................32...
  • Page 8 Before servicing, unplug the power source from the scanner to prevent electrical shock hazard.  When replacing parts, use only Image Access recommended components for safety.  Check the condition of power cord. Replace if wear or damage is evident.
  • Page 9 Components Balance Weight Carrier with Cover Plate Picture 1: Balance weight carrier with cover plate and screws V-Glass Plate Installation Page 9...
  • Page 10 V-Glass plate carrier Picture 2: V-Glass carrier with screws Page 10 V-Glass Plate Installation...
  • Page 11 V-Glass Plate Picture 3: V-Glass Plate with fixing screw V-Glass Plate Installation Page 11...
  • Page 12 Assembling the Glass Plate Bookeye ® 4 scanner exists in two chassis versions, internally named as BE4-V2A and BE4-V2B The description of the assembling starts with the chassis version BE4-V2A. BE4-V2A Bookeye ® 4 in the correct position at the working desk. That means that all Move the bottom side screws must be accessible.
  • Page 13 Remove the two screws of the blue head cover. Picture 5: Remove screws marked with arrows At the bottom side of the camera neck remove the black screw caps of the lower screws. Remove the lower screws. ONLY the two lower screws. Picture 6: Removing caps of lower screws V-Glass Plate Installation Page 13...
  • Page 14 Place the Balance weight carrier as shown and fix it with the four screws as displayed in the following six. Note: It is recommended to insert at first the two screws at the bottom position. Picture 7 shows the position of the carrier. Picture 7: Balance weight carrier hold at back side of camera neck Picture 8: Balance weight carrier positioned over bottom screws Page 14...
  • Page 15 Insert the screws at the bottom side. Attach the screws at first only by hand. Picture 9: Screw inserted The next pictures show how to position the carrier at the upper side of the camera neck and how to fix it. Picture 10: Position of upper bore holes of the carrier V-Glass Plate Installation Page 15...
  • Page 16 Picture 11: Fixing the carrier with screws Picture 12: Screws at upper side of carrier Page 16 V-Glass Plate Installation...
  • Page 17 Finally fix the two screws at the lower part of the carrier with an appropriated Allen wrench. Picture 13: Fixing the screws with tool V-Glass Plate Installation Page 17...
  • Page 18 Mounting the cover plate for the balance weight carrier. Picture 14: Fixing the upper part of the cover plate (two screws) Picture 15: Fixing the lower part of the cover plate (two screws) Page 18 V-Glass Plate Installation...
  • Page 19 After assembling the balance weight carrier to the camera neck in the next step the V-Glass plate carrier will be mounted. Picture 16: Front view of the Bookeye with mounted balance weight carrier V-Glass Plate Installation Page 19...
  • Page 20 Mounting the V-Glass plate carrier Fasten the glass plate carrier to the balance weight carrier with four screws. Picture 17: Two screws at the left side Picture 18: Two screws at the right side Page 20 V-Glass Plate Installation...
  • Page 21 Mounting the V-Glass plate In a first step loosen the four screws (marked with arrows in the next picture) at the carrier plate a little. Picture 19: Screws for the V-Glass plate Guide the V-Glass plate over the screws of the glass plate carrier. Picture 20: V-Glass plate over screws V-Glass Plate Installation Page 21...
  • Page 22 Guide the carrier over the screws and fix the screws. Picture 21: V-Glass plate assembled Page 22 V-Glass Plate Installation...
  • Page 23 Moving the V-Glass plate horizontally The V-Glass plate can be moved to the right and to the left, to position the V-Glass plate exactly over the book binding. Note: Because of the glass plate weight it is recommended to move the glass plate carefully with two hands! Picture 22: Moving the V-Glass plate with both hands V-Glass Plate Installation...
  • Page 24 BE4-V2B C.2.1 Assembly Material The V-Glass plate is delivered with a set of assembly material in a plastic bag. Picture 23: Assembly material The set contains: • Five Allen head screws • Five washers • Three T-nuts • A plastic cover While assembling the V-Glass plate carrier four screws, four washer, two T-nuts and the plastic cover will be used.
  • Page 25 C.2.2 Preparing steps before assembling Position the Bookeye® 4 with its back side at the edge of the working desk. The lower screws of the group of four screws at the bottom side of the camera neck must be accessible. Picture 24: Screws at scanner's back side Open the book cradle plates to its maximum distance.
  • Page 26 Loosen (do not remove) the four screws of the monitor mount. Picture 26: Screws of monitor mount Unplug the signal cable and the power cable from the monitor. Lift up the monitor and remove it to the front side of the scanner. Remove the cover at the upper side of the camera neck.
  • Page 27 Pull the front side cover at its bottom side in direction to the front of the scanner … Picture 28: Removing camera neck front cover … and remove it from the camera neck. Take the plastic plate from the assembly material. The plastic plate has two predetermined breaking zones.
  • Page 28 C.2.3 Assembling the Balance Weight Carrier Note: It is recommended to assemble the balance weight carrier with two persons! Remove the metal cover from the back side of the balance weight carrier. One person positions the balance weight carrier at the back side of the camera neck. The second person fixes with two screws with washer from the assembly material the carrier at the bottom side of the camera neck.
  • Page 29 Fasten the carrier and the spacer with two screws from the assembly material. Position the balance weight carrier and the distance element at the height of the upper edge of the camera neck. Picture 32: Position of balance weight carrier Picture 32 shows two lines to identify the position of the carrier at the camera neck Fasten the carrier finally with the four Hexagon head screws at the upper side and at the bottom side.
  • Page 30 C.2.4 Assembling the V-Glass Plate Carrier Remove the four T-nuts in the front side of the camera neck. Picture 34: Remove T-nuts Remove the four Hexagon head screws from the front side of the balance weight carrier. Picture 35: Remove Hexagon head screws Page 30 V-Glass Plate Installation...
  • Page 31 Position the V-Glass plate carrier at the front side of the balance weight carrier and fasten it with the four Hexagon heads screws. Picture 36: Fasten the V-Glass plate carrier at the right side Picture 37: Fasten the V-Glass plate carrier at the left side V-Glass Plate Installation Page 31...
  • Page 32 Remove the toggle screw from the middle of the V-Glass plate carrier. Picture 38: Remove toggle screw Position the V-Glass plate over the four slotted screws of the V-Glass plate carrier and insert it from the upside. Picture 39: Inserting V-Glass plate Page 32 V-Glass Plate Installation...
  • Page 33 Fasten the V-Glass plate finally with the four slotted screws to the V-Glass plate carrier. Picture 40: V-Glass plate in final position Use the two small parts from the plastic plate (see Picture 29) to cover the gaps beside the bottom of the camera neck. Picture 41: Plastic parts beside the camera neck V-Glass Plate Installation Page 33...
  • Page 34 Bookeye ® 4 with V-Glass plate Picture 42: Page 34 V-Glass Plate Installation...
