WideTEK
A.9.3

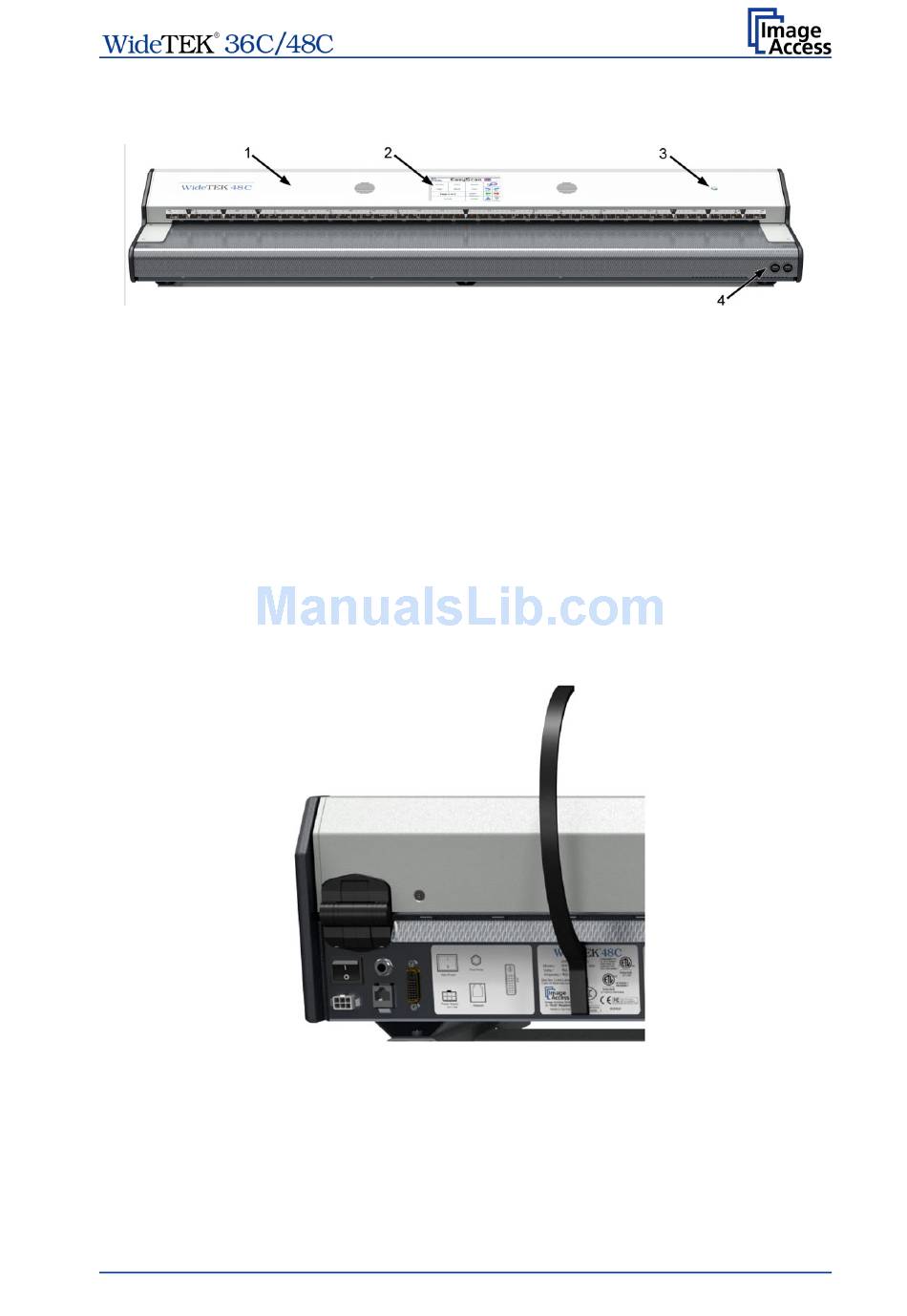

The main components of the WideTEK
1: Upper unit. The upper unit contains the cameras and the paper transport.
2: Touchscreen. The touchscreen shows all menus to set up and control the scanner
3: On/Off button. This button is used to power up the scanner from standby mode and to
power down the scanner to standby mode.
4: USB connectors. Enable the user to connect qualified USB storage media to the
scanner.
WideTEK
A.9.4
Seen from the operators view (i.e. from the front of the scanner), the connectors are
positioned at the right back side of the housing.
Picture 10: WideTEK 48C Main power switch and connectors
A label beside the connectors shows and names each connector.
Manual
® 48C
– Front Side Elements

Picture 9: WideTEK 48C front view

48C
®
are:
® 48C
– Back Side Elements
Page 23
