Take the parts out of the transport box.
WT48C-300: The box with floor stand is replaced by an empty box.
WT48C-300-BDL: Start with paper the output tray, then take out all boxes, the reference
folder and the all small accessories.
Pull up the foam inserts and remove them. Sometimes a little strength is necessary.
The wooden frame can be lifted after removing the foam inserts. Remove it to get access
to the scanner and to the floor stand cardboard box.
Note: High scanner weight. Lift the scanner with two persons from the pallet.
A.8.3

Keeping the Transport Box for later use

All elements used with the transport box can easily be stored.
The wooden frame can be folded. The foam inserts can be placed between the base plate
and the cover plate.
The wooden frame can be place on top of the cover plate.
Manual

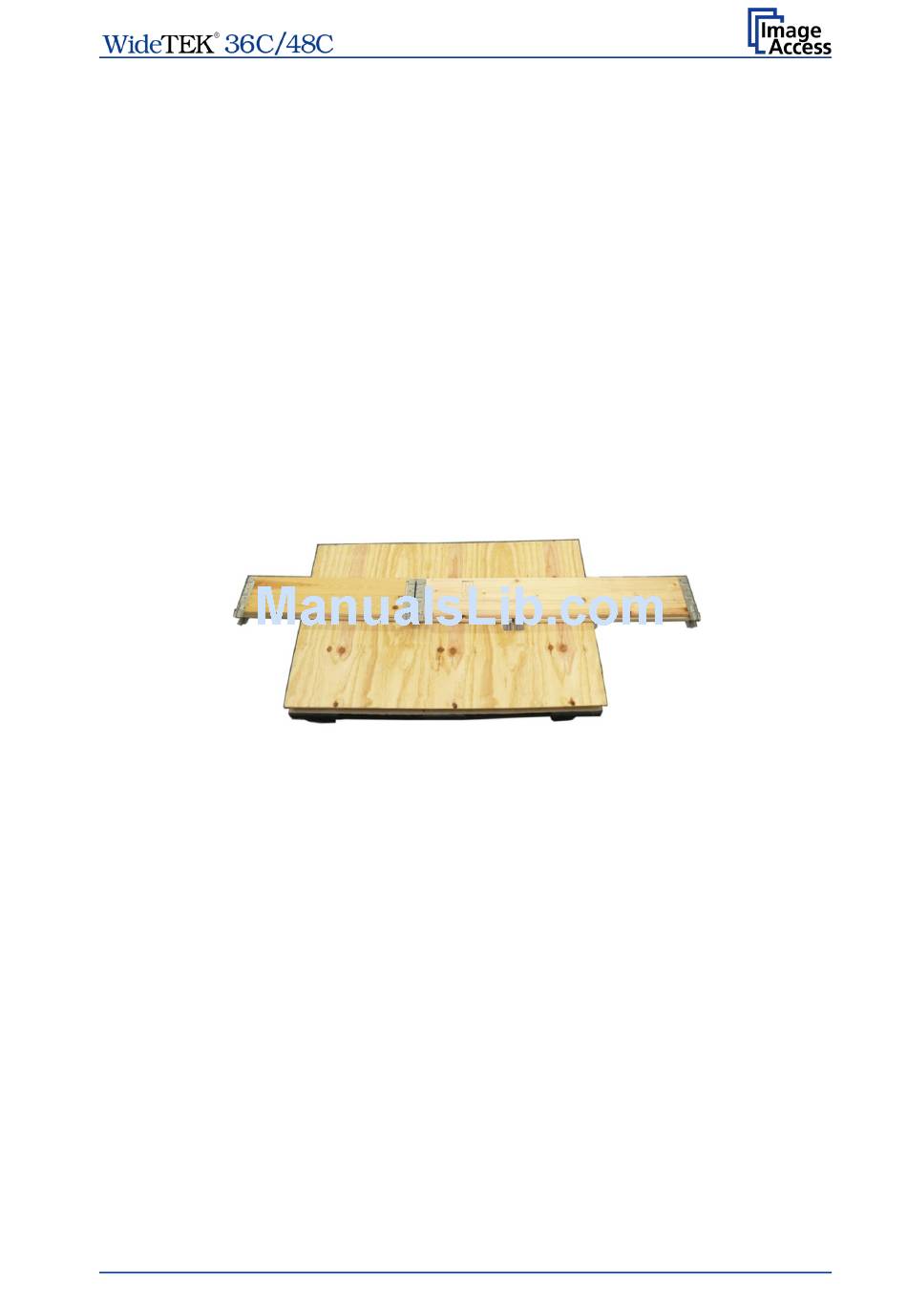

Picture 6: Transport box elements ready to store
