2.14. Fan

The system has a fan cage, including three fan modules and a
single fan module. The instructions in this section include
removal and installation procedures for the fan cage and for the
single fan module. See for reference "System Overview".

Removing a Fan Cage

Prerequisite:
Remove the top cover. See Opening the Top Cover on
page 2-9.

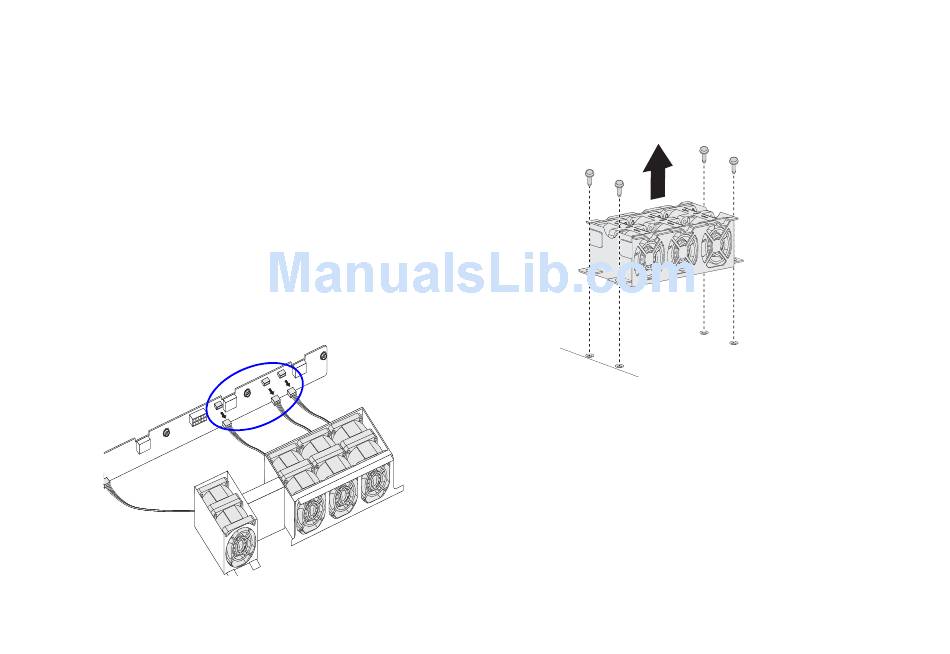

1. Disconnect the fan cable(s).
Disconnecting Cables
2. Remove the screw(s).
Removing Screws
3. Remove the fan cage from the chassis.
2-39
