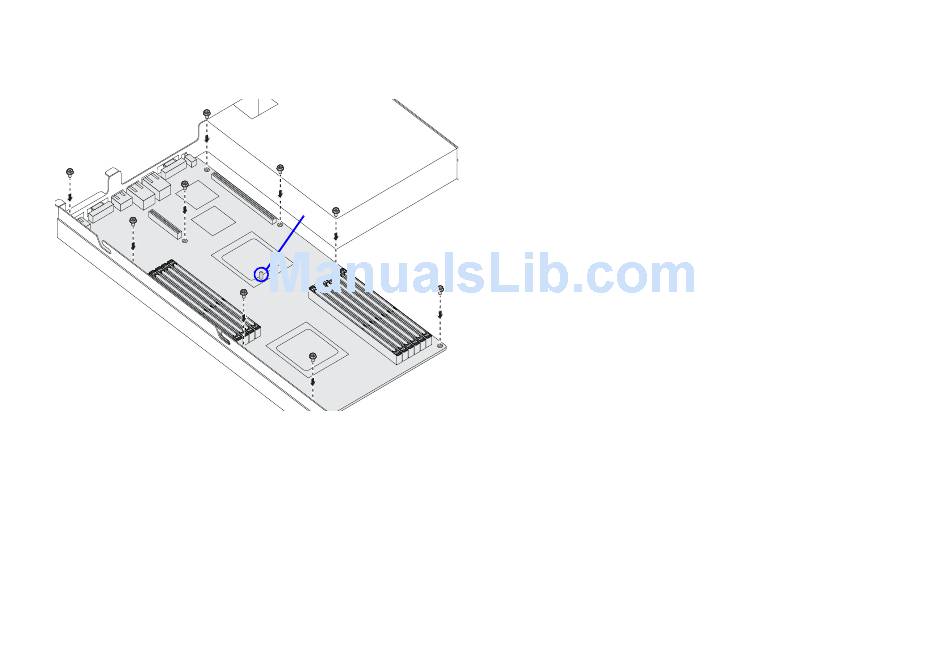

2. Align the mainboard opening with the chassis guide pin
(A).
A
Aligning to the Chassis Guide Pin
3. Secure mainboard to chassis with screw(s).
2-32
